bending connector AKWLJQSL Electric power tools
抗弯连接器AKWLJQSL电力工具
Usage: put the line connected with the steel wire rope, can through various line tackle
用途：钢丝绳放线时连接用，能通过各种放线滑车

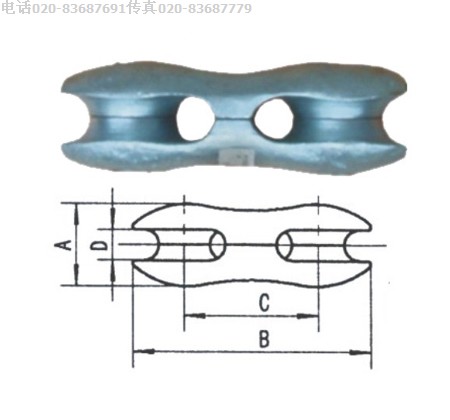

Figure 8 bending connector 8字型抗弯连接器
|
order No
产品编号
|
Model 型号
|
Size 主要尺寸(mm)
|
Rate Load
额定负荷
(kN)
|
weight
重量
(kg)
|
|
A
|
B
|
C
|
D
|
|
817101
|
AKWLJQSL8-3
|
32
|
94
|
60
|
15
|
30
|
0.8
|
|
817102
|
AKWLJQSL8-5
|
42
|
116
|
70
|
18
|
50
|
1.5
|
|
817103
|
AKWLJQSL8-8
|
50
|
141
|
85
|
24
|
80
|
2
|

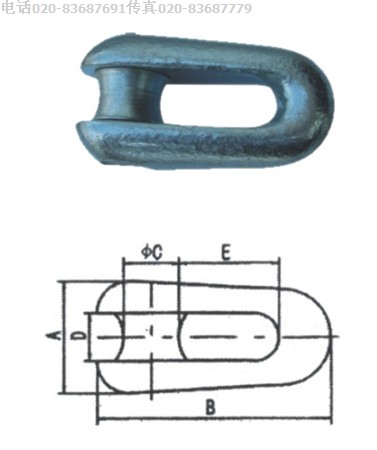

U type bending connector U型抗弯连接器
|
order No
产品编号
|
Model 型号
|
Size 主要尺寸(mm)
|
Rate Load
额定负荷
(kN)
|
weight
重量
(kg)
|
|
A
|
B
|
C
|
d
|
D
|
E
|
|
817111
|
AKWLJQSLU-1
|
36
|
68
|
18
|
10
|
14
|
29
|
10
|
0.2
|
|
817112
|
AKWLJQSLU-3
|
37
|
76
|
20
|
12
|
17
|
31
|
30
|
0.22
|
|
817113
|
AKWLJQSLU-5
|
50
|
96
|
23
|
18
|
19
|
42
|
50
|
0.6
|
|
817114
|
AKWLJQSLU-8
|
56
|
110
|
28
|
20
|
22
|
50
|
80
|
0.8
|
|
817115
|
AKWLJQSLU-10
|
59
|
126
|
30
|
22
|
26
|
54
|
100
|
1.2
|
|
817116
|
AKWLJQSLU-13
|
61
|
134
|
32
|
24
|
27
|
56
|
130
|
1.3
|
|
817117
|
AKWLJQSLU-15
|
63
|
138
|
37
|
27
|
28
|
58
|
150
|
1.4
|
|
817118
|
AKWLJQSLU-25
|
80
|
178
|
44
|
32
|
35
|
72
|
250
|
3.0
|

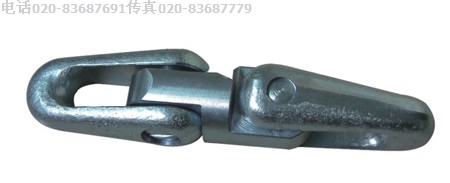

AKWLJQSLU-3Z combined bending connector AKWLJQSLU-3Z组合式抗弯连接器
Product number: 817112A.
- rated load: 30kN
- wire rope diameter: diameter of 16mm (max)
Weight: 0.6kg.
□ 产品编号:817112A
□ 额定负荷:30kN
□ 重量：0.6kg
