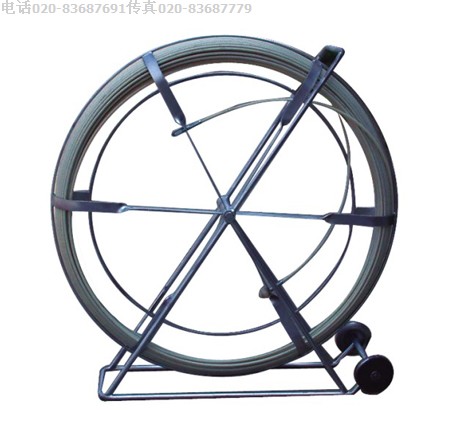

Glass steel threader perforator 玻璃钢穿线器穿孔器
Product number: 821421 CSP1.
Glass steel punch with a diameter of 11mm perforation
Product number: - 821422 CSP2 glass steel punch with a diameter of 13mm perforation
Product number: - 821423 CSP3 glass steel punch with a diameter of 15mm perforation
Description: - for additional length should be in the contract, Naka A.
-
Uses: used in pipeline of power cable (cable) laying of communication industry.
- composition: glass steel punch composed of perforated strips and trolley, the two have perforated nylon guide head M12 threaded connections and traction rings, 100m standard length of perforation.
- features: perforation strip adopts the FRP pultrusion core material, the outer coating of special engineering plastics, having a smooth, high strength, good weather resistance characteristics.
□ 产品编号：821421 CSP1
采用φ11mm的穿孔条
□ 产品编号：821422 CSP2玻璃钢穿孔器采用φ13mm的穿孔条
□ 产品编号：821423 CSP3玻璃钢穿孔器采用φ15mm的穿孔条
用途：用于电力通信行业管道电缆（光缆）敷设施工。
□ 组成：玻璃钢穿孔器由穿孔条和小车组成，穿孔条两头各有M12螺纹连接的尼龙导向头和牵引环，穿孔条的标准长度为100m。
□ 特点：穿孔条采用FRP拉挤成型芯材，外覆特种工程塑料，具有光滑、强度高、耐候性好的特点。

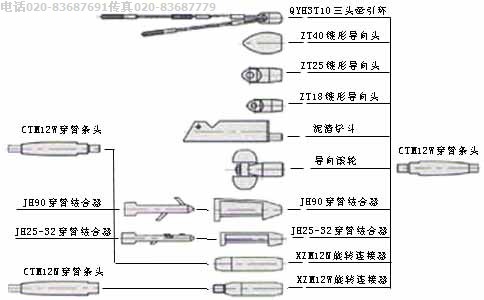

Wearing tube series tools
Product overview: wear tube series tool is used for pipe cable (cable) in laying before the pipeline can be dredged, inspection, cleaning and conveying rope
The preparatory work required tools. The cable (cable) can go through in pipeline laying in. Wearing the tools include: wear a head tube, glass fiber wear
Tube, conical guide head, a guide roller, the sludge bucket, wear pipe joint, three head traction ring, rotary connector series tools.
And main technical parameters:
The following table accessories for glass steel punch selection
穿管系列工具
·产品概述：穿管系列工具是用于管道电缆（光缆）在敷设前对管道进行疏通、检查、清理以及传送牵引绳等
准备工作所需的工具。使电缆（光缆）在管道中敷设时能顺利通过。穿管工具包括：穿管条头、玻璃纤维穿
管条、锥形导向头、导向滚轮、泥渣铲斗、穿管结合器、三头牵引环、旋转连接器等系列工具。
·主要技术参数：
下表附件可供玻璃钢穿孔器配套选用：
| order No |
Name |
Structure characteristics |
Use |
| 产品编号 |
产品名称 |
结构特征 |
用途 |
| 821671 |
CTM12W穿管条头 head of tube |
一般为外螺纹M12 External thread |
Tube connections with other functional components of the glass fiber to wear, with inner threads and outer threads of two kinds of structure, and wear tube strips bonded together
是玻璃纤维穿管条与其他功能部件的连接件，有内螺纹和外螺纹两种结构，与穿管条粘接在一起
|
| 821672 |
CTM12N穿管条头 head of tube |
内螺纹M12 internal thread |
| 821681 |
glass fiber tube wear 玻璃纤维穿管条 |
Outer diameter 外径φ11 |
玻璃纤维芯，外包塑料层，穿通管道用 Glass fiber core, plastic coating layer, through pipeline |
| 821691 |
ZT18锥形导向头conical guide head |
conical guide head锥形头部18，M12 |
Lead glass fiber tube wear strip through the pipeline, there are holes ZT18, ZT25 conical head, and can be used to Phi Phi 10mm 7 or the traction rope passes through the pipeline at the same time
引导玻璃纤维穿管条通过管道，ZT18、ZT25锥形头部上有孔，需要时可与φ7或φ10mm牵引绳同时穿过管道
|
| 821692 |
ZT25锥形导向头 conical guide head |
conical guide head锥形头部25，M12 |
| 821693 |
ZT40锥形导向头conical guide head |
conical guide head锥形头部40，M12 |
| 821701 |
DXL60导向滚轮guide roller |
Circumcircle外接圆φ60，double roller 双轮，M12 |
Guide tube wear a turn or the end of the tube end communicated to Qi Department
引导穿管条通连转弯或管末端末对齐处
|
| 821711 |
NC100泥渣铲斗sludge bucket |
Closed valve,封闭活门，φ60，内螺纹M12 internal thread
|
For lines of legacy sludge or other small objects
用于清除管道内遗留泥渣或其他小物件 |
| 821721 |
QYH3T10三头牵引环QYH3T10 three head traction ring |
Through the smallest diameter φ90，M12
最小通过直径φ90，M12
|
At the same time pulling up to 3 pipe through a pipe or cable
可同时牵引最多3根子管或光缆通过管道
 three head traction ring 三头牵引环
|
| 821731 |
JH25/32穿管结合器 Wearing tube binding device |
diameter of a pipe管道直径φ25-32，M12 |
Respectively with two tube wear strip is connected with both ends of the pipeline, from wear, combined with the device in the pipeline together to the end, can increase traction, a conduit and cable length is enough wear tube combined with
分别与两穿管条连接，从管道两端穿，结合器在管道中结合在一起，即可向一端牵引，增加一次穿管和电缆敷长度 穿管结合器 Wearing tube binding device |
| 821732 |
JH90穿管结合器Wearing tube binding device |
diameter of a pipe管道直径φ90，M12 |
| 821741 |
XZM12W旋转连接器
Rotary connector
|
Outer diameter外径φ25，外螺纹M12 external thread |
For the two tube wear a head are respectively as internal, external thread connection
用于两穿管条头分别为内、外螺纹的连接 |
| 821742 |
XZM12N旋转连接器
Rotary connector
|
Outer diameter外径φ25，内螺纹M12 internal thread |
For the two tube wear a head for the transition external thread connection
用于两穿管条头都为外螺纹的过渡连接 |
The sludge bucket using NC100 method NC100泥渣铲斗使用方法
Connector CTM12W crimped tube wear strip (male M12) with inner screw threads of M12 joint of NC100 sludge bucket connection can use
压接好穿管条的接头CTM12W(外螺纹M12) 与NC100泥渣铲斗的内螺纹M12接头 连接 就可以使用
|
产品编号
|
名称规格
|
结构特征
|
用 途
|
| order No |
Name |
Structure characteristics |
USE |
|
821425
|
ZT25锥形导向头conical guide head
|
conical guide head锥形头部φ25
|
guide perforation through the pipeline, ZT25 head with a hole, the traction rope to pull the connection can be used for
引导穿孔条通过管道,ZT25头部有孔,可用于牵引绳的回牵连接接  锥形导向头 conical guide head
|
|
821426
|
ZT40锥形导向头conical guide head
|
conical guide head锥形头部Φ40
|
|
821427
|
DXL60导向滚轮guide roller
|
Circumcircle外接圆Φ60
|
引导穿孔条通过转弯和管子未对齐处,
Guide through turning tube perforation and unjustified at,
|
