Earth pressure over /ACSR/ protective sleeve of electric tool
地线/ACSR/压接管保护套电力工具

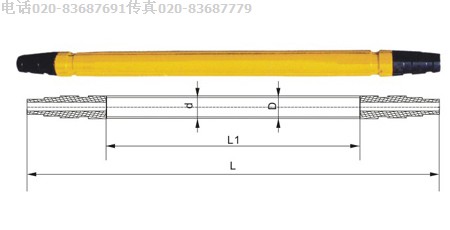

Pressure over the protective sleeve 压接管保护套
Usage: apply to put the steel core aluminum stranded wire pressure in the exhibition on pipe protection, so that it can be through a pulley, not appear the bending aluminum pulley in use. If you need special specifications can be customized
用途：适用于在展放钢芯铝绞线时对导线压接管进行保护，使其能须利通过滑车，不出现弯曲 适用铝滑车使用。若需特殊规格可定制
|
order No
编号
|
Model 型号
|
Size 主要尺寸(mm)
|
Application of ground wire
适用地线
|
|
D
|
L
|
d
|
L1
|
|
817213
|
DXYJBHJ55G
|
φ30
|
450
|
φ24
|
280
|
GJ50、GJ55
|
|
817214
|
DXYJBHJ70G
|
φ30
|
510
|
φ24
|
340
|
JLB65、GJ70
|
|
817215
|
DXYJBHJ80G
|
φ34
|
510
|
φ27
|
340
|
GJ80
|
|
817216
|
DXYJBHJ95G
|
φ34
|
585
|
φ27
|
415
|
JLB95
|
|
817217
|
DXYJBHJ100G
|
φ38
|
590
|
φ28
|
390
|
LGJ50/30、GJ100
|
|
817218
|
DXYJBHJ120G
|
φ40
|
660
|
φ30
|
440
|
GJ120、JLB120
|
|
817219
|
DXYJBHJ150G
|
φ45
|
850
|
φ37
|
530
|
|

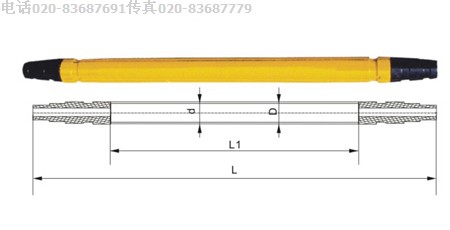

ACSR pressure over the protective sleeve ACSR压接管保护套
|
order No
编号
|
Model
型号
|
Size 主要尺寸(mm)
|
Application of wire
(max)
|
|
D
|
L
|
d
|
L1
|
|
817201
|
ASCRYJ240B
|
φ45
|
850
|
φ38
|
530
|
LGJ240/55
|
|
817202
|
ASCRYJ300B
|
φ51
|
940
|
φ43
|
600
|
LGJ300/50
|
|
817203
|
ASCRYJ400B
|
φ57
|
995
|
φ47
|
655
|
LGJ400/50
|
|
817204
|
ASCRYJ500B
|
φ68
|
1080
|
φ56
|
740
|
LGJ500/65
|
|
817205
|
ASCRYJ630B
|
φ83
|
1180
|
φ63
|
800
|
LGJ630/55
|
|
817206
|
ASCRYJ720B
|
φ83
|
1196
|
φ63
|
816
|
LGJ720/50
|
Explanation: DL/T758-2001
1 is suitable for the connection hardware (hydraulic pressure over lap) regulations;
□
说明：1．适用于DL/T758-2001
2．如压接管尺寸与标准不同，应在合同中说明接续管尺寸
note: if different size requirements, should be specified in the contract.
□ 说明：如有不同尺寸要求，应在合同中说明。
2 if the pressure pipe size and the different standards, should be stated in the contract connection pipe size
Ground pressure over the protective sleeve
地线压接管保护套
