cable Trailer 电缆线盘拖车电力工具
|
|
Model 型号
|
Applicable wire disc 适用线盘
|
(mm)
|
shape size 外形尺寸
(mm)
|
weight 重量
（kg）
|
|
Width 宽度
(mm)
|
Diameter直径
(mm)
|
weight重量
(kg)
|
|

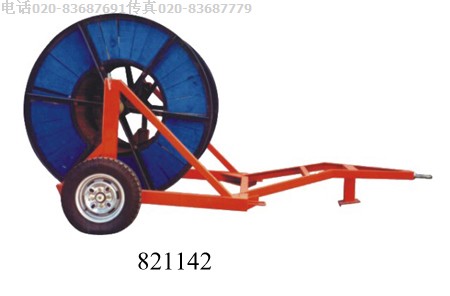

821142
|
ADLTCXLT5
|
1120
|
φ1600
|
500
|
φ65
|
2870×1700×1130
|
175
|
|
821151
|
ADLTCDLG2
|
850
|
φ1400
|
2000
|
φ65
|
2300×1700×1200
|
600
|
|
821152
|
ADLTCDLG4
|
1500
|
φ2400
|
4000
|
φ65
|
3645×2500×1500
|
800
|
|
821153
|
ADLTCDLG8A
|
1600
|
φ3200
|
8000
|
φ89
|
4560×2708×1857
|
1200
|
|
821154
|
ADLTCDLG12
|
2360
|
φ3600
|
12000
|
φ95
|
6000×3370×2770
|
2500
|
- Uses: mainly used for transport of short distance cable tray, but also can be used as the wire disc during the construction of payoff stand.
- features: 1.21142 products for the overall turnover structure, the other is a hydraulic cylinder operation line tray lifting structure.
2.21154 for the double tyre layout, trailer structure can be split, with convenient transportation.
Description: the maximum towing speed - 15km/h.
2. 21154为双轮胎布置，拖车结构可分拆，以方便运输。
□ 说明：最大拖行速度15km/h。
