| double floodlight双头泛光工作灯具照明GTZM4100灯泡配件 |
|

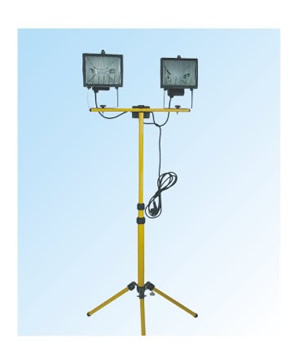

GTZM4100 double floodlight working lamp
GTZM4100 双头泛光工作灯 灯泡配件
|
 |
Product description:
Applicable places: it is widely used in electric power industry, railway, metallurgy, mines, ports, railway bridge and culvert, tunnel, municipal wait for mobile use, emergency lighting.
Performance characteristics:
- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, to ensure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding, high temperature resistance, corrosion resistance;
- the lamp head is composed of a movable lifting tripod support, can be in 2 meters within the height of manual lifting;
- can freely rotate holder, can be in one direction or in the multi direction lighting, lighting;
- cap and tripod respectively by special canvas bag, durable and easy to carry;
- both by city power to work long hours, can buy generator power supply, improve the application range of the product;
Reflector imported high - pure reflection mirror aluminum, high efficiency;
Adopt the advanced foreign technology of tempered glass, good anti impact performance;
- adopt halogen light source of high light efficiency, long life, and can realize instant start |
|
产品说明:
适用场所：广泛适用于电力、铁路、冶金、矿山、港口、市政、铁路隧道、桥涵等行业作移动、应急照明使用。
性能特点：
●外壳采用进口优质铝材，压铸成型，并采用多重防震结构设计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作
●表面采用高科技静电喷涂技术，防腐蚀性好，附着力强；
●密封圈采用进口优质硅橡胶，挤压后经二次硫化成型，耐高温、抗腐蚀；
●灯头由可移动的可升降三角架支撑，可以在2米的高度内手动升降；
●可以自由转动灯头，既可以朝一个方向照明，也可以朝多方向照明；
●灯头与三角架分别由特制的帆布袋包装，经久耐用、携带方便；
●既可采用市电长时间工作，也可选购发电机组供电，提高了产品的应用范围；
●反射器采用进口高纯镜面铝，反射效率高；
●采用国外先进技术钢化玻璃，抗冲击性能好；
●采用高光效、长寿命的卤素光源，可实现瞬间启动
2.Main Technical Parameters
|
No
序号
|
parameter name 参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage额定电压
|
V
|
220
|
|
2
|
|
卤素灯泡Halogen bulb |
2×300
|
luminous flux 光通量
|
lm
|
2×9500
|
|
average service life平均使用寿命
|
h
|
2000
|
|
3
|
size外形尺寸
|
long长×wide宽×high高
|
mm
|
180×180×170
|
|
4
|
weight重量
|
kg
|
4
|
|
5
|
shell protection class 外壳防护等级
|
IP65
|
|
6
|
anti corrosion class防腐等级
|
WF2
|
|
7
|
|
M
|
2
|
|
|
|
| |
|
|
|
|
|
|
|
