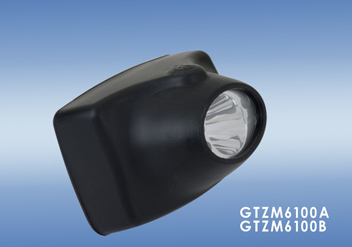

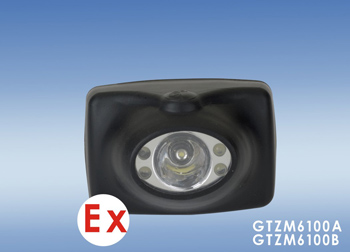

GTZM6100 multifunctional energy-saving intelligent headlamp (explosion-proof)

Place to be used: GTZM6100 intelligent headlamp is widely applicable to the electric power industry, railway, metallurgy, mines, ports, railway bridge and culvert, tunnel, municipal wait for mobile use, emergency lighting.

GTZM6100多功能节能智能头灯(防爆型）

适用场所：GTZM6100智能头灯广泛适用于电力、铁路、冶金、矿山、港口、市政、铁路隧道、桥涵等行业作移动、应急照明使用。

Performance characteristics:

Fully in accordance with the national explosion-proof products standards of design and production, can be used in various inflammable and explosive places of work;

- the main light source adopts imported super power, 1W ultra high brightness white LED solid-state light source, high luminous efficiency, the average service life of up to 100000 hours, can achieve the long-term effects of maintenance free, visible distance up to 1000 meters; with lighting and remote signal warning function

- auxiliary light source adopts 4 super brightness LED light source

- the smart chip control constant current output from the battery, ensure the brightness stability of LED, ensure the quality of lighting; the output circuit is provided with an intelligent reverse polarity protection, can avoid the customer when replacing the batteries, battery polarity installed but lead to LED damage

- this product uses large capacity memory free battery has high energy, long life, low self discharge rate, economy and environmental protection; and the battery there have been preventing the intelligent charge, over discharge protection device; when the discharge capacity is achieved when the protection voltage, automatically cut off the output current intelligent protection board, an external voltage at the measuring cell for 0V that is, the battery is completely protected; plug the charger intelligent protection device is activated, start charging. In the circuit due to prevent over charging protection intelligent device, full of electricity is automatically cut off the power supply; therefore, the effective protection of the battery, prolongs the service life

Adopt the cold light source, low heat, small working current, safe, and reliable in various places of work;

- dual purposes, can be used as a normal lighting, but also increases the signal function;

Structure design of - precision, excellent impact resistant material and fine surface treatment, waterproof, dustproof, corrosion resistance;

- the small volume, the whole light weight type A lamp does not exceed 190 grams, type B lamp is not more than 140 grams, but wearing, handheld or link it use in the body, light and flexible

Adopt the intrinsically safe circuit design, the circuit safety package in the light source cavity. The clearance shall be in accordance with the GB3836.3-2000 provisions of article 4.3, the creepage distance shall conform to the provisions of GB3836.3-2000 4.4;

Adopt the high strength, high willfulness plastic shell for lamps, when the quality of hammer 1KG 0.4 meters from a vertical drop impact test results accord with the GB3836.1-2000<< shell, the national explosion-proof electrical standards > > Article 23.4.3.1 and 23.4.7.1 of the Ordinance, and meet when samples from 1 meters high fell to the concrete, the test results in line with the provisions of GB3836.1-2000<< national explosion-proof electrical standards > > Article 23.4.3.2 and 23.4.7.1.

性能特点：

●完全按照国家防爆产品标准设计和生产，可在各种易燃易爆工作场所使用；
●主光源采用进口超大功率、超高亮度的1W白光LED固态光源,光效高，平均使用寿命长达10万小时，可达到长期免维护的效果，可视距离达1000米；具有照明和远距离信号警示功能

●辅助光源采用4颗超亮度LED光源

●采用智能芯片控制电池恒流输出，确保LED的亮度稳定性，保证照明质量；输出电路设有智能反极性保护，可避免客户更换电池时，电池极性装反而导致LED的损坏

●本产品采用超大容量的高能量无记忆电池，寿命长，自放电率低，经济环保；且电池内有智能型的防止过充、过放保护装置；当放电容量达到保护电压时，智能保护板自动切断输出电流，此时测量电池的外部电压为0V，即电池已完全被保护；插上充电器则激活智能保护装置，开始充电。在电路中由于有防止过充电保护的智能装置，充满电则自动切断电源；因此，有效的保护了电池，延长了使用寿命

●采用冷光源，发热量低，工作电流小，可在各种场所安全、可靠的工作；

●一灯两用，既可作正常照明使用，又增加了信号功能；

●精密的结构设计，优质的抗冲击材料和精细化表面处理，防水、防尘、耐腐蚀性好；

●体积小，整灯重量A型灯具不超过190克，B型灯具不超过140克，可头戴、手持或挂靠在身上使用，轻便灵活

●采用本质安全电路设计，将电路安全封装在光源腔。电气间隙应符合GB3836.3-2000中4.3条规定，爬电距离应符合GB3836.3-2000中4.4条的规定；

●采用高强度、高任性塑胶做为灯具壳体，当采用质量为1KG的种锤从0.4米高垂直下落冲击外壳，试验结果符合GB3836.1-2000<<国家防爆电气标准>>中第23.4.3.1条及23.4.7.1条的规定,并满足当样品从1米高跌落到混凝土地上，试验结果符合GB3836.1-2000<<国家防爆电气标准>>中第23.4.3.2条及23.4.7.1条的规定。

technical parameter技术参数

序号	parameter name 参数名称		unit 单位	value数值
1	rate voltage额定电压		V	3.7
2	rate capacity A type lamp 额定容量A型灯具		Ah	4
	rate capacity B type lamp 额定容量B型灯具		Ah	2
3	LED main light source主光源	power功率	W	1
		Continuous discharge time 连续放电时间	h	A》13～B》8
		work current工作电流	mA	350
		average life平均使用寿命	h	≥100000
4	LED auxiliary light source辅助光源	power功率	w	4x0.07
		Continuous discharge time 连续放电时间	h	A》36～B》26
	LED auxiliary light source辅助光源	work current 工作电流mA		70
	LED auxiliary light source辅助光源	average life平均使用寿命h		≥100000
5	shell protection class 外壳防护等级			IP65
6	charging time of A type lamp充电时间A型灯具			6~8h
7	charging time of B type lamp充电时间B型灯具			4~6h
8	Battery life cycles 电池寿命循环次数			约1000次
9	Size 外形尺寸mm			77x26x81

GTZM6100 multifunctional energy-saving intelligent headlamp (common type)

Applicable places: it is widely used in electric power industry, railway, metallurgy, mines, ports, railway bridge and culvert, tunnel, municipal wait for mobile use, emergency lighting.

GTZM6100多功能节能智能头灯(普通型）

适用场所：广泛适用于电力、铁路、冶金、矿山、港口、市政、铁路隧道、桥涵等行业作移动、应急照明使用。

Performance characteristics:

- the main light source adopts imported super power, 1W ultra high brightness white LED solid-state light source, high luminous efficiency, the average service life of up to 100000 hours, can achieve the long-term effects of maintenance free, visible distance up to 1000 meters; with lighting and remote signal warning function

- auxiliary light source adopts 4 super brightness LED light source

- the smart chip control constant current output from the battery, ensure the brightness stability of LED, maintain the lighting effect; the output circuit is provided with an intelligent reverse polarity protection, can avoid the customer when replacing the batteries, battery polarity installed but lead to LED damage

- this product uses large capacity memory free battery has high energy, long life, low self discharge rate, economy and environmental protection; and the battery there have been preventing the intelligent charge, over discharge protection device; when the discharge capacity is achieved when the protection voltage, automatically cut off the output current intelligent protection board, an external voltage at the measuring cell for 0V that is, the battery is completely protected; plug the charger intelligent protection device is activated, start charging. In the circuit due to prevent over charging protection intelligent device, full of electricity is automatically cut off the power supply; therefore, the effective protection of the battery, prolongs the service life

Adopt the cold light source, low heat, small working current, safe, and reliable in various places of work;

- dual purposes, can be used as a normal lighting, but also increases the signal function;

Structure design of - precision, excellent impact resistant material and fine surface treatment, waterproof, dustproof, corrosion resistance;

- the small volume, the whole light weight type A lamp does not exceed 190 grams, type B lamp is not more than 140 grams, but wearing, handheld or link it use in the body, light and flexible
