Product description: 产品说明:

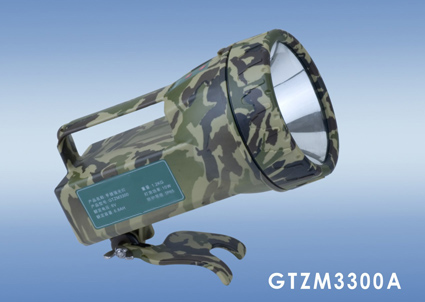

GTZM3300A portable light

Widely applicable to the electric power industry, railway, metallurgy, mines, ports, municipal, public security, traffic police, fire, troops, ships, bridges and culverts, tunnels such as mobile, emergency lighting use.

Performance characteristics of the 1:

- light source adopts a halogen bulbs used in combination with ultra high brightness white LED, high light efficiency, visible distance up to 1200 meters; with lighting and remote signal indicator function;

- the smart chip control constant current output from the battery, ensure the brightness stability of lighting and LED lighting, guarantee the quality; the output circuit with intelligent protection, when the battery power to the specified value, automatically cut off the discharge light and working light, the remaining power can also ensure that the LED lighting is more than 15 hours, can make the staff working in the end after sufficient time safe return;

- this product uses large capacity memory free battery has high energy, long life, low self discharge rate, economy and environmental protection; and the battery there have been preventing the intelligent charge and discharge protection device; when the discharge capacity reached voltage protection, automatically cut off the output current intelligent protection board, and prevent over charging protection intelligent device the full power is automatically cut off the power supply; therefore, the effective protection of the battery life;

Adopt the advanced foreign technology of tempered glass, good anti impact performance;

ABS injection molding, excellent seismic performance change - shell structure compact, beautiful light, can be hand-held or shoulder, the operation is simple and convenient;

- good waterproof performance, ensure good performance at high and low temperature and high humidity environment, and can be used in all sorts of environments and climate conditions.

GTZM3300A手提强光灯

广泛适用于电力、铁路、冶金、矿山、港口、市政、公安、交警、消防、部队、船舶、隧道、桥涵等行业作移动、应急照明使用。

1 性能特点：

●光源采用卤素灯泡与超高亮度的白色LED结合使用，光效高，可视距离达1200米；具有照明和远距离信号指示功能；

● 采用智能芯片控制电池恒流输出，确保灯泡及LED的亮度稳定性，保证照明质量；输出电路设有智能保护，当电池电量放到规定值时，自动切断强光与工作光的放电，剩余电量还可确保LED照明达到15小时以上，可使工作人员在工作结束后有足够的时间安全返回；

●本产品采用超大容量的高能量无记忆电池，寿命长，自放电率低，经济环保；且电池内有智能型的防止过充、过放保护装置；当放电容量达到保护电压时，智能保护板自动切断输出电流，同时有防止过充电保护的智能装置，充满电则自动切断电源；因此，有效的保护了电池的使用寿命；

●采用国外先进技术钢化玻璃，抗冲击性能好；

●外壳抗震性能优异的改性ABS注塑成型，结构精巧，美观轻盈，可手提或肩背，操作简单方便；

●防水性能好，在高、低温和高湿度的环境中保证良好性能，并可在各种恶劣环境和气候条件下使用。

2 main technical parameter主要技术参数:

No

序号

parameter name参数名称

unit单位
value数值

1

rate voltage额定电压

V

6

2

rate capacity额定容量

Ah

6.5

3

Halogen lamp light source

卤素灯泡光源

power 功率

W

10

average life平均使用寿命

h

2000

continue charge time

连续放电时间

h

≥3

h

4
LED light source

光源

power功率
w 6x0.15

LED light source

光源

average life平均使用寿命

h

≥100000

continue charge time

连续放电时间

≥45

5

shell protection class 外壳防护等级

IP65

6 charge time充电时间 6~8h

7 Battery life cycles电池寿命循环次数约1000次

8 Outer diameter 外径尺寸mm 118

9 length长度尺寸mm 200

10 weight重量 1.5kg

3 using the method:

1) long by 1 second switch, the realization of the main lamp light illumination, the second press is the realization of LED auxiliary lamp lighting, third long according to light the main light flashing to realize signal lighting;

2) lamps under the handle with a charging socket; when charging, only the corresponding charger output plug can be inserted into the charging socket;

3) red lamp charging charge indicating lamp, after charging, the light will turn green;

4) equipped with adjustable lamp bracket suitable angle for each direction of lighting;

5) a full charge, can use at any time in 1 years; if not placed every six months, supplementary charge about 5 hours is better;

6) when the work light or bright lights in the use process, battery is about to run out, the brightness of the flashlight will be weakened sharply, at this time should stop using working lamp or light, to LED when in use, can be sustained for more than 15 hours.

4 warning:

1) charging or remove the lamp must be in a safe place;

2) after each use should be timely charging.

5 note:

First use should charge for use in corrosive environments immediately after the wiping surface.

6 quality assurance:

Company in accordance with the ISO9001:2000 international quality system operation, products 3 years warranty; in 3 years, any fault product under normal use, the company is responsible for free repair; you can contact with our technical quality department, we will provide high quality and efficient service for you.

3 使用方法:

1）长按1秒开关，则实现强光主灯照明，第二次按下则实现LED辅灯照明，第三次长按至强光主灯闪烁则实现信号照明；

2）灯具手柄下方有充电插口；充电时，只需将充电器的输出插头对应插入充电插口即可；

3）灯具充电时有红色充电指示灯，充电结束后，指示灯将转为绿色；

4）灯具配有支架可调整合适角度供各各方向照明使用；

5）一次充满电后，可在1年内随时使用；若长期放置不用，每隔半年补充充电5小时左右为佳；

6）当工作灯或强光灯在使用过程中，池电量即将耗尽时，电筒的光亮度会急剧减弱，此时应停止使用工作灯或强光，转为LED使用时，还能持续15小时以上。

4 警告:
1）充电或拆卸灯具必须在安全场所进行；
2）每次使用完后应及时进行充电。

5 注意事项:

首次使用应先充电，在腐蚀性环境中使用后应立即揩拭表面。

6 品质保证:

公司按照ISO9001：2000国际质量体系作业，产品实行3年保用；在3年内，产品正常使用下出现任何故障，由本公司负责免费维修；您可与我司技术品质部联系，我们将为你提供优质、快捷的服务。
