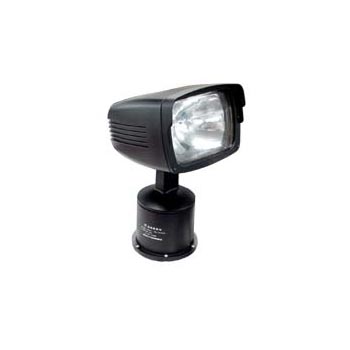

According to the work site lighting needs on about, free to adjust the angle of rotation, and the speed is adjustable, to 68 degrees elevation angle of 30 degrees, down, left and right rotation can reach 440 degrees, can quickly achieve all-round, multi angle lighting.

能根据工作现场的照明需要上下、左右自由调节旋转角度，且速度可调，向上仰角68度，向下俯角30度，左右旋转均可达到440度，可快速实现全方位、多角度照明。

1, fixed lamps

A: direct installation corresponding lamps flange fixed installation body hole position in drilling, and waterproof sealing ring is additionally arranged between the body and installed in the flange, and the elastic cushion, flat cushion on M5 * 40 bolt, the bolt passes through the fixing hole again and at the other end to tighten the nut.

B installation: installed base in the corresponding base installation body is fixed by a rivet after drilling, hole position is coated with glass glue, then M5 * 25 bolts according to the a method will be fixed in the mounting flange lamp base corresponding holes can be.

C strong magnetic fixed seat (optional): when in use, first the magnetic force transferred to the closed position, and then the magnetic block is placed in the ferromagnetic metallic objects need to be installed, and then will be transferred to the open position by magnetic force, elastic pad and cushion on M5 * 25 bolt, the three hooks are uniformly fixed in the lamp the lower end of the corresponding magnetic seat position, after put into the proper rotation, around, until the locating pin spring into the positioning hole to lock.

2, the power use

A car battery: 2 terminal power supply output line respectively on the battery negative pole bolt (brown, blue is connected with the positive pole is connected with the negative pole), then tighten the bolt, and then the connector fixing seat (magnet adsorption type) will be a connector plug fixed in the appropriate position, use the type P connector tighten;

B power converter (optional): the converter plug socket in the city electricity (light on: normal), then plug converter with P type connectors of the connector plug lamp and tighten;

C 24V backup battery (optional): the lamp output plug type P connector plug and tighten with the battery group.

3, use the remote

First of all to the remote controller into 2 5 batteries, then the remote slide switch is pushed to the "open" position, according to the text prompts and arrow button operation, can be in 30 meters within the lighting switch, adjust the direction of the lamp cap.

4, the use of metal box (optional)

A a small metal box for storing lamp use, and equipped with straps, easy to carry.

B large metal box: can be stored for a power converter, and the magnetic seat, lamps, both sides and above have the handle, with the mobile.

1、灯具固定
a 直接安装：对应灯具法兰盘固定孔位在安装体上钻孔，然后在法兰盘与安装体之间加装防水密封圈，并将弹垫、平垫套在M5×40的螺栓上，再将螺栓穿过固定孔并在另一端拧紧螺母即可。
b 安装底座：对应安装底座在安装体上钻孔，用铆钉固定后在孔位上涂上玻璃胶，再用M5×25的螺栓按a方法将灯具的法兰盘固定在安装底座对应孔位上即可。
c 强力磁性固定座（选购件）：使用时，先将磁力调到关闭位置，再将磁座放置在需要安装的铁磁性金属物体上，然后将磁力调到开启位置，用弹垫和平垫套在M5×25的螺栓上，将三个挂钩均匀固定在灯具的下端，对应磁座上的位置放入后，左右适当旋转，直至定位销弹入定位孔锁住即可。
2、电源使用
a 汽车电瓶：将电源输出线的2个接线端子分别套在电瓶的正负极螺栓上（棕色接正极、蓝色接负极），然后拧紧螺栓，再用连接器固定座（磁铁吸附式）将连接器插头固定在适当位置上，使用时将P型连接器对接旋紧即可；
b 电源转换器（选购件）：将转换器的插头插在市电的插座上（灯亮即正常），再将灯具的P型连接器的插头与转换器的连接器插头对接并旋紧即可；
c 24V备用电池组（选购件）：将灯具的P型连接器插头与电池组的输出插座对接并旋紧即可。
3、遥控器使用
首先给遥控器装入2节5号电池，再将遥控器滑动开关推至“开启”位置，根据文字提示和箭头指示操作按钮，可在30米内开关照明、调节灯头方向。
4、金属箱（选购件）使用
a 小金属箱：专供存放灯具使用，并配有背带,携带方便。
b 大金属箱：可同时存放电源转换器、磁座、灯具，两侧和上方均有提手，便以移动。

1, transport should be equipped with lamps installed in the inside of the carton, and add the foam cushioning.

2, the remote controller after use, be sure to slide the switch to the "off" position, so as to avoid static current caused by cell loss, not a long time, the battery should be taken out.

3, when changing bulbs, must be power off.

4, the use of 24V power supply, such as the need to lengthen the connection wire, must use the 2.5mm2 cable; cable can not be extended using 12V power supply.

5, in normal use, the surface has a certain temperature rise of lamps, is a normal phenomenon; the transparent member center temperature is higher, do not touch.

1、运输时须将灯具装在所配备的纸箱内,并加装泡沫减震。
2、遥控器使用完毕后，务必将滑动开关推至“关闭”位置，以免静态电流造成电池损耗，长期不用时，应将电池取出。
3、更换灯泡时,必须将电源断开。
4、使用24V电源时，如需加长连接电线，必须采用2.5mm2的电缆线；使用12V电源时电缆线不可加长。
5、正常使用时,灯具表面有一定的温升,属正常现象；透明件中心温度较高,请勿触摸。

/Company products 3 years warranty (bulb is guaranteed for 6 months). In 3 years, any fault product under normal use, the company is responsible for free repair.

公司产品实行3年保用（灯泡保用6个月）。在3年内，产品正常使用下出现任何故障，由本公司负责免费维修。
