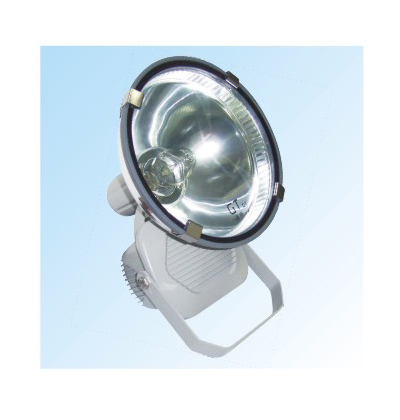

GTZM9100 shockproof cast light bulb accessories SW7510 shockproof cast light

Apply to (electric power, railway, metallurgy, mines, ports, municipal and other sectors) plant, station, venues and railway tunnel, bridge and culvert for lighting use.

GTZM9100 防震投光灯 灯泡 配件   SW7510防震投光灯

适用于（电力、铁路、冶金、矿山、港口、市政等行业）厂区、场站、场馆及铁路隧道、桥涵等作投光照明使用。





Apply to (electric power, railway, metallurgy, mines, ports, municipal and other sectors) plant, station, venues and railway tunnel, bridge and culvert for lighting use.

Performance characteristics:

- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, to ensure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;

- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;

- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding; sealing and surface coating treatment special, to ensure that the lighting in humid, high temperature and other harsh environment of corrosion, rust;

- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;

Reflector imported high - pure reflection mirror aluminum, high efficiency;

Adopt the advanced foreign technology of tempered glass, good anti impact performance;

- the gas discharge light source, high luminous efficiency, long life, power factor greater than 0.9, long life.

适用于（电力、铁路、冶金、矿山、港口、市政等行业）厂区、场站、场馆及铁路隧道、桥涵等作投光照明使用。

性能特点:

●   外壳采用进口优质铝材，压铸成型，并采用多重防振结构设计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；

●   表面采用高科技静电喷涂技术，防腐性好，附着力强；

●   密封圈采用进口优质硅橡胶，挤压后经二次硫化成型；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；

●   进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封；

●   反射器采用进口高纯镜面铝，反射效率高；

●   采用国外先进技术钢化玻璃，抗冲击性能好；

●   采用高光效、长寿命的气体放电光源, 功率因数大于0.9，寿命长。

 main technical parameter 主要技术参数:

No 序号	parameter name参数名称				unit单位	value数值
1	rate voltage额定电压				V	220
2	light source光源	HPS 气体放电灯 gas discharge light	150W	luminous flux光通量	lm	16000
				average service life平均使用寿命	h	28500
			70W	luminous flux光通量	lm	7500
				average service life平均使用寿命	h	28500
		MH气体放电灯gas discharge light	150W	luminous flux光通量	lm	15000
				average service life平均使用寿命	h	10000
			70W	luminous flux光通量	lm	7000
				average service life平均使用寿命	h	10000

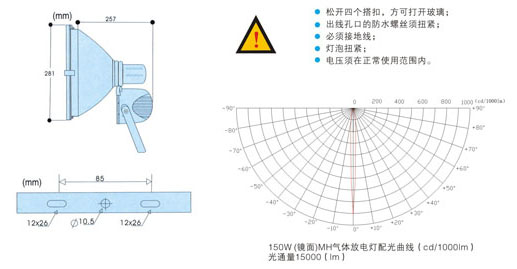

3	size外形尺寸		long长×wide宽×high高		mm	φ281×257
4	weight重量				kg	4.5
5	shell protcetion class外壳防护等级					IP65
6	anti corrosion class防腐等级					WF2
7	distance ratio距高比					2.2





Method of use:

1) will be fixed transparency four snap open, remove the transparent part, with the wire core is 1.5mm2, the three core cable sheath corrosion, high temperature resistance is connected in the socket on the electrical box, then the bulb is arranged on the lamp holder (pay attention to good contact, assembly in place), covered with a transparent piece, card (note the buckle on the transparent part of the seal on the contact is good, smooth and reliable);

2) will support the luminaire in installation position with the bolt, adjust the irradiation angle of light.

The matters needing attention:

1) waterproof outlet orifice must tighten the nut;

2) must be reliable grounding;

3) bulbs must be tightened;

4) voltage must be within the specified range of use.

Quality assurance:

Companies in strict accordance with the ISO9001:2000 quality management system operation, products 7 years warranty (bulb is guaranteed for 1 years); the warranty period, any fault product under normal use, and the local contact our service center, the company is responsible for free repair, we will provide you with high quality, efficient service in 24 hours.

使用方法:

1） 将固定透明件的四个卡扣打开，卸下透明件，用线芯为1.5mm2，外皮防腐蚀、耐高温的三芯电缆接在电气箱内的插座上，再将灯泡装在灯座上（注意接触良好，装配到位），盖上透明件，卡上卡扣（注意透明件上的密封条接触良好、平整可靠）；

2） 将灯具上的支架用螺栓固定在安装位置，调整好灯光照射角度。

注意事项:

1）出线孔口的防水螺母必须扭紧；

2）必须可靠接地；

3）灯泡必须扭紧；

4）电压须在规定的使用范围内。



品质保证:

公司严格按照ISO9001：2000质量管理体系作业，产品实行7年保用（灯泡保用1年）；保用期内，产品正常使用下出现任何故障，可与我司当地服务中心联系，由本公司负责免费维修，我们将为你在24小时内提供优质、快捷的服务。
