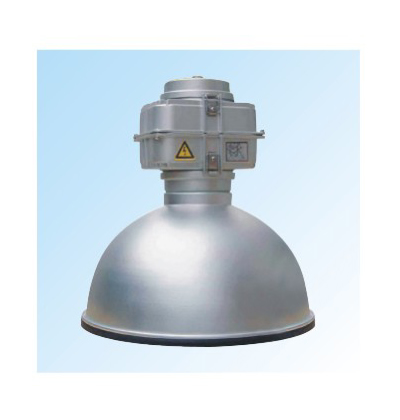

GTZM9400 light high lamp SW7400 GTZM9400强光高顶灯灯泡配件

Apply to (electric power, railway, metallurgy, mines, ports, municipal and other sectors) plant, station, venues for projector light use.

Performance characteristics of the 1:

- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, to ensure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;

- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;

- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding, high temperature resistance, corrosion resistance; sealing and surface coating treatment special, to ensure that the lighting in humid, high temperature and other harsh environment of corrosion, rust;

- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;

Reflector imported high - pure reflection mirror aluminum, high efficiency;

Adopt the advanced foreign technology of tempered glass, good anti impact performance;

- the gas discharge light source, high luminous efficiency, long life, power factor greater than 0.9, lasts more than 10000 hours.

产品说明:

适用于（电力、铁路、冶金、矿山、港口、市政等行业）厂区、场站、场馆等作投光照明使用。

1 性能特点:

● 外壳采用进口优质铝材，压铸成型，并采用多重防振结构设计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；

● 表面采用高科技静电喷涂技术，防腐性好，附着力强；

● 密封圈采用进口优质硅橡胶，挤压后经二次硫化成型，耐高温、抗腐蚀；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；

● 进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封；

● 反射器采用进口高纯镜面铝，反射效率高；

● 采用国外先进技术钢化玻璃，抗冲击性能好；

● 采用高光效、长寿命的气体放电光源, 功率因数大于0.9，寿命长达10000小时以上。

2 main technical parameter 主要技术参数:

No 序号	parameter name 参数名称				unit单位	value数值
1	rate voltage额定电压				V	220
2	light source 光源	HPS 气体放电灯gas discharge light	250	luminous flux光通量	lm	27500
			250	average service life平均使用寿命	h	28500
			400	luminous flux光通量	lm	50000
			400	average service life平均使用寿命	h	28500
		MH 气体放电灯gas discharge light	250	luminous flux光通量	lm	21000
			250	average service life平均使用寿命	h	10000
			400	luminous flux光通量	lm	36000
			400	average service life平均使用寿命	h	12000

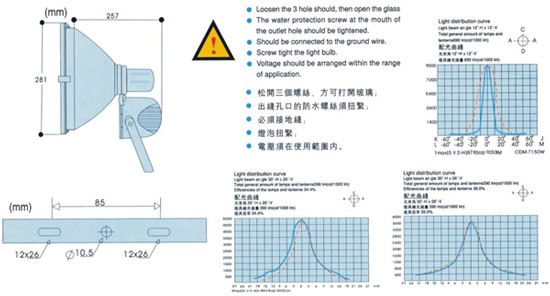

3	size外形尺寸		long长×wide宽×high高		mm	φ421×550
4	weight重量				kg	8.5
5	shell protection class外壳防护等级					IP65
6	anti corrosion class防腐等级					WF2
7	distance rate距高比					2.7

3 using the method:

1) open the electrical box, cable core is 1.5mm2, the three core cable sheath corrosion, high temperature resistance is connected in the socket of electric box, and installed an electric appliance box;

2) will be fixed transparency four snap open, remove the transparent part, and then the lamp bulb is arranged on the lamp holder (pay attention to good contact, assembly in place), covered with a transparent piece, the card buckle (note the transparent parts of the seal on the contact is good, smooth and reliable).

4 note:

1) waterproof outlet orifice must tighten the nut;

2) must be reliable grounding;

3) bulbs must be tightened;

4) voltage must be within the specified range of use.

5 quality assurance:

Company in accordance with the ISO9001:2000 international quality system operation, products 6 years warranty (bulb is guaranteed for 1 years); in 6 years, any fault product under normal use, the company is responsible for free repair; you can contact with our technical quality department, we will provide high quality, efficient service for you

3 使用方法:

1）打开电器箱，用线芯为1.5mm²，外皮防腐蚀、耐高温的三芯电缆接在电气箱内的插座上，并装好电器箱；

2）将固定透明件的四个卡扣打开，卸下透明件，再将灯泡装在灯座上（注意接触良好，装配到位），盖上透明件，卡上卡扣（注意透明件上的密封条接触良好、平整可靠）。

4 注意事项:

1）出线孔口的防水螺母必须扭紧；

2）必须可靠接地；

3）灯泡必须扭紧；

4）电压须在规定的使用范围内。

5 品质保证:

公司按照ISO9001：2000国际质量体系作业，产品实行6年保用（灯泡保用1年）；在6年内，产品正常使用下出现任何故障，由本公司负责免费维修；您可与我司技术品质部联系，我们将为你提供优质、快捷的服务。
