Power lightning protection grounding device of the box bar
The classification of the genus: lightning series > power lightning protection device
Number: 920
Specifications: TRABTECH
Type: grounding device and a box body
Power provides a series of electrical earthing accessories, such as
Equipotential busbar
Earthing bar
Connect cable
Meet the insulation plastic shell protection class IP65.
The 5 bit or 6 bit connection terminal
Surge protection accessories
Also provides a number of accessories, can be used for the identification and connection of surge protection device.
Equipotential connection
Equalizing connection equipotential connection and grounding system is an important part of the surge voltage protection system.
Equalizing tasks such as potential connection is in the event of static and dynamic voltage coupling and is directly or through the discharger is completed all conductive parts buildings maintained at ground potential constant. Therefore, equipotential connection should be as close as possible to the equipotential network. So proposal in has direct connection between pressure and other system components are the main potential connection system installation cross shaped conductive connector.
For all the ground cable and equipotential connection cable, equipotential busbar connection point as the center should be installed.
Should be in the planning stages prior consideration of equipotential connection. This can be from the technology allows the system to the most effective and economic.
Equipotential busbar

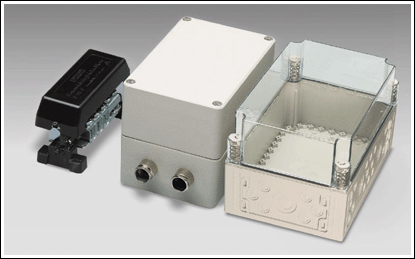

Lightning protection box
For some applications, surge protection device must be installed separately from other parts of the system. That is to say, without the power distribution box, terminal box or can not use a distribution box, terminal box.
Provides a feasible solution for lightning protection box TRABTECH series for most of this kind of problem. TRABTECH lightning protection box size selection should be easy to install, can pack assembly piece protective device or a small protective device. They are commonly used to protect small system and isolation device.
TRABTECH lightning protection box reliability design, protection class up to IP65. Therefore, even in harsh environmental conditions such as outdoor or industrial environment, also can install surge voltage protection device.

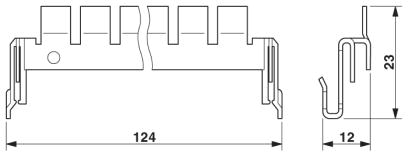

Ground row CT1-10

  power防雷接地装置箱体汇流条

均压等电位连接 均压等电位连接及其接地系统的连接是浪涌电压保护系统的一个重要组成部分。 均压等电位连接的任务是在发生静态和动态电压耦合并且是直接或通过放电器完成时将建筑物中所有导电部件维持在恒定的接地电位。为此，均压等电位连接应尽量接近均压等电位网络。所以建议在已直接连接主均压等电位连接系统的系统部件之间安装十字形导电接头。 对于所有接地电缆和均压等电位连接电缆，等电位汇流条应作为中心连接点安装。 应在规划阶段事先考虑均压等电位连接。这样可从技术上使系统最有效且最经济。

等电位汇流条

防雷箱箱体 对于某些应用，电涌保护器必须与系统其它部件分开安装。也就是说，无配电箱、端子箱或者不能使用配电箱、端子箱。 TRABTECH 系列的防雷箱箱体为大多数这类问题提供了可行的解决方案。选择的 TRABTECH防雷箱箱体尺寸应便于安装，可分装单件保护装置或小型保护装置组件。它们一般用于保护小型系统和隔离的设备。 设计的TRABTECH 防雷箱箱体牢靠，保护等级高达IP65。因此即使在恶劣的环境条件如室外或工业环境下，也可安装浪涌电压保护装置。     接地排 CT1-10
