lightning protector for power supply type surge

 A surge protector lightning protector for power supply of arrester
The classification of the genus: lightning series > arrester lightning protection device power surge protector
Number: 923
Specifications: ARRESTER
Type: power surge protector
ARRESTER power supply surge protective device based on VDE0675, EN61643-1, IEC61643-1 and other standard Seiko manufacturing, all products have a strict quality requirements, accept the monitoring of UL, CSA, KEMA, VE and other quality supervision institutions in the world, in order to ensure high quality first-class constant!
According to rules, the main protection of low voltage power supply system in 1000V under Lightning Overvoltage of switching operation, electrostatic, electromagnetic interference and limit the possible transfer of surge current overvoltage, implementation of surge protection for power supply equipment.

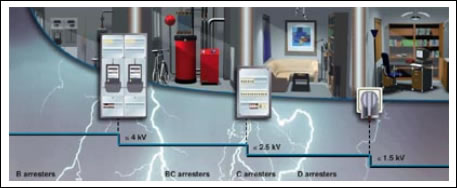

Divided into three categories for the traditional ARRESTER power surge protector:
Power level I: the main distribution cabinet is mainly installed wire entrance's (disc); discharge lightning surge current; through the 10/350 Mu s simulation impact test. ARRESTER is a global technology leader in the categories of products, from 1980 to 2003 period, our scientists will gap discharge technology development of the 7 generation, the protection level from the original 4KV down to 900V, decoupling range down to 0 metres and prevent energy with the "blind spot" problem, made the greatest contribution to the development of discharge clearance.
Power level II: the distribution of electric cabinet is mainly installed in buildings (disc); discharge lightning surge current limited and the vast majority of switching surge; through the 8/20 Mu s simulation impact test. The products are mainly using zinc oxide device to realize. ARRESTER is in the lead in this kind of product safety protection above on: anti aging short-circuit self disconnecting function, remote function, anti error plug function, protection against electric shock, hot swap function, free connection bridging function etc..
Power level III: mainly installed special protection need within the building in front of the equipment; discharge switch operation surge current and various induced surge Co.; through the 1.2/50 Mu s and 8/20 s simulation impact test. This kind of product is ARRESTER carefully for factory automation, office automation system of sensitive equipment specially designed has the advantages of no in the incomparable technology advantage: automatic grounding function, prevent ageing short-circuit self disconnecting function, remote function, anti error plug function, protection against electric shock, hot swap function etc..


所属分类：防雷系列 > arrester防雷器电源电涌保护器
编　　号：923
规　　格：ARRESTER
型　　号：电源类电涌保护器

　　ARRESTER电源类电涌保护器依据VDE0675、EN61643-1、IEC61643-1等标准精工制造，所有产品均有严格的质量要求，在全球范围接受UL、CSA、KEMA、VE等质量监督机构的监控，以确保一流的高质量始终不变!
　　依据规程，主要保护1000V以下低压电源系统在雷击、开关操作过电压、静电等电磁干扰时转移电涌电流并限制可能的过电压，实现对电源设备的电涌防护。


　　传统的ARRESTER电源电涌保护器分为三个大类：
　　电源I级：主要安装导线入户处的主配电柜(盘)内;泻放雷击电涌电流;通过10/350μs模拟冲击测试。ARRESTER是该类产品全球技术领导者，从1980年到2003年期间，我司的科学家将间隙放电技术发展了7代，将保护电平从最初的4KV降到了900V，退耦距离降到0米并防止能量配合的"盲点"问题，为放电间隙的发展作出了最大贡献。
　　电源II级：主要安装建筑物内各分配电柜(盘)内;泻放有限的雷击电涌电流和绝大部分开关电涌;通过8/20μs模拟冲击测试。该类产品主要采用氧化锌器件实现。ARRESTER在该类产品的自身安全保护上领先一筹：防老化短路自分断功能、遥信功能、防错插功能、防触电保护、热更换功能、免接线桥接功能等等。
　　电源III级：主要安装建筑物内各需要特殊保护的设备前;泻放有限的开关操作电涌电流和各种感应电涌;通过1.2/50μs和8/20μs模拟冲击测试。该类产品是ARRESTER精心为工厂自动化、办公自动化等系统敏感设备特别设计，具有无于伦比的技术优势：自动接地功能、防老化短路自分断功能、遥信功能、防错插功能、防触电保护、热更换功能等等。





技术参数 POWERSET BC/3+1/FM
额定工作电压UN:
 		 400V
防雷器设定电压Uc：
 		 440 V 50/60 HZ
雷击测试电流Iimp(10/350)μs电流峰值：
 		 50 kA
电量：
 		 25 As
特征能量：
 		 625 kJ/Ω


保护电平UP：L-N/L-PE/N-P
≤0.9 kV/ ≤1.5 kV/ ≤1.5 kV

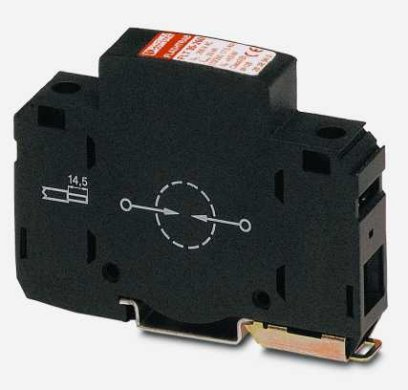

 型号   FLT 35-260





型号   FLT 35-260
技术参数 值(范围)
IEC类别/VDE 规格等级/EN类型 1 / B / T1
额定工作电压UN: 230 V
防雷器设定电压Uc ： 440 V
雷击测试电流Iimp(10/350µs) 电流峰值： 35 kA
根据IEC 1024 电量： 17.5 As
根据IEC 1024 特征能量： 305 kJ/Ω
额定放电电流In（8/20）µs： 35 kA
保护电平UP： ≤4 kV
无前置熔断器时的截断后续短路电流值： 1.5 kA/440V/
3 kA/260V
前置熔断器： 125 A gL
响应时间ta： ≤100 ns
漏电流： 10 µA
温度范围： -40 ℃ to +85 ℃
保护等级，符合IEC 60529/EN 60 529： IP20
绝缘外壳材料： PA 6.6-FR
阻燃等级，符合UL： V0
螺纹: M 5
扭矩: 4.5 Nm
检验标准: IEC 61 643-1：1998-02，pr EN 61 643- 1
检验标准: E DIN VDE 0675 part 6:1989-11/A1:1996-03/A2:1996-10
检验标准: UL 1449 ed.2,IEEE C62,IEEE C62.41



FLT-PLUS CTRL

技术参数



FLT-PLUS CTRL-0.9           　　　FLT-PLUS CTRL-1.5          　　　FLT-PLUS CTRL-2.5

FLT-PLUS CTRL-0.9/I         　     　FLT-PLUS CTRL-1.5/I                      　　 FLT-PLUS CTRL-2.5/I



IEC类别/VDE 规格等级/EN类型

1 / B / T1



额定工作电压UN:

230 V...277V             400V                        400V



放雷器设定电压Uc ：

330 V 50/60Hz    440 V 50/60Hz    440 V 50/60Hz



雷击测试电流Iimp(10/350µs) 电流峰值：

50 kA                        50 kA                       50 kA



根据IEC 1024 电量：

25 As                        25 As                       25 As



根据IEC 1024 特征能量：

625 kJ/Ω                625 kJ/Ω                625kJ/Ω



额定放电电流In（8/20）µs：

50 kA                       50 kA                       50 kA



保护电平UP：

≤0.9 kV                  ≤1.5 kV                   ≤2.5 kV



无前置熔断器时的截断后续短路电流值：

50 kA/400V               50 kA/400V              50 kA/400V



前置熔断器：

250 A gL                  250 A gL                   250 A gL



响应时间ta：

≤1µs                       ≤1µs                        ≤1µs



漏电流：

≤0.1mA;≤2.5mA     ≤0.1mA;≤3mA      ≤0.1mA;≤3mA



温度范围：

-40 ℃ to +85 ℃



保护等级，符合IEC 60529/EN 60 529：

IP 20



绝缘外壳材料：

PBT/PA-F



阻燃等级，符合UL：

V0



螺纹：



M 6



扭矩：



8 Nm



检验标准：



IEC 61 643-1：1998-02，pr EN 61 643-1

E DIN VDE 0675 part 6:1989-11/A1:1996-03/A2:1996-10

UL 1449 ed.2,IEEE C62,IEEE C62.41



Arrester first stage lightning protection device

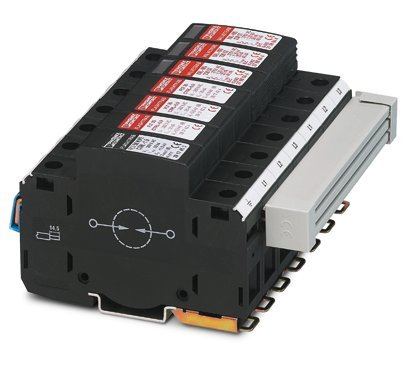

2858467 AEC combined lightning protection device POWERSET BC / 31-100 / FM
12816881 first class power supply lightning protection device FLT 35 / 3 way flow 35KA (San Xiang)
22817482 first class power supply lightning protection device FLT 35 / 3 + 1 through flow 35KA (San Xiang)
32838940 first class FLT 35-260 power supply lightning arrester through flow 35KA (Dan Xiang)
42816904 first class power supply lightning protection device FLT 50 N / PE through flow 50KA (N-E)
52838160 first class FLT 100-260 power supply lightning arrester through flow 100KA (Dan Xiang)
62809717 first class FLT 25-400 power supply lightning arrester through flow 25KA
72748603 first class FLT 60-400 power supply lightning arrester through flow 60KA
82816386 first class power supply lightning protection device FLT-PLUS flow 50KA
9 first class power supply lightning protection device FLT 25-400 / 3 + 1 through flow 50KA
102856317 first class power supply lightning protection device FLT 35 / 3 + 1 CTRL-0.9 / I through 35KA (three-phase flow with lamp)
112856304 first class power supply lightning protection device FLT 35 / 3 CTRL-0.9 / I through 35KA (three-phase flow with lamp)
122817411 first class power supply lightning protection device FLT CTRL-0.9 35 flow 35KA (Dan Xiang)
132817424 first class power supply lightning protection device FLT 35 CTRL-0.9 / I through flow 35KA (single phase, with the indicator lamp)
142817453 first class power supply lightning protection device FLT 50 N / PE CTRL-1.5 50KA (N-E) flow
152818643 first class FLT-PLUS CTRL-0.9 power supply lightning arrester through flow 50KA, residual pressure 0.9KV
162818960 first class power supply lightning protection device FLT-PLUS CTRL-0.9 / I 50KA through flow, residual pressure 0.9KV
Phoenix power level second lightning protection device
175772061 power second level lightning protection device VAL-MS 320 / 1 + 1 through flow 40KA single-phase 8 / 20us, voltage 320V
185772074 power second level lightning protection device VAL-MS 320 / 1 + 1-FM as above, with remote communication
195772029 power second level lightning protection device VAL-MS 230 / 1 + 1 through flow 40KA single-phase 8 / 20us, voltage 275V
205772032 power second level lightning protection device VAL-MS 230 / 1 + 1-FM as above, with remote communication
215772045 power second level lightning protection device VAL-MS 230 IT / 1 + 1 through flow 40KA single-phase 8 / 20us, voltage 385V
225772058 power second level lightning protection device VAL-MS 230 IT / 1 + 1-FM as above, with remote communication
232838209 power second level lightning protection device VAL-MS 230 / 3 + 1 through flow 40KA three-phase 8 / 20us
242858548 power second level lightning protection device VAL-MS 230 IT / 3 + 1 through flow 40KA three-phase 8 / 20us
252838199 power second level lightning protection device VAL-MS 230 / 3 + 1 FM flow 40KA (with remote signal of three-phase 8 / 20us)
262858551 power second level lightning protection device VAL-MS 230 IT / 3 + 1-FM through flow 40KA (with remote communication) three-phase 8 / 20us
272858564 power second level lightning protection device VAL-MS 320 / 3 + 1 through flow 40KA three-phase 8 / 20us
282858577 power second level lightning protection device VAL-MS 320 / 31-FM through flow 40KA three-phase 8 / 20us
29 DC 48V lightning protection device VAL-MS 60 way flow 40KA (without the remote signal)
302817987 power second level lightning protection device F-MS 12 way flow 40KA (N-E)
312817974 power second level lightning protection device F-MS 12 / FM through flow 40KA (N-E, take away the letter)
Phoenix power level third lightning protection device
322858357 power third level lightning protection device PT 2-PE / S-230AC through 10KA, single phase flow
332839389 power third level lightning protection device CBT-4MS through flow 5KA, 4 hole
342762100 power third level lightning protection device MT-4PE-230AC through 6.5KA, three-phase flow
34 power third level lightning protection device CBT-SCHUKO through 6.5KA, three-phase flow
Phoenix signal lightning arrester
2839541 feeder lightning CF-UB-280DC-SB-SET belt joint
2818148 feeder lightning protection device CN-UB-280DC-SB N connector
2809490 2M line lightning protection device CN-UFB-5DC/E-LAN
2782300 2M line lightning protection device C-UFB-5DC/E
2782313 C-UFB-24DC/E
2838555 ISDN CTM ISDN plug-in type lightning arrester
2748276 ISDN lightning protection device D-TR1/ISDN-A/RJ45-BB RJ45
2838539 ADSL/ CTM 1x2-110AC phone line
2838513 DDN CTM 1x2-24DC
2838610 CTM ground plane CTM 10-MAG
2765547 CTM ground plane CT 1-10-ES
2818795 telephone line lightning protection device D-FM-A/RJ45-BB RJ45 interface
2838937 analog telephone signals MT-2FM-RJ12 2 interface (RJ12 interface)
2858043 DDN/ frame relay PT3-HF-12DC-ST plug, working voltage of 12V.
2856113 DDN/ frame relay PT 1x2-BE PT1 * 2 base
2818973 Ethernet lightning protection device D-LAN-A/RJ45-BS RJ45 interface
2838050 wide area network lightning protection device D-DS1-A/RJ45-BB
The 2749644 wireless transceiver equipment lightning protection device C-RF
2818067 cable lightning protection device CF-TV-30DC-BB F interface
2749631 cable lightning protection device C-TV DIN interface
2762278 RS485 MT-RS485/S
2782601 RS485 D-UFB-485/BS-B
2796118 V.11/RS-422 D-UFB-V11/SB-B
2762773 V.24/RS-232C D-UFB-V24/S-DSUB 9/SB-B

arrester 第一级防雷器
2858467　AEC组合防雷器　POWERSET　BC／3＋1-100／FM
1　2816881　电源第一级防雷器　FLT　35／3　通流量35KA（三相）
2　2817482　电源第一级防雷器　FLT　35／3＋1　通流量35KA（三相）
3　2838940　电源第一级防雷器　FLT　35-260　通流量35KA（单相）
4　2816904　电源第一级防雷器　FLT　50　N／PE　通流量50KA（N-E）
5　2838160　电源第一级防雷器　FLT　100-260　通流量100KA（单相）
6　2809717　电源第一级防雷器　FLT　25-400　通流量25KA
7　2748603　电源第一级防雷器　FLT　60-400　通流量60KA
8　2816386　电源第一级防雷器　FLT-PLUS　通流量50KA
9　电源第一级防雷器　FLT　25-400／3＋1　通流量50KA
10　2856317　电源第一级防雷器　FLT　35／3＋1　CTRL-0.9／I　通流量35KA（三相带指示灯）
11　2856304　电源第一级防雷器　FLT　35／3　CTRL-0.9／I　通流量35KA（三相带指示灯）
12　2817411　电源第一级防雷器　FLT　35　CTRL-0.9　通流量35KA（单相）
13　2817424　电源第一级防雷器　FLT　35　CTRL-0.9／I　通流量35KA（单相，带指示灯）
14　2817453　电源第一级防雷器　FLT　50　N／PE　CTRL-1.5　通流量50KA（N-E）
15　2818643　电源第一级防雷器　FLT-PLUS　CTRL-0.9　通流量50KA，残压0.9KV
16　2818960　电源第一级防雷器　FLT-PLUS　CTRL-0.9／I　通流量50KA，残压0.9KV
