Permanent magnet controller permanent magnet switch driven by permanent magnetic actuator device]    with Short circuit relay protection OEM/ODM

Permanent magnetic actuator YCK380 / YBK220 series permanent magnet switch controller     with Short circuit protection relay protection  OEM/ODM

Mainly used in 10 kv, 35 kv lines in various permanent magnet vacuum contactor, circuit breaker, the reclosing. Closing, break-brake process of permanent magnet switch drive control.







model specifications



YCK380-1 CD single capacitor, one coil, single (double steady state).

Cs YCK380-1 single capacitor, double coil, single (double steady state).

YCK380-2 CD double capacitor, one coil, single (double steady state), which can realize fast, or reclosing.

YCK380-2 cs double capacitor, double coil, single (double steady state), which can realize fast, or reclosing.



YBK220 - double capacitor, double coil, single (double steady state), which can realize fast, or reclosing, quick break, over current zero sequence protection.





Second, the main characteristics



1, integrates the function of capacitor recharge, don't need another distribution should the charging module, power distribution capacity can be used directly.

2, you can use two capacitors, respectively, brake coil to provide power supply operation. Permanent magnetic actuator can be reliable drive, to achieve fast,, or reclosing function.

3, small volume, wide range of operating voltage current DC100-380 - v, DC80 or 160 a, can satisfy the current control of various kinds of permanent magnetic mechanism. Ac input, can recharge 1 ~ 100000 u F energy storage capacitor voltage output. No contact, intelligent control, constant value all parameter set through the 485 bus.

4, start involution, points the minimum voltage setting.

5, has a mouth open all the way into the detection, can according to demand, realize the handcart atresia or other combinational logic functions

6, close break-brake position detection can use proximity switch, also can use the auxiliary contact.

7, close break-brake operations can use local button, ac/dc 220 v active line remote control, communications, 485.

8, the state of the controller can through the indicator light shows, contact output, read the 485 bus.



Three, use matters needing attention



1, it is forbidden to dc panel power and energy storage capacitor polarity reverse polarity, or the closing coil output short or directly with operating power supply positive and negative connection, or you will make the controller is damaged, is responsible for all consequences.

2, the output of the controller power supply is strictly prohibited for other power supply electrical equipment.

3, the controller connection must be reliable, especially close break-brake coil wire, otherwise easy to damage ignition controller.

4, direct use of dc panel power supply, the power supply is the cathode and the original directly connected to the corresponding input terminal of the energy storage capacitor.

5, the controller for a long time close break-brake tests, suggest that not more than three points per minute.





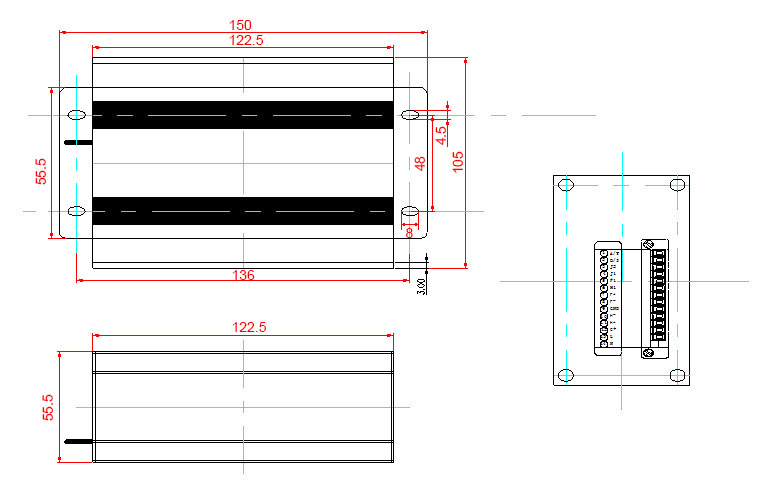

NKY-220P   permanent magnet switch/breaker  actuator mechanism driver magnetic controller

               with  output short circuit protection









NKC capacitor charging module (DC12V module DC 12V~390V DC boost) +

 +DC12V power battery (battery charger) composed of DC UPS



Module name: NKC DC booster module
Input voltage: two input voltage range, (by the jumper PCB on the back of the selection, shipping defaults to 10-32V input)
1, the 8-16V input (for three string lithium battery and 12V application)
2, the 10-32V input (for a wide range of input voltages applied)


Input current: 5A (MAX)


Quiescent current: 15mA (12V + 50V, the output voltage of the current Gao Jing too will increase)


Output voltage:  45-390V, continuously adjustable.


Output current: 0.2A MAX (input, output pressure, the higher the voltage, the output current is small)


Output power: 40W (peak 70W)
Working temperature: -40~+85 degrees (high temperature environment to strengthen heat)
Working frequency: 75KHz
Conversion efficiency: 88% (the highest efficiency is related to the input, output voltage, current, pressure)


Short circuit protection. 10A (input output fuse, please do not directly pull the short-circuit arc! Direct short pull arc can damage the rectifying devices, such as to short circuit arc power series please pull resistor)


Overcurrent protection. (the input current is more than 4.5A, reduce the output voltage)


Overvoltage protection:. (output voltage is more than 410V, reduce the output voltage)


Input reverse protection: (non self recovery type, reverse burning fuse, try not to reverse.)


Installation: 4 3mm screws
Wiring: terminal free welding output (with shell welding output)
Module size: length 60mm width 50mm high 22mm
