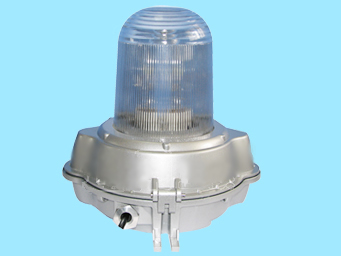

SW7100全方位节能防眩泛光工作灯 灯泡及配件
Applicable places:
Suitable for fixed lighting in electric power, railway, metallurgy, mining, coal, port, municipal and other sectors of various types of plant, workshop, stations and large facilities, venues
Performance characteristics:
- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, make sure it is in the high frequency vibration of long term safety work;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding; sealing and surface coating treatment special, ensure lamps and lanterns in the humid, high temperature and other harsh environment of corrosion, rust;
- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;
- excellent products transparency material, can withstand the sharp change of temperature difference. Through advanced refraction principle of optimization design, soft light, illumination uniformity, no glare, no ghosting, fast heat dissipation;
- the gas discharge light source, high luminous efficiency, long life, power factor greater than 0.9, long life.
适用场所：
适用于电力、铁路、冶金、矿山、煤炭、港口、市政等行业各类厂区、车间、场站和大型设施、场馆等场所作固定照明
性能特点:
● 外壳采用进口优质铝材，压铸成型，并采用多重防振结构设计，确保其在高频震动中长期安全工作；
● 表面采用高科技静电喷涂技术，防腐性好，附着力强；
● 密封圈采用进口优质硅橡胶，挤压后经二次硫化成型；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
● 进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封；
● 优等品透明件选材，可承受急剧的温差变化。经过先进折射原理优化设计，光线柔和，照度均匀，无眩光，无重影，散热快；
● 采用高光效、长寿命的气体放电光源, 功率因数大于0.9，寿命长。
main technical parameter主要技术参数:
|
No序号
|
parameter name参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage额定电压
|
V
|
220
|
|
2
|
light source光源
|
HPS
气体放电灯Gas discharge lamp
|
150W
|
Luminous flux光通量
|
lm
|
16000
|
|
Gas discharge lamp平均使用寿命
|
h
|
28500
|
|
70W
|
Luminous flux光通量
|
lm
|
7500
|
|
Gas discharge lamp平均使用寿命
|
h
|
28500
|
|
MH气体放电灯Gas discharge lamp
|
150W
|
Luminous flux光通量
|
lm
|
15000
|
|
Gas discharge lamp平均使用寿命
|
h
|
10000
|
|
70W
|
Luminous flux光通量
|
lm
|
7000
|
|
Gas discharge lamp平均使用寿命
|
h
|
10000
|
|
3
|
size外形尺寸
|
long长×wide宽×high高
|
mm
|
290×290×278
|
|
4
|
weight重量
|
kg
|
5.2
|
|
5
|
Shell protection grade外壳防护等级
|
IP65
|
|
6
|
anti-corrosion class防腐等级
|
WF2
|
|
7
|
|
4.5
|
Method of use:
- open the electrical box, cable core is 1.5mm2, the three core cable sheath corrosion, high temperature resistance is connected in the socket of electric box, and installed an electric appliance box;
- Fixed transparency four snap open, remove the transparent part, and then the lamp bulb is arranged on the lamp holder (pay attention to good contact, assembly in place), covered with a transparent piece, the card buckle (note the transparent parts of the seal on the contact is good, smooth and reliable);
Support - lamps fixed by bolts in installation position, adjust the irradiation angle of light.
The matters needing attention:
Waterproof nut - outlet orifice must tighten;
- must be reliable grounding;
- bulb screw;
- voltage must be within the specified range of use.
Quality assurance:
Companies in strict accordance with the ISO9001:2000 quality management system operation, products 7 years warranty (bulb is guaranteed for 1 years); the warranty period, any fault product under normal use, and the local contact our service center, the company is responsible for free repair, we will provide you with high quality, efficient service in 24 hours.
使用方法:
● 开电器箱，用线芯为1.5mm2，外皮防腐蚀、耐高温的三芯电缆接在电气箱内的插座上，并装好电器箱；
● 固定透明件的四个卡扣打开，卸下透明件，再将灯泡装在灯座上（注意接触良好，装配到位），盖上透明件，卡上卡扣（注意透明件上的密封条接触良好、平整可靠）；
● 灯具上的支架用螺栓固定在安装位置，调整好灯光照射角度。
注意事项:
● 出线孔口的防水螺母必须扭紧；
● 必须可靠接地；
● 灯泡扭紧；
● 电压须在规定的使用范围内。
品质保证:
公司严格按照ISO9001：2000质量管理体系作业，产品实行7年保用（灯泡保用1年）；保用期内，产品正常使用下出现任何故障，可与我司当地服务中心联系，由本公司负责免费维修，我们将为你在24小时内提供优质、快捷的服务。
