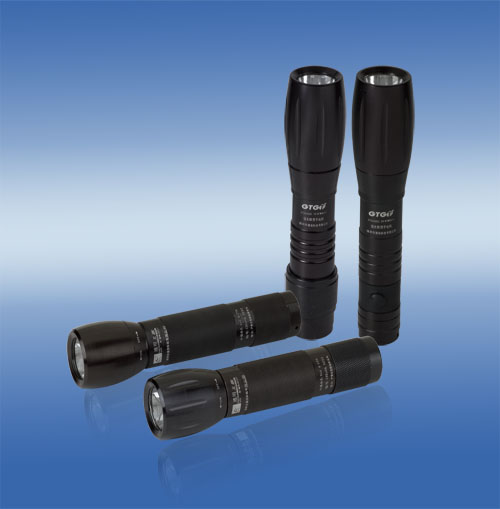

GTZM2600, GTZM2602 energy-saving light miniature torch
GTZM2600 、GTZM2602节能强光微型电筒

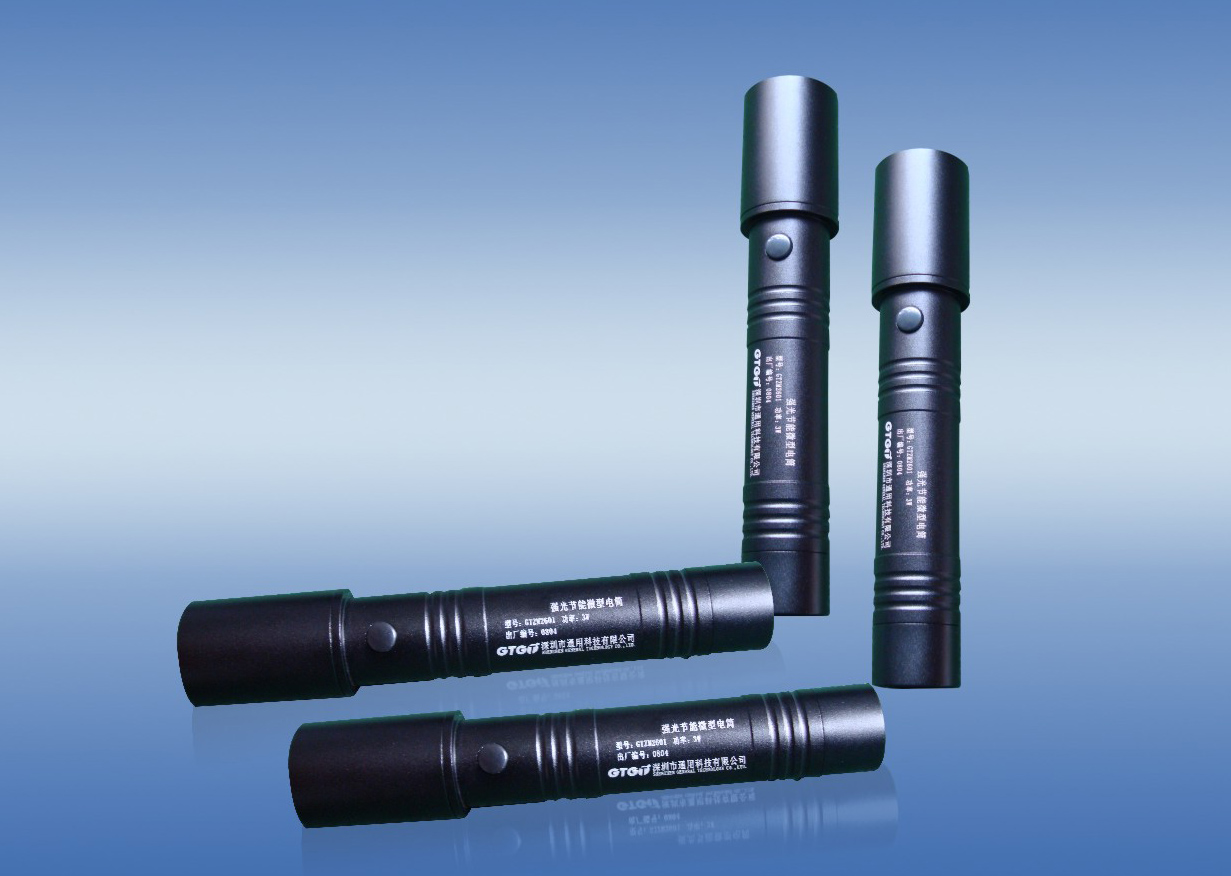

GTZM2601 energy-saving light micro torches (New)
GTZM2601 节能强光微型电筒 (新)
An instruction manual
Widely applicable to the electric power industry, railway, metallurgy, mines, ports, railway bridge and culvert, tunnel, municipal wait for mobile use, emergency lighting.
Performance characteristics of the 1:
- light source with large power, high brightness 1W, 3W white LED, high light efficiency, visible distance up to 1000 meters; with lighting and remote signal indicator function;
- the smart chip control constant current output from the battery, ensure the stability of LED brightness, lighting quality guarantee; the output circuit is provided with an intelligent reverse polarity protection, can avoid the customer when replacing the batteries, battery polarity installed but lead to LED damage;
- this product uses large capacity memory free battery has high energy, long life, low self discharge rate, economy and environmental protection; and the battery there have been preventing the intelligent charge and discharge protection device; when the discharge capacity reached voltage protection, automatically cut off the output current intelligent protection board, an external voltage at the measuring cell for 0V and that the battery is completely protected; plug the charger is activation of intelligent protection device starts charging, and prevent over intelligent device charging protection, full power is automatically cut off the power supply; therefore, effective guarantee of the battery life, can be charged with put;
- the shell is a lightweight aluminum alloy precision machining molding, compact structure, beautiful appearance, can be destroyed in the waist or carried in a pocket, the operation is simple and convenient; the good waterproof performance to ensure good performance at high and low temperature environment, and can be used in all sorts of environments and climate conditions;
Face to face - distance is 1.5 meters, equipped with 1W light flashlight illumination can reach more than 800Lux, equipped with 3W light flashlight illumination can reach more than 1200lux.
使用说明书
1 性能特点：
●采用智能芯片控制电池恒流输出，确保LED亮度的稳定性，保证照明质量；输出电路设有智能反极性保护，可避免客户更换电池时，电池极性装反而导致LED的损坏；
●本产品采用超大容量的高能量无记忆电池，寿命长，自放电率低，经济环保；且电池内有智能型的防止过充、过放保护装置；当放电容量达到保护电压时，智能保护板自动切断输出电流，此时测量电池的外部电压为0V，即电池已完全被保护；插上充电器则激活智能保护装置，开始充电，同时有防止过充电保护的智能装置，充满电则自动切断电源；因此，有效的保证了电池的使用寿命，可随充随放；
●外壳为轻质铝合金精密加工成型，结构精巧，美观大方，可挎在腰间或放在衣袋中携带，操作简单方便；防水性能好，在高、低温环境中保证良好性能，并可在各种恶劣环境和气候条件下使用；
2 main technical parameter主要技术参数:
|
No
序号
|
parameter name参数名称
|
unit单位
|
value数值 |
|
1
|
rate voltage 额定电压
|
V
|
3.7
|
|
2
|
rate capacity额定容量
|
Ah
|
2
|
|
3
|
light source光源
|
power功率
|
W
|
1 / 3
|
|
working voltage工作电压
|
V
|
3.2～4.2
|
|
working current工作电流
|
mA
|
350/700
|
|
average service life
平均使用寿命
|
h
|
≥100000
|
|
4
|
spot Light continuous discharge time强光连续放电时间
|
h
|
6 / 3
|
| |
work Light continuous discharge time
|
h
|
》10 |
|
5
|
charge 充电时间
|
h
|
4～6
|
|
6
|
|
bettery life电池寿命
|
Circulation 循环
|
about1000
|
|
7
|
size外形尺寸
|
Outer diameter外径 Φ
|
mm
|
30
|
|
length 长度
|
158.5
|
|
8
|
|
IP65
|
3 using the method:
1) the lamp cap in the counterclockwise direction tightening can achieve Ming; the lamp cap to clockwise, counterclockwise rotation 1/2 laps, repeated operation can realize light blinking.
2) flashlight tail when charging, charging socket; only the corresponding charger output plug can be inserted into the charging socket;
3) charger built-in charging protection device; when the charger input end connected to power, the indicator light is yellow; the output end of the charger is inserted into the flashlight charging socket, the indicator light turns red, start the normal charging; when the battery is fully charged, the indicator light is converted to a yellow;
4) a full charge, can use at any time in 1 years; if not placed every six months, supplementary charge about 5 hours is better;
5) the use of the process, when the battery is about to run out, the brightness of the flashlight will be weakened sharply, at this time should stop using and charging or replacing battery backup.
4 warning:
1) charging or removing the torch must be in a safe place;
2) after each use should be timely charging.
5 note:
1) to carry or transport, must will cap clockwise to loosen the ring above, to ensure that in the course of transit the battery can not be switched on;
2) on the charging higher ambient temperature places or continuous discharge, flashlight surface temperature rise slightly, this is a normal phenomenon;
3) used in corrosive environment immediately after the wiping surface.
6 quality assurance:
Company in accordance with the ISO9001:2000 international quality system operation, products 3 years warranty; in 3 years, any fault product under normal use, the company is responsible for free repair; you can contact with our technical quality department, we will provide high quality and efficient service for you.
3 使用方法:
1） 将灯头以逆时针方向拧紧可实现长明；将灯头以顺、逆时针方向旋转1/2圈，反复操作即可实现光源闪烁。
2） 电筒尾部有充电插口；充电时，只需将充电器的输出插头对应插入充电插口即可；
3） 充电器内置充电保护装置；当充电器输入端接通电源时，指示灯为黄色；将充电器输出端插入电筒充电插口时，指示灯变为红色，表示开始正常充电；电池充满电后，指示灯即转换为黄色；
4） 一次充满电后，可在1年内随时使用；若长期放置不用，每隔半年补充充电5小时左右为佳；
5） 使用过程中，当电池电量即将耗尽时，电筒的光亮度会急剧减弱，此时应停止使用并进行充电或换上备用电池。
5 注意事项:
1） 携带或运输时，必须将灯头顺时针拧松一圈以上，以确保在运输途中电池不会导通；
2） 在环境温度较高的场所充电或连续放电时，电筒表面略有温升，此属正常现象；
6 品质保证:
公司按照ISO9001：2000国际质量体系作业，产品实行3年保用；在3年内，产品正常使用下出现任何故障，由本公司负责免费维修；您可与我司技术品质部联系，我们将为你提供优质、快捷的服务。
