| Din rail cutter TDK plastic wring duct cutter TDX |
|
DIN Rail cutter cutting machine
TDK (Manual) order No.13060
can cut dian rail NS35x7,5 NS32
packing 20cmx20cmx70cm 15kg
7.87 inch x 7.87 inch x 27.55 inch 33.11 LB
TDK provide burr free cutting at din rail NS32
TDK provide burr free cutting at din rail NS35x7,5
DIN Rail cutter cutting machine TDK22 order No.1306022
TDK22 (Manual)=TDK+TDK
TDK22 provide smooth and straight cutting
TDK22 also provide burr free cutting
at din rail NS32 and NS35x7,5
Packing 40cm x 40 cm x 70cm 30kg
15.74 inch x 15.74 inch x 27.55 inch 66.22LB

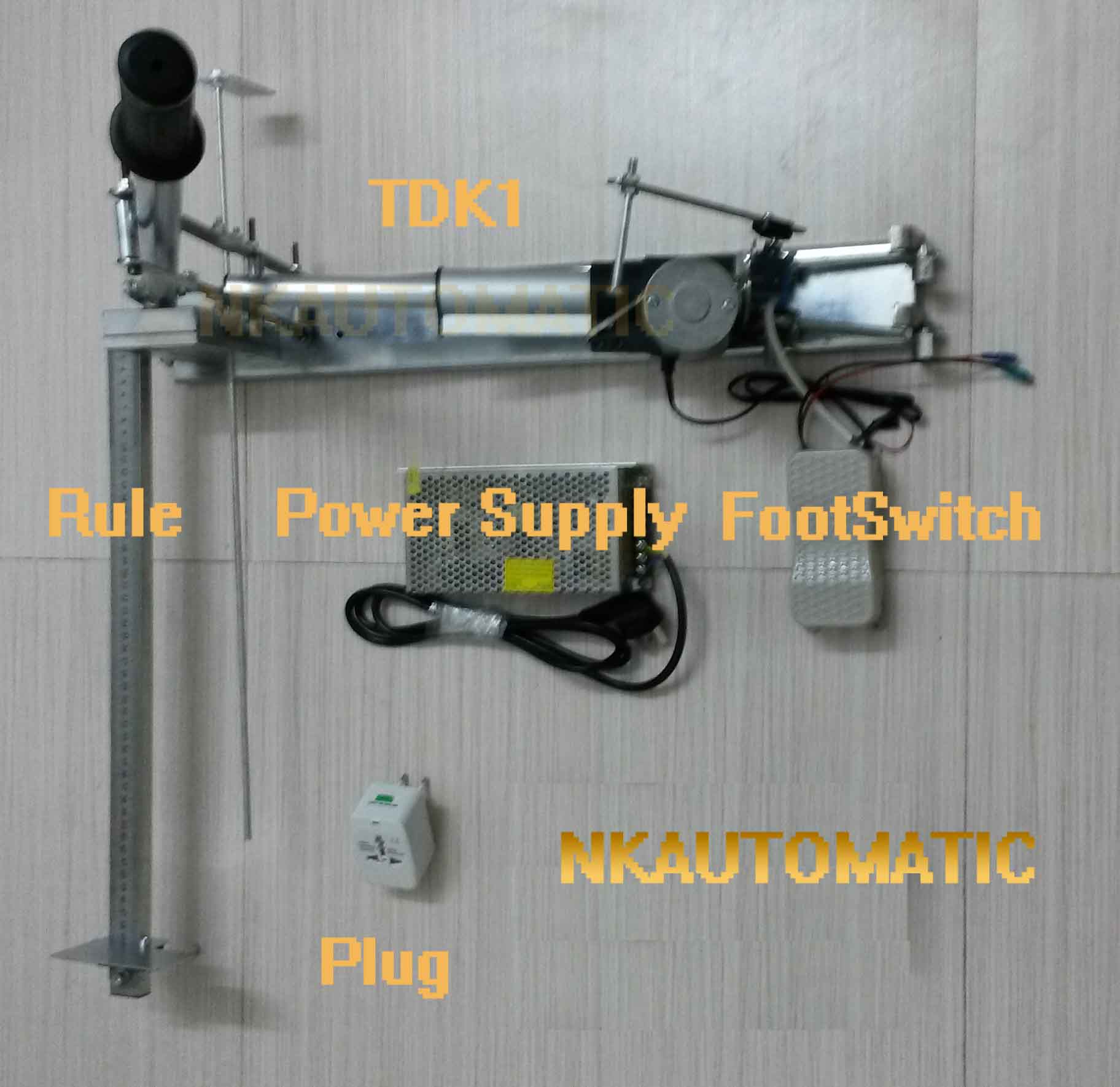

TDK1 Din Rail Cutter (Automatic) order No.130601
Packing 20cm x 20cm x 70cm 19kg
7.87 inch x 7.87 inch x 27.55 inch 41.94 LB
1 TDK1 Din Rail Cutter provide burr-free cutting at NS 35x7,5 NS32x15
2 Power Supply Input AC110~230 Output DC13V 7A (For Online Power)
3 FootSwitch

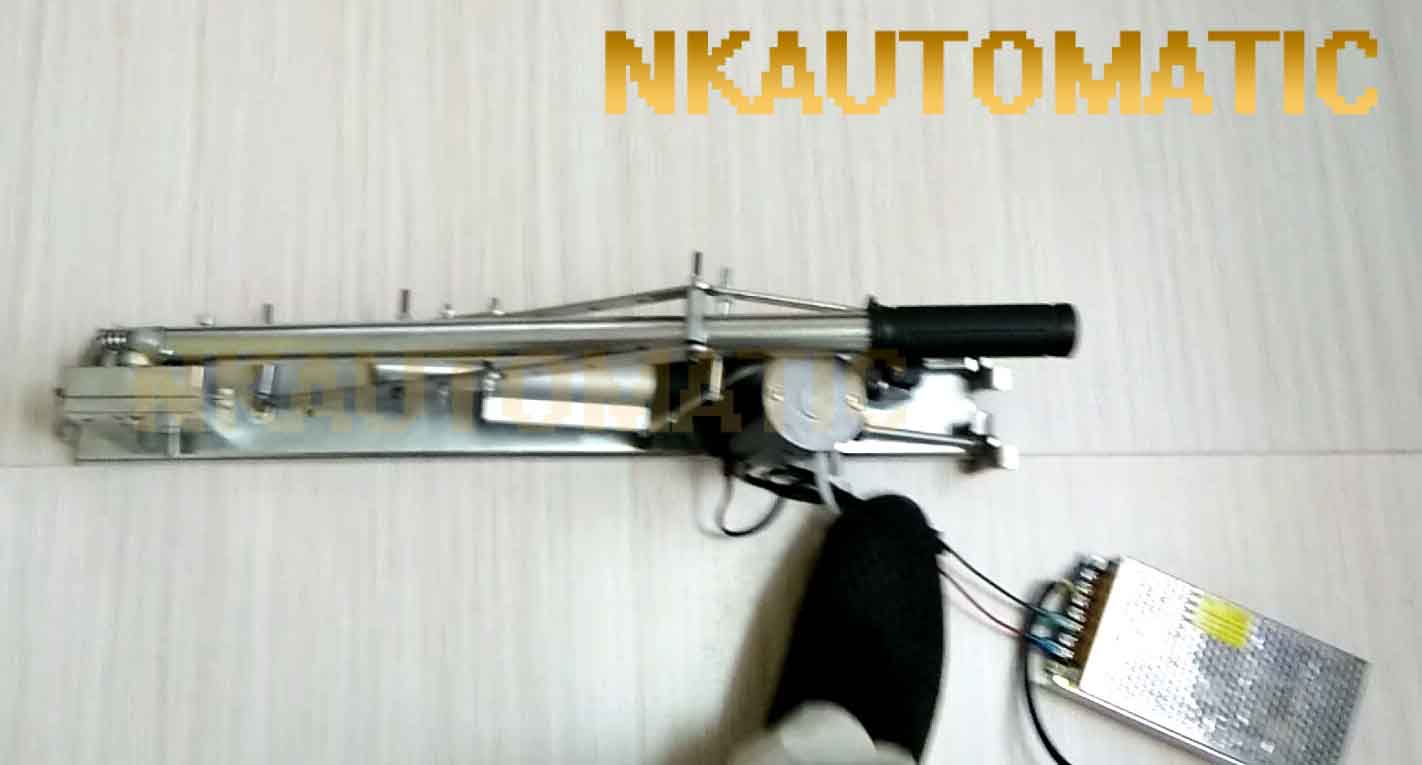

Toes press down, cutter cutting down the rail for about 2 seconds
Cutter operation is completed, automatically stops

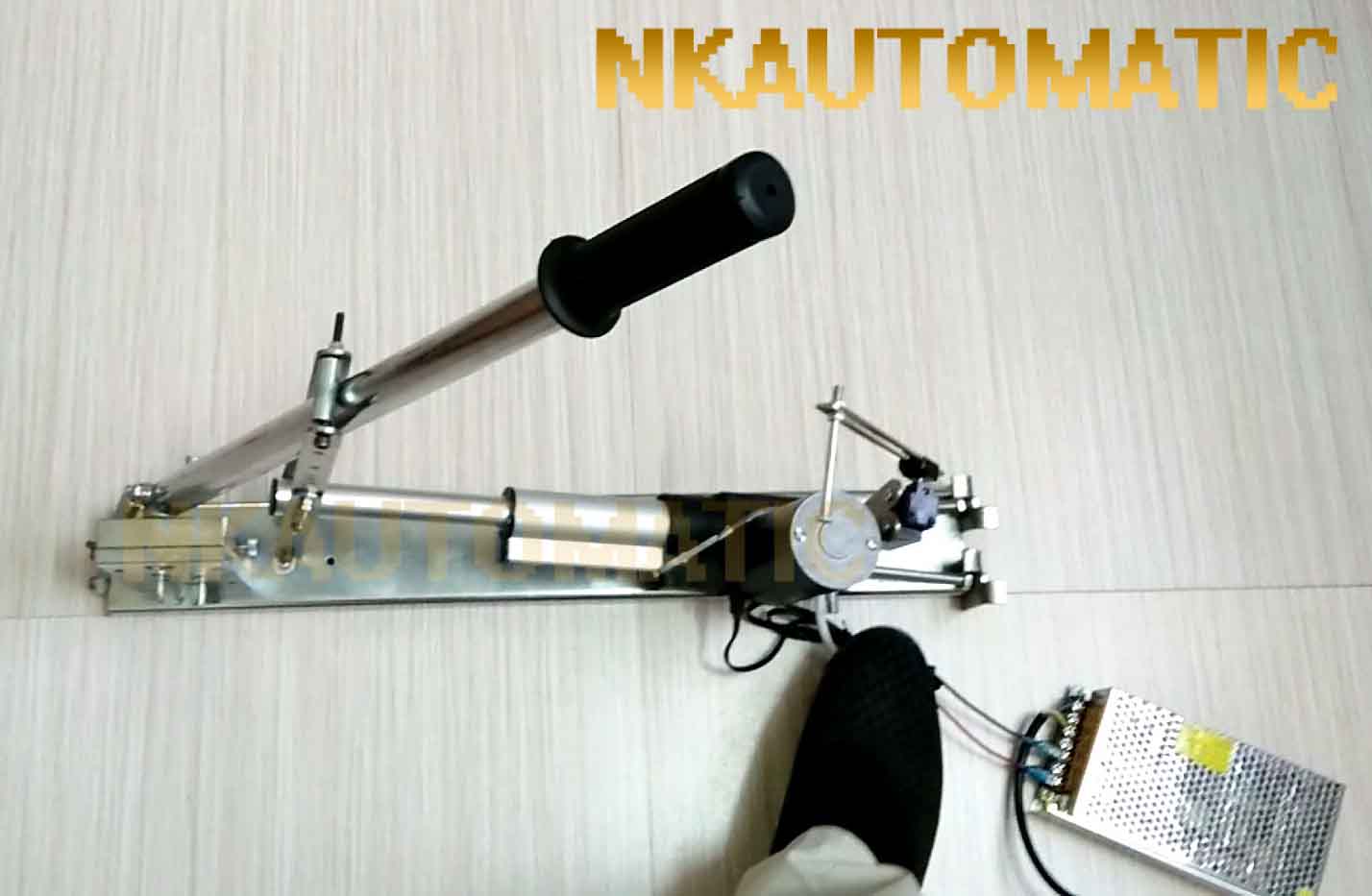

Press heel down, lift the handle up cutter, for about 2 seconds
Cutter lifting handle up to automatically stop the apex
Foot off the FootSwitch, the cutter can immediately stop working
4 Plug International universal adapter plug
5 Rule
TDX(manual) order No.13060X
Packing 20cm x 20cm x 70cm 15kg
7.87 inch x 7.87 inch x 27.55 inch 33.11 Lb
The Plastic wiring duct cutter/wire duct /Pvc line groove cutter /cutting machine
Cutted Plastic wiring duct /wire duct/Pvc Line groove cross section width≤100mm highth ≤100mm
PPS profile cutter cutting machine tools
PPS型材切割机工具
PPS STANDARD M
The number of colors that the model order No. packing
Profile cutting machine, (with MM measuring scale) without stamping tool; can be installed 2 sets of stamping tool note: please PPS STANDARD M 12061751 stamping tool indicate the desired
Profile cutting machine, (Inch/mm scale) without stamping tool; can be installed 2 sets of stamping tool note: please PPS STANDARD I/M 12062301 stamping tool indicate the desired
Stamping tool, used for punching strip type hole: 3.5 x 12 mm note: please press tool PPS-ST to indicate the desired (3,5x12) L 12035631
Stamping tool, used for punching strip type hole: 4.5 x 12 mm note: please press tool PPS-ST to indicate the desired (4,5x12) L 12035341
Stamping tool, used for punching strip type hole: 5.5 x 12 mm note: please press tool PPS-ST to indicate the desired (5,5x12) L 12026031
Stamping tool, used for punching strip type hole: 6.35 x 15 mm note: please press tool PPS-ST to indicate the desired (6,35x15) L 12048761
Stamping tool, used for punching strip type hole: 6.5 x 15 mm note: please press tool PPS-ST to indicate the desired (6,5x15) L 12025931
Stamping tool, used for stamping the transversal hole: 3.5 x 12 mm note: please press tool PPS-ST to indicate the desired (3,5x12) Q 12035501
Stamping tool used for stamping the transversal hole: 4.5 x 12 mm note: please press tool PPS-ST to indicate the desired (4,5x12) Q 12035471
Stamping tool used for stamping the transversal hole: 5.5 x 12 mm note: please press tool PPS-ST to indicate the desired (5,5x12) Q 12034111
Stamping tool used for stamping the transversal hole: 6.5 x 15 mm note: please press tool PPS-ST to indicate the desired (6,5x15) Q 12034081
Stamping tool used for punching drill: 3.8 mm Phi note: please press tool PPS-ST to indicate the desired (3,8) 12048921
Stamping tool used for punching drill: 4.3 mm Phi note: please press tool PPS-ST to indicate the desired (4,3) 12026161
Stamping tool used for punching drill: 5.3 mm Phi note: please press tool PPS-ST to indicate the desired (5,3) 12026291
Stamping tool used for punching drill: 6.4 mm Phi note: please press tool PPS-ST to indicate the desired (6,4) 12026321
Stamping tool used for punching drill: 7 mm Phi note: please press tool PPS-ST to indicate the desired (7,0) 12048891
Stamping tool used for punching drill: 8.4 mm Phi note: please press tool PPS-ST to indicate the desired (8,4) 12027261
Center positioning device, convenient rail punching center hole in PPS TABLE 12062851
PPS STANDARD M describes the size
PPS STANDARD I/M
The width / length / height [mm] 180 / 100 / 220
Scale length [mm] 1000
Rated working voltage / rated working current / wire line No.
Hand lever length [mm] 1000
The weight of [kg] 19
|
|
|
|
|
| |
|
|
|
|
|
| PPS STANDARD M |
|
| 说明 |
颜色 |
型号 |
订货号 |
件数包装 |
| 型材切割机，(带mm测量尺) 不带冲压刀具；可装2 套冲压刀具 注意:订货时请注明所需的冲压刀具 |
|
PPS STANDARD M |
12 06 17 5 |
1 |
| 型材切割机，(Inch/mm量尺) 不带冲压刀具；可装2 套冲压刀具 注意:订货时请注明所需的冲压刀具 |
|
PPS STANDARD I/M |
12 06 23 0 |
1 |
| 冲压刀具，用于冲压 长条型孔： 3.5 x 12 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (3,5x12) L |
12 03 56 3 |
1 |
| 冲压刀具，用于冲压 长条型孔： 4.5 x 12 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (4,5x12) L |
12 03 53 4 |
1 |
| 冲压刀具，用于冲压 长条型孔： 5.5 x 12 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (5,5x12) L |
12 02 60 3 |
1 |
| 冲压刀具，用于冲压 长条型孔： 6.35 x 15 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (6,35x15) L |
12 04 87 6 |
1 |
| 冲压刀具，用于冲压 长条型孔： 6.5 x 15 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (6,5x15) L |
12 02 59 3 |
1 |
| 冲压刀具，用于冲压 横向型孔： 3.5 x 12 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (3,5x12) Q |
12 03 55 0 |
1 |
| 冲压刀具，用于冲压 横向型孔： 4.5 x 12 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (4,5x12) Q |
12 03 54 7 |
1 |
| 冲压刀具，用于冲压 横向型孔： 5.5 x 12 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (5,5x12) Q |
12 03 41 1 |
1 |
| 冲压刀具，用于冲压 横向型孔： 6.5 x 15 mm 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (6,5x15) Q |
12 03 40 8 |
1 |
| 冲压刀具，用于冲压 钻孔： 3.8 mmΦ 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (3,8) |
12 04 89 2 |
1 |
| 冲压刀具，用于冲压 钻孔： 4.3 mmΦ 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (4,3) |
12 02 61 6 |
1 |
| 冲压刀具，用于冲压 钻孔： 5.3 mmΦ 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (5,3) |
12 02 62 9 |
1 |
| 冲压刀具，用于冲压 钻孔： 6.4 mmΦ 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (6,4) |
12 02 63 2 |
1 |
| 冲压刀具，用于冲压 钻孔： 7.0 mmΦ 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (7,0) |
12 04 88 9 |
1 |
| 冲压刀具，用于冲压 钻孔： 8.4 mmΦ 注意:订货时请注明所需的冲压刀具 |
|
PPS-ST (8,4) |
12 02 72 6 |
1 |
| 中心定位装置, 方便在导轨上冲压中心孔 |
|
PPS TABLE |
12 06 28 5 |
1 |
| PPS STANDARD M |
描述尺寸 |
| PPS STANDARD I/M |
| 宽度/ 长度/ 高度[mm] |
180 / 100 / 220 |
| 标尺长度[mm] |
1000 |
| 数据 |
| 额定工作电压/额定工作电流/导线线号 |
|
| |
| |
| 手摇杠杆长度[mm] |
1000 |
| 重量[kg] |
19 |
| 订货号Order No. |
型 号 Type |
|
|
| 1207585 |
PPS BASIC I/M |
|
|
 |
Profile cutter, for cutting EN DIN rail profiles |
|
Width / length / height: 150/160/180 (mm), weight 8.3kg, scale length: 1000mm, hand-operated lever length 590mm
宽/长/高:150/160/180(mm),重8.3kg,标尺长度:1000mm,手摇动杠杆长度590mm
|
|
| 1207569 |
PPS CD M |
|
|
|
Wiring channel cutter, for cutting wiring channels and their covers, can be used up to a width of 125 mm |
|
Width / length / height: 285/280/290 (mm), weight 10.5kg, scale length: 1000mm, hand-operated lever length cutting guide 500mm, 3mm thick, the cutting width 125mm
宽/长/高:285/280/290(mm),重10.5kg,标尺长度:1000mm,手摇动杠杆长度500mm,切割导轨厚3mm,切割宽度125mm
|
|
| 1207572 |
PPS CD BLADE |
|
|
| 1208995 |
PPS CD M COHO |
|
|
| |
|
|
|
| |
|
|
|
| 1206243 |
PPS CLASSIC M |
|
|
|
Profile cutter, without stamping tool, accepts 2 interchangeable stamping bits |
|
| 1206256 |
PPS CLASSIC I/M |
|
|
|
Profile cutter,without stamping tool, accepts 2 interchangeable stamping bits with inch/millimeter measuring bar |
|
| PPS CLASSIC M |
描述尺寸 |
| PPS CLASSIC I/M |
| 宽度/ 长度/ 高度[mm] |
250 / 100 / 230 |
| 标尺长度[mm] |
1000 |
| |
| 额定工作电压/额定工作电流/导线线号 |
|
| [V]/[A]/AWG |
| [V]/[A]/AWG |
| 手摇杠杆长度[mm] |
1000 |
| 重量[kg] |
19 |
|
|
| |
|
|
|
|
|
|
|
