crimping pilers压线钳CRIMPFOXUD/UR/ZA/UC>

  crimping pliers压线钳CRIMPFOXUD/UR/ZA/UC
crimping pliers压线钳1884843 CRIMPFOX-1,6-ER-1,50-AT
压线端子范围 CK 1.6-ER... and ...-BR..., 0.5 - 1.5 mm²

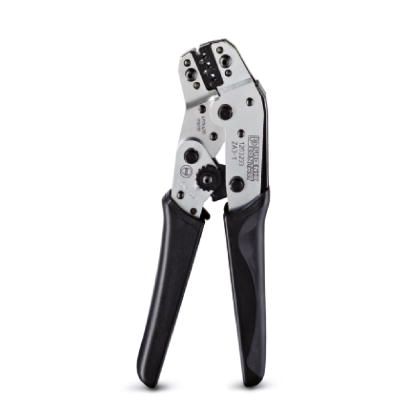

1203233 CRIMPFOX ZA 3-1

Crimping pliers for non-insulated slip-on connection sleeves 2.8 and 4.8 mm

长195mm 黑色 重0.37kg  压线范围0.1-1.5mm2/24-10AWG

Open  Barrel
1204025 CRIMPFOX UC 6

Crimping pliers for non-insulated slip-on connection sleeves 4.8 - 6.3 and 9.5 mm,

压接连接插头4.8-6.3mm和9.5mm

长255mm  黑色 重0.65kg 压线范围0.5-6mm2/20-10AWG

1203631 CRIMPFOX UC 6-PLUS



Crimping pliers with guide for non-insulated slip-on connection sleeves 4.8 - 6.3 and 9.5 mm

有导柱套模具压接连接插头4.8-6.3mm和9.5mm

长255mm  黑色 重0.65kg 压线范围0.5-6mm2/20-10AWG
1207828 CRIMPFOX 6 F

Crimping pliers, with front insertion, angled plier jaws and 2-component handles, for pliers and TWIN ferrules

长200mm  黑色 压线范围0.5-6mm2/20-10AWG  重375 g
 square

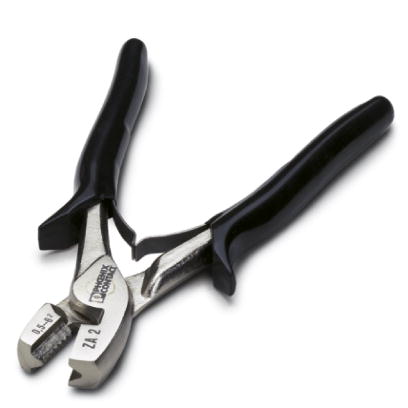

1201853 CRIMPFOX ZA 2

Crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09

重370 g 长195mm 黑色 压线范围0.5-6mm2/20-10AWG
trapezoidal

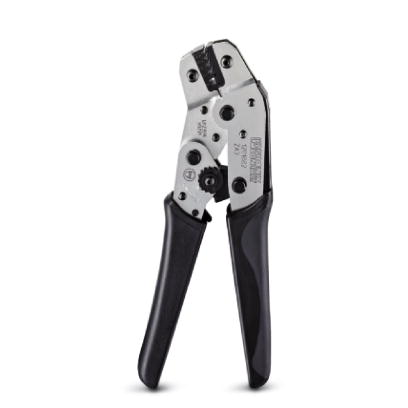

1201882 CRIMPFOX ZA 3

Crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09

重370 g 长195mm 黑色 压线范围0.25-6mm2/24-10AWG
trapezoidal

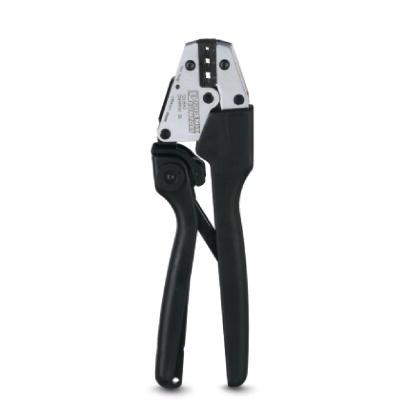

1203592 CRIMPFOX 25

Crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09

长255mm 黑色 压线范围10-25mm2/8-4AWG 重0.55KG
rectangular
1203602 CRIMPFOX 50



Crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-10

长255mm 黑色 压线范围35-50mm2/2-0AWG 重0.55KG
rectangular
1204436 CRIMPFOX UD 6

Crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-10

长220mm 黑色 压线范围0.25-6mm2/24-10AWG  重0.51KG
trapezoidal

1205244 CRIMPFOX UD 6-4

1212045 CRIMPFOX 10S

压线钳，用于冷压头，符合DIN 46228-1+4，0.14-10mm²，侧面插入，方形压接 重0.4457 KG

Crimping pliers, square compression, for ferrules 0.25 - 6 mm² in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09

长175mm 黑色 重360g  压线范围0.25-6mm2/23-10AWG
square
1206366 CRIMPFOX UD 6-6

1212046 CRIMPFOX 6H

压线钳，用于冷压头，符合DIN 46228-1+4，0.14-6mm²，侧面插入，六角压接  重0.4458 KG

Crimping pliers, hexagonal compression, for ferrules 0.25 - 6 mm² in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09

长175mm 黑色 压线范围0.25-6mm2/23-10AWG   重360g
hexagonal
1205451 CRIMPFOX UD 10-4



Crimping pliers, square compression, for ferrules 0.75 - 10 mm² in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09

长175mm 黑色 重360g  压线范围0.75-10mm2/18-8AWG
square
1205448 CRIMPFOX RC 2,5
Crimping pliers. with positioner, for turned plug connector contacts 0.14 mm² to 2.5 mm²
带定位器,用于针型头压接 范围0.14-2.5mm2
1203110 ZAP 25
Pneumatic crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 4 - 10 mm²

长190 mm  压力4 hPa ... 6 hPa 每次动作空气消耗量0.2l



重0.45Kg                0.25-2.5mm2     /24-14AWG

1203259 ZAP 100

Pneumatic crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 4 - 10 mm²

长190 mm  压力4 hPa ... 6 hPa 每次动作空气消耗量0.2l

重0.45Kg              4-10mm2


1203123 ZAP 25 T

Pneumatic crimping pliers, as table top version, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 0.25 - 2.5 mm²



长190 mm  压力4 hPa ... 6 hPa 每次动作空气消耗量0.2l

重1.3Kg                0.25-2.5mm2     /24-14AWG

1203262 ZAP 100 T



Pneumatic crimping pliers, as table top version, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross section 4 - 10 mm²

长190 mm  压力4 hPa ... 6 hPa 每次动作空气消耗量0.2l

重1.03             4-10mm2

1202373 CRIMPFOX ZA 6-2

Crimping pliers for insulated cable lugs and connectors

长195mm 黑色 重0.37kg 压接范围0.5-2.5mm2/20-14AWG



压接模式

红=0.5-1.5mm2  / 20-16AWG

蓝=1.5-2.5mm2  / 16-14AWG


1203301 CRIMPFOX ZA 6-3

Crimping pliers for insulated cable lugs and connectors

长195mm 黑色 重0.37kg 压接范围0.14-1mm2/26-18AWG

压接模式

白=0.14-1mm2  / 26-18AWG

红=0.5-1.5mm2  / 20-16AWG

蓝=1.5-2.5mm2  / 16-14AWG
1203615 CRIMPFOX INC 6

Crimping pliers for insulated cable lugs and connectors

长255mm 黑色 重0.55kg 压接范围0.5-6mm2/20-10AWG

压接模式

红=0.5-1.5mm2  / 20-16AWG

蓝=1.5-2.5mm2  / 16-14AWG

黄=2.5-6.0mm2  / 14-10AWG
1203288 CRIMPFOX ZA 5



Crimping pliers, for non-insulated connections, (cable lugs, ring or tab-type)

长195mm 黑色 重0.37kg 压接0.75-1.5-2.5mm2/18-14AWG

1203628 CRIMPFOX UR 10

Crimping pliers, for non-insulated connections, (cable lugs, ring or tab-type)

长255mm 黑色 重0.55kg  压线4--10mm2/12-8AWG
