Protective hardware anti vibration hammer pressure equalizing ring preformed four double splitting spacer
保护金具防振锤均压环预绞丝四双分裂间隔棒

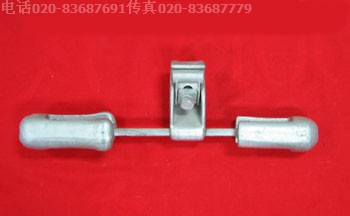

Anti vibration hammer 防振锤
|
|
Application of wire diameter
|
|
ATRFDZ-1
|
7.00～12.0
|
|
ATRFDZ-2
|
11.0～15.0
|
|
ATRFDZ-3
|
14.0～19.0
|
|
ATRFDZ-4
|
18.0～22.5
|
|
ATRFDZ-5
|
22.0～29.0
|
It can be customized according to customer needs of various types 另可根据客户需要订做各种类型

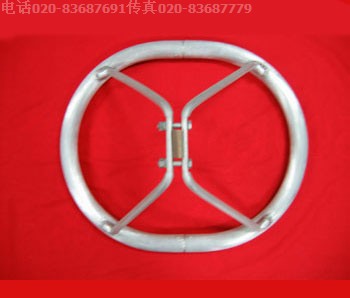

Grading and shielding ring 均压屏蔽环
It can be customized according to customer needs of various types另可根据客户需要订做各种类型

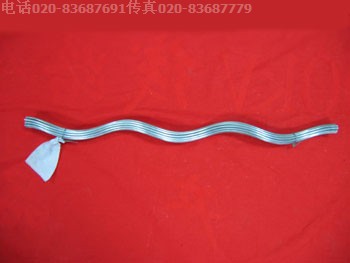

The preformed armor rods 预绞丝护线条
|
|
Application of wire diameter
|
Each root number
|
|
ATRFYH-099105
|
9.90～10.50
|
9
|
|
ATRFYH-105111
|
10.51～11.10
|
10
|
|
ATRFYH-111124
|
11.11～12.45
|
10
|
|
ATRFYH-124132
|
12.40～13.25
|
11
|
|
ATRFYH-132140
|
13.20～14.00
|
11
|
|
ATRFYH-140148
|
14.01～14.85
|
11
|
|
ATRFYH-148154
|
14.86～15.41
|
12
|
|
ATRFYH-154166
|
15.42～16.65
|
12
|
|
ATRFYH-166172
|
16.66～17.25
|
13
|
|
ATRFYH-172178
|
17.26～17.85
|
12
|
|
ATRFYH-178188
|
17.86～18.80
|
12
|
|
ATRFYH-188199
|
18.81～19.90
|
13
|
|
ATRFYH-199215
|
19.91～21.50
|
11
|
|
ATRFYH-215230
|
21.51～23.00
|
12
|
|
ATRFYH-230236
|
23.01～23.60
|
13
|
|
ATRFYH-236248
|
23.61～24.80
|
13
|
|
ATRFYH-248258
|
24.81～25.80
|
11
|
|
ATRFYH-258263
|
25.81～26.30
|
12
|
|
ATRFYH-263279
|
26.31～27.90
|
12
|
|
ATRFYH-279289
|
27.91～28.95
|
12
|
|
ATRFYH-289307
|
28.96～30.70
|
13
|
|
ATRFYH-307337
|
30.71～33.70
|
12
|
|
ATRFYH-337353
|
33.71～35.30
|
13
|
|
ATRFYH-353366
|
35.31～36.60
|
11
|
|
ATRFYH-366401
|
36.61～40.10
|
12
|
|
ATRFYH-401439
|
40.11～43.90
|
13
|
|
ATRFYH-439482
|
43.91～48.20
|
14
|
|
ATRFYH-482531
|
48.21～53.10
|
15
|
|
ATRFYH-531557
|
53.11～55.70
|
15
|
It can be customized according to customer needs of various types另可根据客户需要订做各种类型

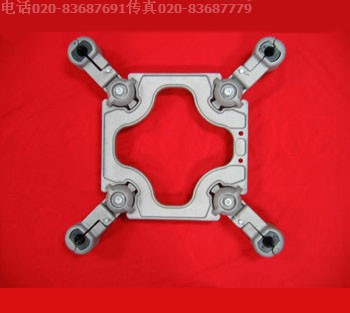

Four splitting damping spacer rod 四分裂阻尼间隔棒
|
|
Applicable specifications 适用导线规格
|
|
ATRFJZ-445F/300
|
LGJ-300/20、25、40、50
|
|
ATRFJZ-445F/300A
|
LGJ-300/70
|
|
ATRFJZ-445F/400
|
LGJ-400/50、65
|
|
ATRFJZ-445F/400A
|
LGJ-400/20、25、35
|
|
ATRFJZ-445F/400B
|
LGJ-400/95
|
It can be customized according to customer needs of various types 另可根据客户需要订做各种类型

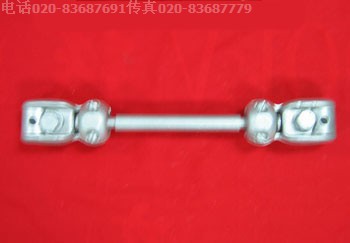

Double split damping spacer rod 双分裂阻尼间隔棒
|
|
Application of wire diameter 适用导线外径
|
|
ATRFFJQ-204
|
20～21
|
|
ATRFFJQ-205
|
22～28
|
|
ATRFFJQ-404
|
20～21
|
|
ATRFFJQ-405
|
22～28
|
|
ATRFFJQ-455
|
26～31
|
It can be customized according to customer needs of various types 另可根据客户需要订做各种类型

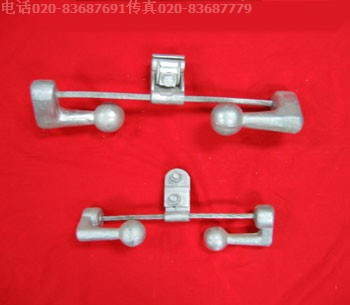

Anti vibration hammer 防振锤
|
|
Application of wire diameter 适用导线外径
|
|
ATRFR-1
|
7～12
|
|
ATRFR-2
|
11～22
|
|
ATRFR-3
|
18～28
|
|
ATRFR-4
|
23～36
|
|
ATRFR-5
|
38～44
|
It can be customized according to customer needs of various types 另可根据客户需要订做各种类型
