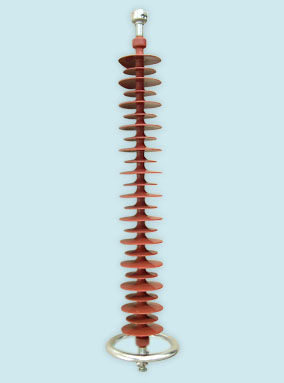

110kV composite rod insulator110kV棒形悬式复合绝缘子--PRODUCT--CABLE MARKER CRITCHLEY MARKER K TYPE MARKER STAINLESS STEEL MARKER TIE CHASSIS CASE--110kV composite rod insulator 110kV棒形悬式复合绝缘子

110KV composite rod insulator main dimension and characteristic table

order No 产品型号	Rate voltage 额定电压 kV	Rated mechanical tensile load额定机械拉伸负荷kN	Connecting structure mark连接结构标记	height of structure结构高度mm	minimum arc distance最小电弧距离mm	creepage distance爬电距离mm	Full wave lightning impulse withstand voltage kV (peak) not less than雷电全波冲击耐受电压kV (峰值)不小于	Switching impulse withstand voltage kV (peak) not less than操作冲击耐受电压kV (峰值)不小于	Frequency 1 min wet withstand voltage (effective value) not less than kV工频 1 min 湿耐受电压kV (有效值) 不小于
FXBW 1 -110/70	110	70	16	1180±15	1000	2800	550	--	300
FXBW 2 -110/70	110	70	16	1240±15	1050	2800	550	--	300
FXBW 3 -110/70	110	70	16	1180±15	1000	3200	550	--	300
FXBW 4 -110/70	110	70	16	1240±15	1050	3300	550	--	300
FXBW 1 -110/100	110	100	16	1180±15	1000	2800	550	--	300
FXBW 2 -110/100	110	100	16	1240±15	1020	2800	550	--	300
FXBW 3 -110/100	110	100	16	1180±15	1000	3200	550	--	300
FXBW 4 -110/100	110	100	16	1240±15	1020	3200	550	--	300

Note: the above parameters is based on a frequency of less than 100Hz, the insulator for overhead lines, installation size determined by the altitude does not exceed 1000m substation, if there are special requirements, the company can design and manufacture according to the requirements. With "*" for DC composite insulator.

注：以上参数是根据频率不超过100Hz，海拔高度不超过1000m的架空线路、变电站用绝缘子安装尺寸定出，若有特殊要求，本公司可按其要求设计、制造。加“*”号为直流复合绝缘子。
