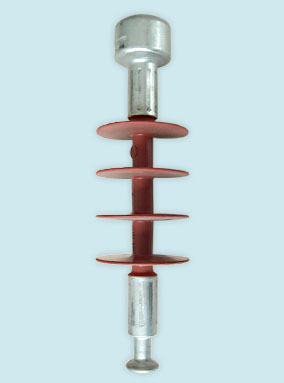

10kV composite rod insulator 10KV棒形悬式复合绝缘子主要尺寸与特性表

order No

产品型号

Rated voltage额定电压 kV

Rated mechanical tensile load额定机械拉伸负荷kN

Connecting structure mark 连接结构标记

height of the structure结构高度mm

minimum arc distance最小电弧距离mm

creepage distance爬电距离mm

Full wave lightning impulse withstand voltage kV (peak) not less than雷电全波冲击耐受电压kV (峰值)不小于

Switching impulse withstand voltage kV (peak) not less than操作冲击耐受电压kV (峰值)不小于

Frequency 1 min wet withstand voltage (effective value) not less than kV工频 1 min 湿耐受电压kV (有效值) 不小于

FXBW-10/70

315

189

400

110

Note: the above parameters is based on the frequency of not more than 100Hz, insulator installation size set of overhead lines, altitude not exceeding 1000m substation, if there are special requirements, the company can design and manufacture according to the requirements. With "*" are DC composite insulator. 注：以上参数是根据频率不超过100Hz，海拔高度不超过1000m的架空线路、变电站用绝缘子安装尺寸定出，若有特殊要求，本公司可按其要求设计、制造。加“*”号为直流复合绝缘子。
