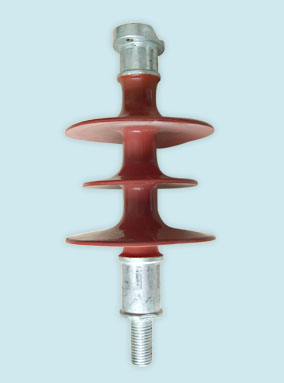

10KV needle type composite insulator 10KV针式复合绝缘子--PRODUCT--CABLE MARKER CRITCHLEY MARKER K TYPE MARKER STAINLESS STEEL MARKER TIE CHASSIS CASE--10KV needle type composite insulator 10KV针式复合绝缘子

order No	rate voltage kV	Insulator height mm	Insulation distance	Length of thread dXh	Line groove radius	number of umbrella	Nominal creepage distance	Frequency 1 min wet withstand voltage kV	Standard full wave lightning impulse withstand voltage (peak) kV	nominal bending failure load of kN
产品型号	额定电压 kV	绝缘子高度 mm	绝缘距离 mm	螺纹长度 d×h	线槽半径 R	伞数	公称爬电距离	工频 1 min 湿耐受电压 kV	标准雷电全波冲击耐受电压 kV (峰值)	额定弯曲破坏负荷 kN
FPW-10T16	10	236	150	M16×45	18	2大1小	390	50	110	2.0
FPW-10T20	10	236	150	M20×45	18	2大1小	390	50	110	3.5
