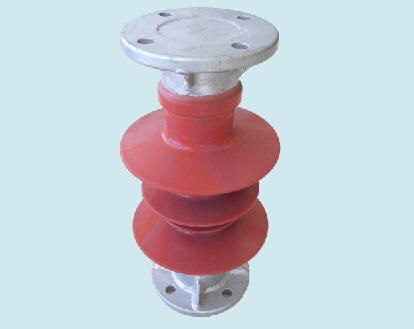

10KV/35KV pillar composite insulator 10KV/35KV支柱复合绝缘子主要尺寸与特性表

No序号	Model 产品型号	Rate Voltage额定电压kV	Mechanical failure load 机械破坏负荷		Mounting height安装高度 mm	Arc distance电弧距离 mm	creepage distance爬电距离 mm	lightning impulse withstand voltage (peak) is not less than kV雷电冲击耐受电压kV(峰值) 不小于	Line frequency withstand voltage kV (effective value) not less than工频耐受电压kV ( 有效值 )不小于		installation hole center distance安装孔中心距 mm	installation hole diameter安装孔孔径 mm
No序号	Model 产品型号	Rate Voltage额定电压kV	Bend弯曲kN	Reverse扭转kN.m	Mounting height安装高度 mm	Arc distance电弧距离 mm	creepage distance爬电距离 mm		1min干耐受	1min湿耐受	installation hole center distance安装孔中心距 mm	installation hole diameter安装孔孔径 mm
1	FZSW-10/4	10	4.0	1.2	350	210	110	75	42	30	127	16
2	FZSW-35/4	35	4.0	1.2	420	280	110	182	100	80	127	16

Note: the above parameters is based on the frequency of not more than 100Hz, insulator installation size set of overhead lines, altitude not exceeding 1000m substation, if there are special requirements, the company can design and manufacture according to the requirements. With "*" are DC composite insulator. 注：以上参数是根据频率不超过100Hz，海拔高度不超过1000m的架空线路、变电站用绝缘子安装尺寸定出，若有特殊要求，本公司可按其要求设计、制造。加“*”号为直流复合绝缘子。
