insulator creeping increasing skirt 玻璃瓷绝缘子增爬裙--PRODUCT--CABLE MARKER CRITCHLEY MARKER K TYPE MARKER STAINLESS STEEL MARKER TIE CHASSIS CASE--Glass ceramic insulator creeping increasing skirt 玻璃瓷绝缘子增爬裙FZ1-160

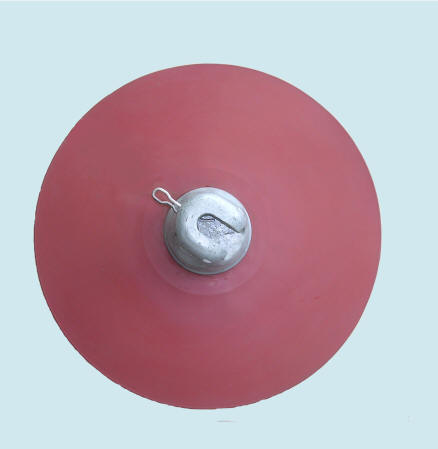

Glass ceramic insulator creeping increasing skirt

Increase climbing skirt type specification

增　爬　裙　型　号　规　格

Creeping increasing skirt Model 增爬裙型号	Insulator Manufacturers and product model 绝缘子生产厂家及产品型号	Petticoat creepage distance 增爬裙爬距 mm	Petticoat insulator increases the climbing distance than the original 增爬裙比原绝缘子增加爬距 mm	Petticoat bonded area 增爬裙粘接面积 cm²	increasing skirt weight增爬裙重量kg	Adhesive glue consumption (for reference)粘接用胶量（供参考） g
FZ1-160	大连陶瓷XWP2-160	280	190	667	1.047	45.8
FZL1-160	南京玻璃LXHY3-160	297	185	689.5	1.374	47.4
FZL1-210	南京玻璃LXHY5-210	330	184	1100.23	2.823	75.6
FZL1-70	南京玻璃LXHY5-70	316	181	910.6	1.65	62.6
FZ1-240	NGK陶瓷CA-589EX-240	292	188	706	1.698	48.5
FZL2-70	自贡玻璃FC7P/146U	303	187	679	2.073	46.7
FXZ1-210	大连陶瓷XP1-210	297	188	772	1.6	53
FLXZ1-210	自贡玻璃FC210/170	308	185	840	1.84	57.7
