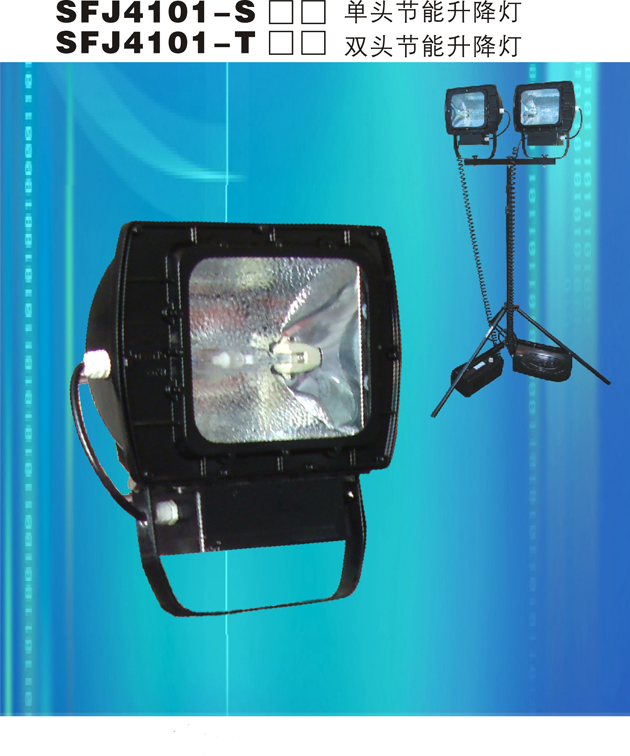

SFJ1401-S口口单头节能升降灯 灯泡配件
SFJ1401-S mouth such single head lifting lamp bulb accessories

SFJ1401-T mouth double energy-saving lifting lamp lighting accessories

SFJ1401-T口口双头节能升降灯 灯泡配件

 The scope of application

Applicable to electric power, railway, metallurgy, mining, flood control, criminal investigation, force field of large area rescue, construction operation for lighting.

Performance characteristics

- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, to ensure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;

Surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion; high purity aluminum reflector imported mirror, reflecting high efficiency;

- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding, high temperature resistance, corrosion resistance; sealing and surface coating treatment special, to ensure that the lighting in humid, high temperature and other harsh environment of corrosion, rust;

- split design, electrical box placed in the river at the bottom of the bracket, lamp holder are inverted prevent fish, can also extend the electrical life;

- the use of foreign advanced technology of tempered glass, good anti impact performance;

Cold, hot - can achieve instantaneous restart, power factor greater than 0.9;

Using high light efficiency, long life gas discharge light source.

适用范围
适用于电力、铁路、冶金、矿山、防汛、刑侦、部队等野外大面积抢险、施工作业的照明使用。

性能特点
-外壳采用进口优质铝材,压铸成型，并采用多重防振结构设计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；
-表面采用高科技静电喷涂技术，防腐性好，附着力强；反射器采用进口高纯镜面铝，反射效率高；
-密封圈采用进口优质硅橡胶，挤压后经二次硫化成型，耐高温、抗腐蚀；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
-分体设计，电器箱摆放于三角支架底部间，防止灯架鱼水顷倒，还可以延长电器寿命；
-采用国外先进技术钢化玻璃，抗冲击性能好；
-可以实现冷、热态下瞬时再启动，功率因数大于0.9；
-采用高光效、长寿命的气体放电光源。

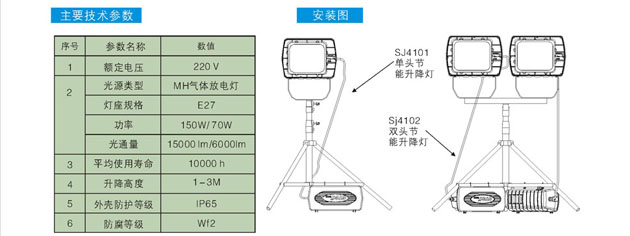

No序号		parameter name 参数名称		value数值
1		rate voltage额定电压		220V
2		light source 光源类型		MH气体放电灯gas discharge light
		Socket specifications 灯座规格		E27
		power功率		150W/70W
		luminous flux 光通量		15000Lm/6000lm
3		average service life平均使用寿命		10000h
4		lifting height升降高度		1-3M
5		shell protection class外壳保护等级		IP65

The matters needing attention

1 bulbs must be clamped; the 2 voltage must be within the specified range of use.

Method of use

1 a tripod, beam on both sides of the lamp holder mounted on a tripod;

2 the lamp plug with the insertion of city electric socket or output generator socket 220V, can light the bulb;

3 according to the need to adjust the lamp to reach the desired position.

Quality assurance

Company in accordance with the ISO9001:2000 international quality system operation, products 3 years warranty (bulb is guaranteed for 1 years); in 3 years, any fault product under normal use, the company is responsible for free repair.



注意事项
1灯泡必须卡紧；2电压须在规定的使用范围内。

使用方法
1支起三角架，将灯头安装在三角架上的横梁两边；
2将灯具所带的插头插入市电插座或输出为220V的发电机插座，即可点亮灯泡；
3根据需要调节灯头达到所需的位置。

品质保证
公司按照ISO9001：2000国际质量体系作业，产品实行3年保用(灯泡保用1年);在3年内,产品正常使用下出现任何故障，由本公司负责免费维修。
