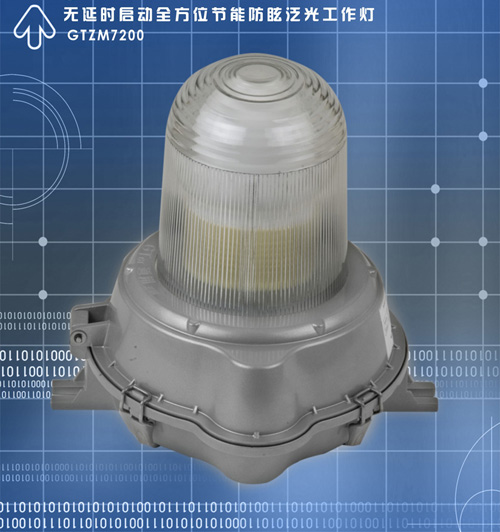

GTZM7200无延时启动全方位节能防眩泛光工作灯 灯泡及配件
Applicable places:
Suitable for fixed lighting in electric power, railway, metallurgy, mining, coal, port, municipal and other sectors of various types of plant, workshop, stations and large facilities, venues
Performance characteristics:
- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, make sure it is in the high frequency vibration of long term safety work;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding; sealing and surface coating treatment special, ensure lamps and lanterns in the humid, high temperature and other harsh environment of corrosion, rust;
- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;
- excellent products transparency material, can withstand the sharp change of temperature difference. Through advanced refraction principle of optimization design, soft light, illumination uniformity, no glare, no ghosting, fast heat dissipation;
2.65MHZ high frequency new light source - using the set of electronics, electromagnetic, vacuum technology in one of the characteristics of high efficiency, energy saving and environmental protection, long life, power factor of 0.98 above.
适用场所：
适用于电力、铁路、冶金、矿山、煤炭、港口、市政等行业各类厂区、车间、场站和大型设施、场馆等场所作固定照明
性能特点:
● 外壳采用进口优质铝材，压铸成型，并采用多重防振结构设计，确保其在高频震动中长期安全工作；
● 表面采用高科技静电喷涂技术，防腐性好，附着力强；
● 密封圈采用进口优质硅橡胶，挤压后经二次硫化成型；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
● 进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封；
● 优等品透明件选材，可承受急剧的温差变化。经过先进折射原理优化设计，光线柔和，照度均匀，无眩光，无重影，散热快；
● 采用集电子、电磁、真空等技术于一体的2.65MHZ 高频新光源, 高效、节能、环保、长寿命的特点，功率因数达0.98以上。
The main technical parameters:主要技术参数:
|
No序号
|
parameter Name参数名称
|
unit单位
|
value数值
|
|
1
|
Rate voltage额定电压
|
V
|
220
|
|
2
|
High-frequency electrodeless light source 高频无极
光源
|
40W
|
Luminous flux 光通量
|
lm
|
2800
|
|
average service life平均使用寿命
|
h
|
60000
|
|
60W
|
Luminous flux 光通量
|
lm
|
4200
|
|
average service life平均使用寿命
|
h
|
60000
|
|
3
|

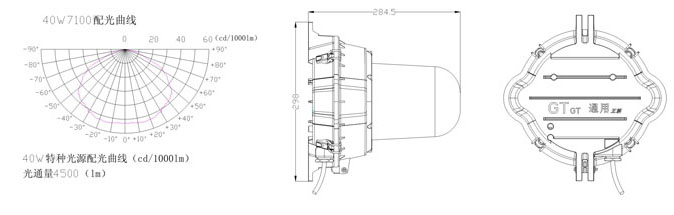

Size外形尺寸
|
long长×wide宽×high高
|
mm
|
290×290×278
|
|
4
|
weight重量
|
kg
|
3.5
|
|
5
|
Shell protection grade外壳防护等级
|
IP65
|
|
6
|
anti-corrosion class防腐等级
|
WF2
|
|
7
|
|
4.5
|
Method of use:
- open the electrical box, cable core is 1.5mm2, the three core cable sheath corrosion, high temperature resistance is connected in the socket of electric box, and installed an electric appliance box;
- Fixed transparency four snap open, remove the transparent part, and then the lamp bulb is arranged on the lamp holder (pay attention to good contact, assembly in place), covered with a transparent piece, the card buckle (note the transparent parts of the seal on the contact is good, smooth and reliable);
Support - lamps fixed by bolts in installation position, adjust the irradiation angle of light.
The matters needing attention:
Waterproof nut - outlet orifice must tighten;
- must be reliable grounding;
- replacement bulbs must be disassembled integrally;
- voltage must be within the specified range of use.
Quality assurance:
Companies in strict accordance with the ISO9001:2000 quality management system operation, products 7 years warranty (bulb is guaranteed for 3 years); the warranty period, any fault product under normal use, and the local contact our service center, the company is responsible for free repair, we will provide you with high quality, efficient service in 24 hours.
使用方法:
● 开电器箱，用线芯为1.5mm2，外皮防腐蚀、耐高温的三芯电缆接在电气箱内的插座上，并装好电器箱；
● 固定透明件的四个卡扣打开，卸下透明件，再将灯泡装在灯座上（注意接触良好，装配到位），盖上透明件，卡上卡扣（注意透明件上的密封条接触良好、平整可靠）；
● 灯具上的支架用螺栓固定在安装位置，调整好灯光照射角度。
注意事项:
● 出线孔口的防水螺母必须扭紧；
● 必须可靠接地；
● 更换灯泡必须整体拆下；
● 电压须在规定的使用范围内。
品质保证:
公司严格按照ISO9001：2000质量管理体系作业，产品实行7年保用（灯泡保用3年）；保用期内，产品正常使用下出现任何故障，可与我司当地服务中心联系，由本公司负责免费维修，我们将为你在24小时内提供优质、快捷的服务。
GTZM7200 no delay start a full range of energy-saving glareproof floodlight working lamp lighting and accessories
The scope of application
Apply to (electric power, metallurgy, mine, railway, port, municipal and other sectors) plant, plant, station, venues for flood lights use
GTZM7200无延时启动全方位节能防眩泛光工作灯 灯泡及配件
适用范围
适用于（电力、冶金、铁路、矿山、港口、市政等行业）厂区、厂房、场站、场馆等作泛光照明使用。
采用进口优质铝材，压铸成型，并采用多重防振结构设计，确保其在路高频震动中长期安全工作；
● 表面采用高科技静电喷涂技术，防腐性好，附着力强；
● 密封圈采用进口优质硅橡胶，特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、防水效果良好；
●进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封;
●采用优等品的吹制压花玻璃,可承受较大的温差变化,抗冲击性能强， 先进的照明光学原理优化设计，光线均匀、柔和、无眩光、无重影；
●可以实现冷、热态下瞬时再启动，即开即亮，保证应急照明正常；
●高度节能，达到同样光效，其耗能仅相当于气体放电灯的二分之一；
● 采用高光效、长寿命的特种光源, 功率因数大于0.99,寿命长达80000小时。
|
No序号
|
parameter Name参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage额定电压
|
V
|
220
|
|
2
|
|
40W
|
equivalent相当于MH75W
|
Luminous flux 光通量
|
lm
|
2400
|
|
平均使用寿命
|
h
|
80000
|
| |
|
|
|
| |
|
|
|
60W
|
equivalent相当于MH150W
|
|
|
4200
|
average service life 平均使用寿命
|
h
|
80000
|
|
|
|
|
|
|
|
|
|
|
3
|
Size外形尺寸
|
long长×wide宽×high高
|
mm
|
298×292×284
|
|
4
|
weight重量
|
kg
|
4.5
|
|
5
|
Shell protection grade外壳防护等级
|
IP65
|
|
6
|
|
WF2
|
|
7
|
Distance ratio距高比
|
4.2
|
Performance characteristics:
- shell
The use of imported high-quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, ensure the road in the high frequency vibration of long term safety work;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, sealing and surface coating treatment special, to ensure that the lighting in humid, high temperature and other harsh environment of corrosion, good waterproof effect;
- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;
Adopt the superior product blowing embossed glass, can bear larger changes in temperature, good anti impact performance, optimization design of lighting optical principle advanced, uniform, soft light, no glare, ghosting;
Cold, hot - can achieve instantaneous restart, instant bright, ensure the normal emergency lighting;
- high energy saving, to achieve the same light effect, its energy consumption is equivalent to only 1/2 of the gas discharge lamp;
Adopt the high luminous efficiency, long life of the special light source, power factor greater than 0.99, life for 80000 hours.
性能特点:
● 外壳
