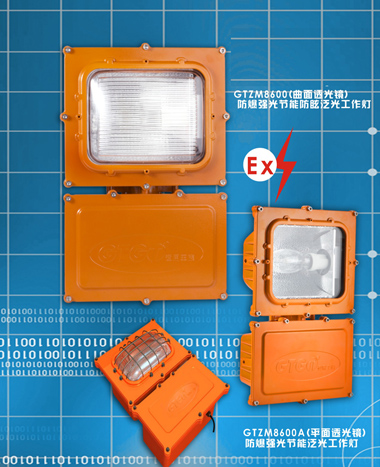

GTZM8600 (surface photic mirror) explosion-proof glareproof floodlight energy-saving working lamp lighting accessories
GTZM8600A (planar light transmitting mirror) explosion-proof glareproof floodlight energy-saving working lamp lighting accessories
The scope of application
Apply to (petroleum and chemical, electric power, railway, metallurgy, mines, ports, municipal and other sectors) plant, plant, station, venues, office space and railway tunnel, bridge and culvert for flood lights use.
GTZM8600(曲面透光镜)防爆强光节能防眩泛光工作灯 灯泡配件
GTZM8600A(平面透光镜)防爆强光节能防眩泛光工作灯 灯泡配件
适用范围
适用于（石油化工、电力、铁路、冶金、矿山、港口、市政等行业）厂区、厂房、场站、场馆、办公场所及铁路隧道、桥涵等作泛光照明使用。
Performance characteristics:
Fully in accordance with the national explosion-proof products standards of design and production, can be used in various inflammable and explosive places of work.
- shell adopts imported high quality aluminum, die-casting molding. Design on the use of one of the two cavity structure, light temperature from essentially solves the rise of fundamental effects on the appliance, and the use of multiple anti vibration structure design, to ensure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, sealing and surface coating treatment special, to ensure that the lighting in humid, high temperature and other harsh environment of corrosion, rust;
Reflector imported high - pure reflection mirror aluminum, high efficiency;
- transparent part adopts toughened advanced foreign technology processing, good anti impact performance, optimization design of lighting optical principle advanced, uniform, soft light, no glare, no ghosting;
- the gas discharge light source, high luminous efficiency, long life, power factor greater than 0.99, life for 80000 hours.
性能特点:
●完全按照国家防爆产品标准设计和生产，可在各种易燃易爆工作场所使用。
●外壳采用进口优质铝材，压铸成型。设计上采用一体两腔结构，从本质上解决光源温升对电器的根本影响，并采用多重防振结构设计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；
●表面采用高科技静电喷涂技术，防腐性好，附着力强；
●密封圈采用进口优质硅橡胶，特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
●反射器采用进口高纯镜面铝，反射效率高；
●透明件采用国外先进技术钢化处理，抗冲击性能好，先进的照明光学原理优化设计，光线均匀、柔和，无眩光、无重影;
● 采用高光效、长寿命的气体放电光源, 功率因数大于0.99,寿命长达80000小时。
|
No 序号
|
parameter name参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage额定电压
|
V
|
220
|
|
2
|
light source 光源
|
气体放电灯 gas discharge light
|
150w
|
|
lm
|
16000
|
|
average service life平均使用寿命
|
h
|
28500
|
|
400w
|
luminous flux光通量
|
lm
|
7500
|
|
|
h
|
28500
|
|
|
150w
|
luminous flux光通量
|
|
15000
|
|
|
|
10000
|
|
70w
|
|
|
7000
|
|
|
|
10000
|
|
3
|

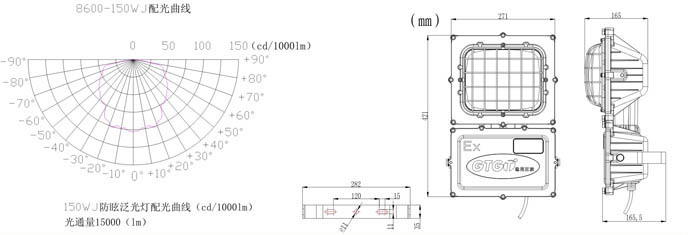

size外形尺寸
|
long长×wide宽×high高
|
mm
|
436×286×158
|
|
4
|
weight重量
|
kg
|
5.6
|
|
5
|
shell protection grade外壳防护等级
|
IP65
|
|
6
|
anti crossion grade 防腐等级
|
WF2
|
|
7
|
distance ratio距高比
|
4.2
|
| 8 |
Explosion proof grade防爆等级 |
Exd II B T4/T6 |
