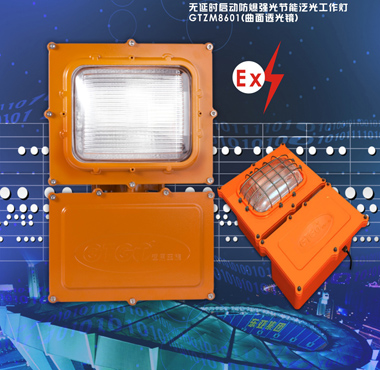

GTZM8601 (surface photic mirror) without delay to start the riot light energy-saving floodlight working lamp lighting accessories
GTZM8601(曲面透光镜）无延时启动防暴强光节能泛光工作灯 灯泡配件
The scope of application
Apply to (petroleum and chemical, electric power, railway, metallurgy, coal mine, mine / port, municipal and other industries) plant, plant, station, venues, and the railroad tunnel, bridge and culvert, the coal handling plank road, cable trench, the platforms of ordinary and the explosion sites for flood lights use.
Performance characteristics:
Fully in accordance with the national explosion-proof products standards of design and production, can be used in various inflammable and explosive places of work;
- shell adopts imported high quality aluminum, die-casting molding. Design on the use of one of the two cavity structure, light temperature from essentially solves the rise of fundamental effects on the appliance, and the use of multiple anti vibration structure design
Plan, ensure the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, sealing and surface coating treatment special, ensure lamps and lanterns in the humid, high temperature and other harsh environment of corrosion, rust;
- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;
Reflector imported high - pure reflection mirror aluminum, high efficiency;
- transparent part adopts toughened advanced foreign technology processing, good anti impact performance; optimization design of lighting optical principle advanced, uniform light, soft, no glare, ghosting;
Cold, hot - can achieve instantaneous restart, instant bright, ensure the normal emergency lighting;
- high energy saving, to achieve the same light effect, its energy consumption is equivalent to only 1/2 of the gas discharge lamp;
- the gas discharge light source, high luminous efficiency, long life, power factor greater than 0.99, life for 80000 hours.
适用范围
适用于（石油化工,电力、铁路、冶金、矿山/煤矿、港口、市政等行业）厂区、厂房、场站、场馆、及铁路隧道、桥涵、输煤栈道、电缆沟、作业平台等普通及防爆场所作泛光照明使用。
性能特点:
●完全按照国家防爆产品标准设计和生产，可在各种易燃易爆工作场所使用；
● 外壳采用进口优质铝材，压铸成型。设计上采用一体两腔结构，从本质上解决光源温升对电器的根本影响，并采用多重防振结构设
计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；
● 表面采用高科技静电喷涂技术，防腐性好，附着力强；
● 密封圈采用进口优质硅橡胶，特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
●进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封;
● 反射器采用进口高纯镜面铝，反射效率高；
● 透明件采用国外先进技术钢化处理，抗冲击性能好；先进的照明光学原理优化设计，光线均匀、柔和，无眩光、无重影；
●可以实现冷、热态下瞬时再启动，即开即亮，保证应急照明正常；
●高度节能，达到同样光效，其耗能仅相当于气体放电灯的二分之一；
● 采用高光效、长寿命的气体放电光源, 功率因数大于0.99,寿命长达80000小时。
|
No 序号
|
parameter name参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage额定电压
|
V
|
220
|
|
2
|
special light source 特种光源
|
40W
|
相当于MH75W
|
luminous flux 光通量
|
lm
|
2400
|
|
average service life平均使用寿命
|
h
|
80000
|
| |
|
|
|
| |
|
|
|
60W
|
相当于MH150W
|
|
|
4200
|
average service life平均使用寿命
|
h
|
80000
|
|
|
|
|
|
|
|
|
|
|
3
|
size外形尺寸
|
long长×wide宽×high高
|
mm
|
290×235×178
|
|
4
|
weight重量
|
kg
|
6.6
|
|
5
|
shell protection grade 外壳防护等级
|
IP65
|
|
6
|
|
WF2
|
|
7
|
distance rate距高比
|
3.2
|
| 8 |
Explosion proof grade 防爆等级 |
Exd IIB T4/T6 |
