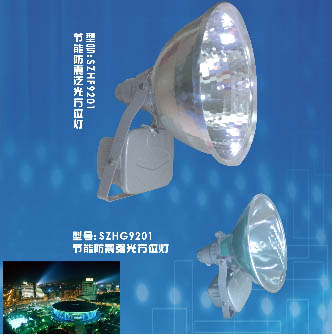

SZHF9201节能防震泛光方位灯 灯泡配件
SZHF9201 energy-saving shockproof floodlight range lamp fittings
SZHG9201 energy-saving shockproof floodlight azimuth lamp
SZHG9201节能防震泛光方位灯
The scope of application
Apply to (electric power, metallurgy, mine, railway, port, municipal and other sectors) plant, station, venues for flood lights use.
Performance characteristics:
- shell adopts imported high quality aluminum, die-casting molding, and the use of multiple anti vibration structure design, to ensure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding, high temperature resistance, corrosion resistance; sealing and surface coating treatment special, to ensure that the lighting in humid, high temperature and other harsh environment of corrosion, rust;
- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;
Reflector imported high - pure reflection mirror aluminum, high efficiency;
Adopt the advanced foreign technology of tempered glass, good anti impact performance;
The special light source can also leave namely namely bright in the bulb under the condition of high temperature, no need to wait for the light source cooling;
Using energy-efficient electric - gas discharge lamp, power factor greater than 0.9; special light source for electronic ballast, power factor greater than 0.99;
- the gas discharge light source, high luminous efficiency, long life.
Method of use:
1) will support the luminaire is fixed by the bolts in installation position;
2) the whole lamp connected to the use of the line, ensure reliable connection, adjust the irradiation angle of light.
The matters needing attention:
1) waterproof outlet orifice must tighten the nut;
2) must be reliable grounding;
3) voltage must be within the specified range of use.
4) the transparent center temperature is higher, not to touch.
5 quality assurance:
Company in accordance with the ISO9001:2000 international quality management system operation, products 6 years warranty (HPS and MH gas discharge lamp is guaranteed for 1 years, special light source is guaranteed for 3 years); in 6 years, any fault product under normal use, we will provide high quality and efficient service for you.
适用范围
适用于（电力、冶金、铁路、矿山、港口、市政等行业）厂区、场站、场馆等作泛光照明使用。
性能特点:
● 外壳采用进口优质铝材，压铸成型，并采用多重防震结构设计，确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；
● 表面采用高科技静电喷涂技术，防腐性好，附着力强；
● 密封圈采用进口优质硅橡胶，挤压后经二次硫化成型，耐高温、抗腐蚀；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
●进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封；
● 反射器采用进口高纯镜面铝，反射效率高；
● 采用国外先进技术钢化玻璃，抗冲击性能好；
●特种光源在灯泡高温状态下也能即开即亮，无需等待光源冷却；
●气体放电灯采用节能型电气，功率因数大于0.9；特种光源为电子镇流器，功率因素大于0.99；
●采用高光效、长寿命的气体放电光源。
使用方法:
1） 将灯具上的支架用螺栓固定在安装位置;
2） 将整灯具接在使用的线路上，保证连接可靠，调整好灯光照射角度。
注意事项:
1）出线孔口的防水螺母必须扭紧；
2）必须可靠接地；
3）电压须在规定的使用范围内。
4）透明件中心温度较高，不要触摸。
5 品质保证:
公司按照ISO9001：2000国际质量管理体系作业，产品实行6年保用（HPS、MH气体放电灯泡保用1年,特种光源保用3年）；在6年内，产品正常使用下出现任何故障，我们将为你提供优质、快捷的服务。
|

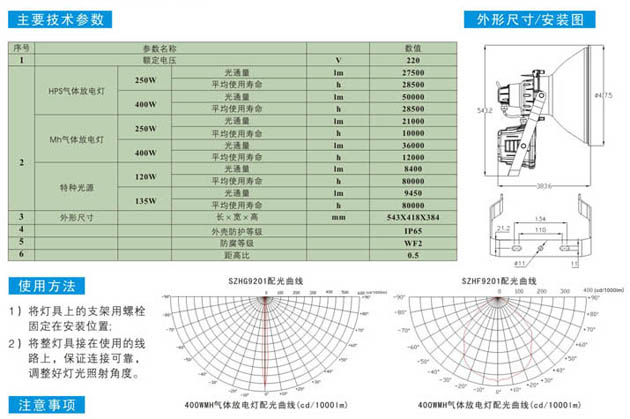

No
序号
|
parameter name 参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage 额定电压
|
V
|
220
|
|
2
|
light source
光源
|
|
150w
|
|
lm
|
16000
|
|
average service life平均使用寿命
|
h
|
28500
|
|
70w
|
luminous flux光通量
|
lm
|
7500
|
|
|
h
|
28500
|
|
|
150w
|
luminous flux光通量
|
|
15000
|
|
|
|
10000
|
|
70w
|
|
|
7000
|
|
|
|
10000
|
| |
special light特种光源120W |
luminous flux光通量
|
lm
|
8400 |
| |
|
|
h
|
80000 |
| |
special light特种光源135W |
luminous flux光通量
|
lm
|
9450 |
| |
|
|
h
|
80000 |
|
3
|
size外形尺寸
|
long长×wide宽×high高
|
mm
|
543×418×384
|
|
4
|
weight重量
|
kg
|
5.6
|
|
5
|
shell protection class 外壳防护等级
|
IP65
|
|
6
|
anti corrosion class 防腐等级
|
WF2
|
|
7
|
distance rate距高比
|
6.5
|
