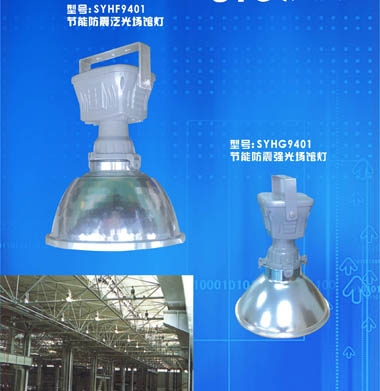

SYHF9401节能防震泛光场馆灯 灯泡配件
SYHF9401 energy-saving shockproof floodlight venues lamp bulb accessories
SYHG9401 energy saving lamp floodlight venues earthquake
SYHG9401节能防震泛光场馆灯
The scope of application
Apply to (electric power, metallurgy, mine, railway, port, municipal and other sectors) plant, plant, station, venues, office space and railway tunnel, bridge and culvert for flood lights use.
Performance characteristics:
- shell adopts imported high quality aluminum, die-casting molding. Make sure that the roadbed tracks, bridge and culvert tunnel in high frequency vibration of long term safe operation;
- surface using high-tech electrostatic spraying technology, good corrosion resistance, strong adhesion;
- the use of imported high-quality silicon rubber sealing ring, extrusion after two vulcanization molding, high temperature resistance, corrosion resistance; sealing and surface coating treatment special, ensure lamps and lanterns in the humid, high temperature and other harsh environment of corrosion, rust;
- imported stainless steel spring buckle, good elasticity, the restoring force is strong, light source to ensure reliable sealing cavity;
Reflector imported high - pure reflection mirror aluminum, high efficiency;
- adopts toughened advanced foreign technology processing, good anti impact performance;
The special light source can also leave namely namely bright in the bulb under the condition of high temperature, no need to wait for the light source cooling;
Using energy-efficient electric - gas discharge lamp, power factor greater than 0.9; special light source for electronic ballast, power factor greater than 0.99;
- the gas discharge light source, high luminous efficiency, long life.
适用范围
适用于（电力、冶金、铁路、矿山、港口、市政等行业）厂区、厂房、场站、场馆、办公场所及铁路隧道、桥涵等作泛光照明使用。
性能特点:
●外壳采用进口优质铝材，压铸成型。确保其在路基路轨、桥涵隧道等高频震动中长期安全工作；
●表面采用高科技静电喷涂技术，防腐性好，附着力强；
●密封圈采用进口优质硅橡胶，挤压后经二次硫化成型，耐高温，抗腐蚀；特殊的密封和表面涂层处理，确保灯具在潮湿、高温等恶劣环境中不腐蚀、不生锈；
●进口不锈钢弹簧搭扣，弹性好，回复力强，确保了光源腔的可靠密封；
●反射器采用进口高纯镜面铝，反射效率高；
●采用国外先进技术钢化处理，抗冲击性能好；
●特种光源在灯泡高温状态下也能即开即亮，无需等待光源冷却；
●气体放电灯采用节能型电气，功率因数大于0.9；特种光源为电子镇流器，功率因素大于0.99；
● 采用高光效、长寿命的气体放电光源。
|

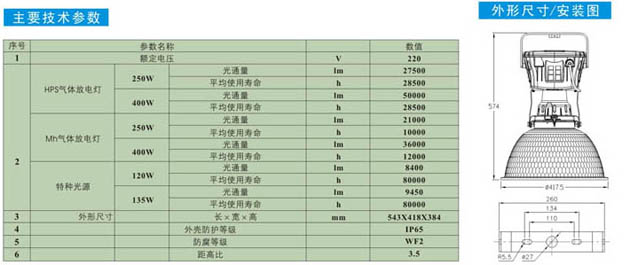

No
序号
|
parameter name参数名称
|
unit单位
|
value数值
|
|
1
|
rate voltage额定电压
|
V
|
220
|
|
2
|
light source
光源
|
气体放电灯 gas discharge light
|
250w
|
|
lm
|
27500
|
|
average service life平均使用寿命
|
h
|
28500
|
|
400w
|
luminous flux 光通量
|
lm
|
50000
|
|
|
h
|
28500
|
|
|
250w
|
luminous flux 光通量
|
|
21000
|
|
|
|
10000
|
|
400w
|
|
|
7000
|
|
|
|
10000
|
| |
特种光源120W |
luminous flux光通量
|
lm
|
8400 |
| |
|
|
h
|
80000 |
| |
特种光源135W |
luminous flux 光通量
|
lm
|
9450 |
| |
|
|
h
|
80000 |
|
3
|
size外形尺寸
|
long长×wide宽×high高
|
mm
|
543×418×384
|
|
4
|
weight重量
|
kg
|
5.6
|
|
5
|
shell protection class外壳防护等级
|
IP65
|
|
6
|
anti corrosion class 防腐等级
|
WF2
|
|
7
|
distance rate 距高比
|
6.5
|
