室内光缆分为两大类:
一类为跳接纤尾纤(单芯或双芯光纤)光缆,可以采用多模或单模光纤。
另一类为配线光缆(2或72芯)
两类光缆的基本元件类似，都采用直径900 ±50um紧套光纤，外绕芳纶提供加强，并最后挤塑阻燃PVC护套。为了区别的方便，护套的颜色取决与光纤的类型，桔色护套用于多模光纤(EIA-359-1,黄色护套用于单模光纤(EIA-359-A),这些光缆能用于智能楼宇布线系统，能提供满足防火标准的标准。比如压力通风管系统用光电缆(OFNP-UL910),上升光缆(OFNR-UL1666)或一般用途光缆(OFN-UL1581)对于楼房/室外光缆要求使用标准的中心束管式和松套层绞式结构，有时外加防火护套。
Two distinct categories,one being Patch Cord(single or dual fibre)and the other classified as Distribution cable (2 or 72 fibres).They can be supplied with multimode or singlemode fibres.
The principal components of the cables are similar.They utilise tight buffered fibres(diameter 900±500um)with an
outer covering of aramid yams to provide strength and then finally a flame retardant PVC sheath.To assist in
iden-tification the sheath colour depends on the type fibre within the cable.Orange colour for multimode fibres
(EIA-359-A) and yellow for singlemode fibres (EIA-359-A).These cables can also be used as risers(for cabling between floors).Cables can be supplied to meet specific fire protection standards,i.e.
Plenum calbe(OFNP-UL910),Riser(OFNR-UL1666)or General purpose cables(OFN-UL1581).
For Premise/Outdoor cable requirements then standard Central Loose Tube and Stranded Loose Tube products can be used,some-times with a fire-resistant sheath.
|

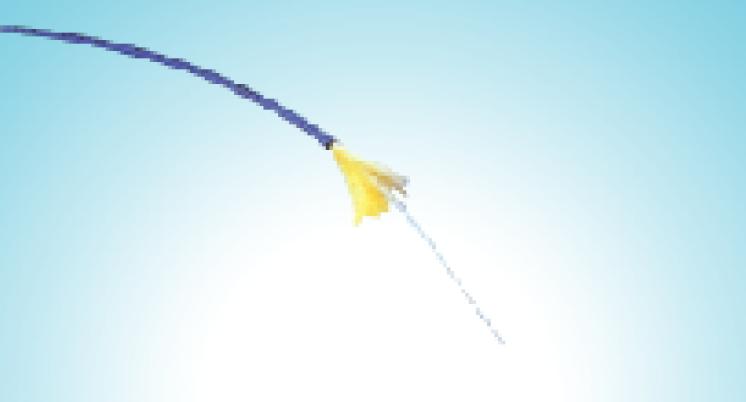

室内光缆--
单芯
|
INDOOR CABLE-SIMPLEX
|
|
光纤
Fibre
|
紧套单芯
Tight buffered single fibre
|
|
加强件
Strength member
|
芳纶丝
Aramid yams
|
|
护套
Sheath
|
低烟无卤LSOH
或Plenum, PVC
|
|

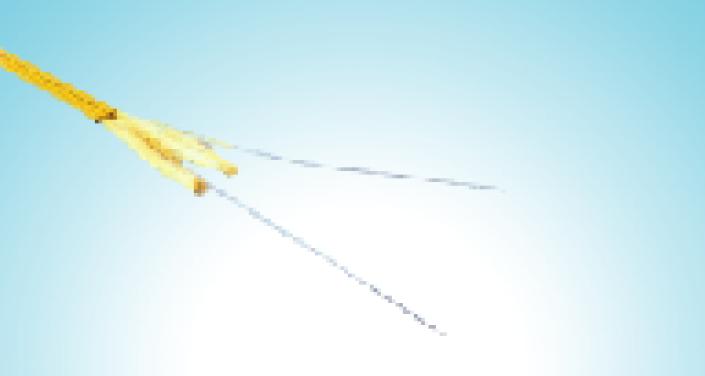

室内光缆-双芯
|
INDOOR CABLE-ZIPCORD
|
|
光纤数
Fibre count
|
紧套 Tight buffer
2芯或以上
|
|
加强件
Strength member
|
芳纶丝 Aramid yams
|
|
护套
Sheath
|
低烟无卤LSOH
或Plenum, PVC
|
名称Name 一或两根光纤,紧套至0.9mm外径。外绕芳纶纱,最后是低烟无卤LSOH或Plenum, PVC护套。One or two fibres,tight buffered to a di-ameter
of 0.9mm,Aramid yam applied around the perimeter and a PVC,LSOH
or Plenum sheath.

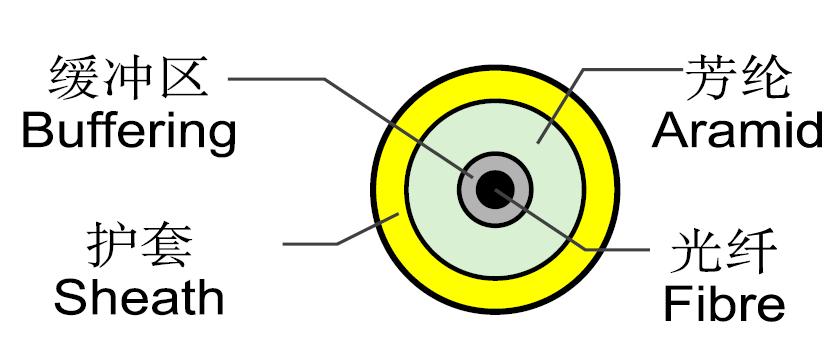

光缆截面 Cable cross section 芯数 1 Fibre Count1
光缆截面 Cable cross section 芯数 2 Fibre Count2
|
光缆外径(mm) Cable diameter
|
2
|
2.5
|
2.9
|
1.6x3.3
|
1.8x3.7
|
2x4.2
|
2.5x5.2
|
2.9x5.9
|
|
光缆重量(kg/km) Weight
|
PVC
|
3.4
|
6
|
7
|
5.3
|
5.3
|
7.5
|
11.9
|
13.6
|
|
LSOH
|
3.6
|
6.4
|
7.4
|
5.6
|
5.6
|
8
|
12.6
|
14.5
|
|
允许拉伸力,安装时(N) Max tension (installation)
|
220
|
220
|
|
允许拉伸力,运行时(N) Max tension (operation)
|
60
|
100
|
|
允许压扁力,安装时(N/cm) Allowable
crush force(installation)
|
500
|
|
允许压扁力,运行时(N/cm) Allowable
crush force(installation)
|
100
|
|
最小弯曲半径,安装时(mm)
Min,bend radius(operation)
|
50
|
20xD(D为光缆外径)
|
|
最小弯曲半径,运行时(mm)
Min,bend radius(operation)
|
30
|
10xD(D为光缆外径)
|
|
适用温度
Operating temperature
|
-20℃~ 70℃
|
|
适用于室内收数据传输设备 For connections to indoor data equipment
|
|
注:配线光缆的光纤芯数可达到: 24F,48F,72F
Note:Distribution Cable's fiber no.up to:24F,48F,72F
|
|

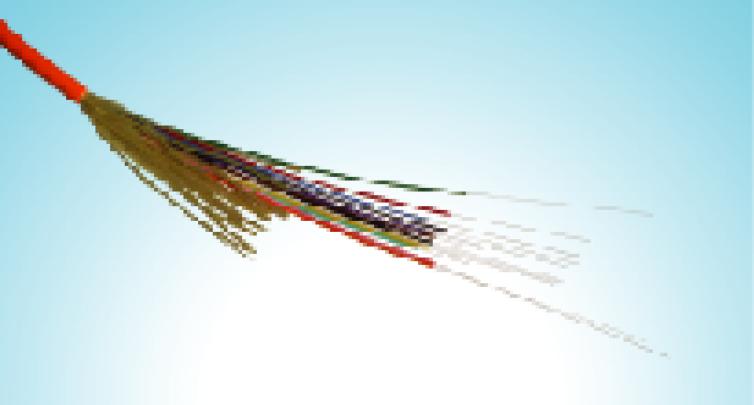

室内光缆—多芯
|
INDOOR CABLE-DISTRIBUTION
|
|
光纤数 Fibre count
|
2-72
|
|
光纤保护 Fibre protection
|
紧套单芯 Tight buffered single fibre
|
|
加强件 Strength member
|
芳纶丝 Aramid yams
|
|
护套 Sheath
|
低烟无卤LSOH 或Plenum, PVC
|
|
|
型号 Type 室内光缆—多芯 INDOOR CABLE-DISTRIBUTION
|
|
|
名称 Name 紧套光纤,0.9mm外径,数根,芳纶纱绕包构成缆芯。最后是低烟无卤LSOH或Plenum, PVC护套。Tight buffered fibres, di-ameter 0.9mm,formed in a group with Aramid yam to form the cabel core, outer sheath of PVC,LSOH
or Plenum .
|
|
|

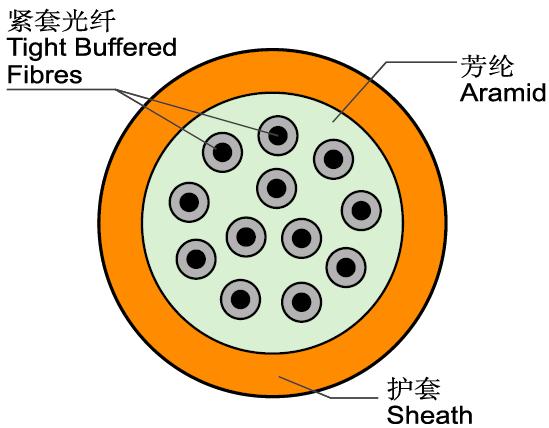

光缆截面图 Cable cross section
|
|
芯数Fibre count
|
2
|
4
|
6
|
8
|
12
|
|
光缆外径(mm) Cable diameter
|
4.8
|
4.8
|
4.8
|
5.4
|
6.2
|
|
光缆重量(kg/km) Weight
|
PVC
|
17.1
|
18.8
|
20.4
|
24.9
|
30.9
|
|
LSOH
|
18
|
19.8
|
21.6
|
27.8
|
32.8
|
|
允许拉伸力,安装时(N) Max tension (installation)
|
440
|
|
允许拉伸力,运行时(N) Max tension (operation)
|
110
|
|
允许压扁力,安装时(N/cm) Allowable crush force(installation)
|
1000
|
|
允许压扁力,运行时(N/cm) Allowable
crush force(installation)
|
300
|
|
最小弯曲半径,安装时(mm)
Min,bend radius(operation)
|
20xD(D为光缆外径)
|
|
最小弯曲半径,运行时(mm)
Min,bend radius(operation)
|
10xD(D为光缆外径)
|
|
适用温度
Operating temperature
|
-20℃~ 70℃
|
|
适用于室内配线 For indoor distrution
|
|
注:配线光缆的光纤芯数可达到: 24F,48F,72F
Note:Distribution Cable's fiber no.up to:24F,48F,72F
|
