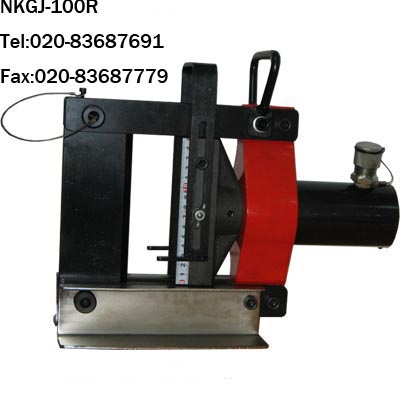

NKGJ-100 copper bar bending machine NKGJ-100铜排弯曲机
铜排弯曲机NKGJ-100：卧式曲板工具，分离式操作，
可配合各种泵浦进行操作；
所弯曲的铜、铝排最大尺寸为10mm×150mm；
本机配有可调式平衡杆，方便小铜排的使用；
在本机底座上标有刻度，弯曲角度需操作者自行控制；
本机吨位大，弯曲弧度大，导电良好，弯曲的最小角度为90°。
型式卧式最新式出力20TON 铜排宽150mm 最大板厚10mm

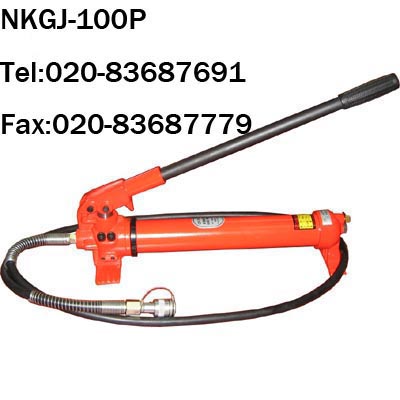

NKGJ-100P copper bar bending machine pump NKGJ-100P 铜排弯曲机泵浦
NKGJ-200 copper flat vertical bending machine (horizontal and vertical bending machine combination)
NKGJ-200铜排平立折弯机(平立弯机组合)
Bar bending machine (flat vertical bending machine combination) NKGJ-200 (Figure):
One, overview
Copper and aluminum vertical bending, bending of a dual-purpose multifunctional
Distribution board, switch box bus manufacturing hydraulic tools
Double action and single action hydraulic cylinder separation design and easy to carry
Function description:
(1) the oil pressure type vertical bending bar bending machine NKGJ-200
(2) attached with electric pump double loop LCTE-25AD, LDYB-63AB
These two sets of essential facilities, pumping must be double loop before use.
Two, the characteristics of the product
(1) the innovation of double loop hydraulic cylinder, oil inlet and return quickly, avoid the spring metal fatigue phenomenon.
(2) bending radian beautiful not wrinkle.
(3) portable design considerations, hollow round face beautiful, suitable for tensile mechanics.
(4) the product oil cylinder antirust paint handling, beautiful dazzling.
(5) the rugged, wing plate and heat treated, exempt from the aperture deformation formed doubts.
(6) the vertical bending, flat bending is bent copper bar radian conforms to the national standard GB.
(7) the design of bending scale display angle gauge, accuracy and avoid angle is too large and too small.
The body width can be reduced, but the oil cylinder to increase the tonnage.
Applies to iron row 50*5mm, 60*6mm vertical bending.
Output: 27TON
Format: double loop hydraulic
The maximum width of copper (MM) 40, 50, 60, 80, 100, 125
The largest copper thickness (MM) of 6, 8, 10, 12.5
With 7 sets of mould
铜排折弯机(平立弯机组合)NKGJ-200（附图） :
一、概述
铜铝排立弯、平弯一机两用多功能
配电盘、开关箱母线加工液压工具
复动式与单动油压缸分离设计携带方便
功能说明：
（1） 油压式立弯铜排曲机NKGJ-200
（2） 附配电动式泵浦双回路LCTE-25AD、LDYB-63AB
以上这两套必需配套,泵浦须双回路才可使用.
二、产品特性
(1) 创新双回路油压缸，进、回油快速，避免弹簧金属疲乏现象。
(2) 弯曲弧度漂亮不折皱。
(3) 轻便设计考量，挖空美丽的圆面，适合抗张力学。
(4) 产品油缸部分防锈烤漆处理，漂亮光彩夺目。
(5) 坚固耐用，机翼板并经热处理，免除孔径变形形成疑虑。
(6) 立弯、平弯被弯曲铜排弧度合乎GB国家标准。
(7) 设计有弯曲刻度显示角度规，准确度避免角过大与过小。
机体宽度可以缩小，但油压缸须加大吨位。
适用于铁排50*5mm、60*6mm立弯。
出力：27TON
形式：双回路油压式
铜排宽度最大（MM）40、50、60、80、100、125
铜排厚度最大（MM）6、8、10、12.5
附7组模具
Standard equipment: electric pump, cut off, perforation, flat bending tool
Hydraulic job specification:
Perforation tool CH-60 copper bar width 150mm/ thickness 10mm, die four groups: aperture 3/8 "(10.5mm), 1/2 (13.8mm)," 5/8 "(17mm), 3/4 (20.5mm).
Cutting tool CWC-150V copper bar width 150mm/ thickness 10mm, (copper flat without end)
Flat bending tool CB-200A copper bar copper bar width 150mm, thickness 10mm
Perfect consideration to avoid the waste of manpower, time and labor saving, consistent with the work flow, make personnel handy, produce high efficiency, high-quality perfect works.
标准配备:电动泵浦、切断、穿孔、平弯工具
液压工作规范：
穿孔工具 CH-60 铜排宽度150mm/厚度10mm，模具四组：孔径3/8〞（10.5mm）、1/2〞（13.8mm）、5/8〞（17mm）、3/4〞（20.5mm）
切断工具 CWC-150V 铜排宽度150mm/厚度10mm，（铜排平坦不必端平）
平弯工具 CB-200A铜排宽度150mm，铜排厚度10mm
完美的考量避免人力浪费，节省工时，符合一贯作业的流程，让人事人员得心应手，产生高效率、高品质的完美作品。
NKGJ-400 four bus combined machine for processing (cutting, piercing, bending, vertical bending)
Standard equipment: electric pump, cut off, perforation, flat bending, vertical bending tool
Hydraulic job specification:
Perforation tool CH-60 copper bar width 150mm/ thickness 10mm, die four groups: aperture 3/8 "(10.5mm), 1/2 (13.8mm)," 5/8 "(17mm), 3/4 (20.5mm).
Cutting tool CWC-150V copper bar width 150mm/ thickness 10mm, (copper flat without end)
Vertical, flat bending tool CB-125D bending, vertical bending two functions, aluminum, copper bar width of 40, 50, 60, 80, 100, 4, 5, 125mm, thickness of 6, 8, 10, 12.mm
This product is a professional design integrated machine combined multiple functions, perfect consideration to avoid the waste of manpower, time and labor saving, consistent with the work flow, make personnel handy, produce high efficiency, high-quality perfect works.
标准配备:电动泵浦、切断、穿孔、平弯、立弯工具
液压工作规范：
穿孔工具 CH-60 铜排宽度150mm/厚度10mm，模具四组：孔径3/8〞（10.5mm）、1/2〞（13.8mm）、5/8〞（17mm）、3/4〞（20.5mm）
切断工具 CWC-150V 铜排宽度150mm/厚度10mm，（铜排平坦不必端平）
立、平弯工具 CB-125D平弯、立弯二种功能，铝、铜排宽度40、50、60、80、100、125mm，厚度4、5、6、8、10、12.mm
本品是一体机组合多项功能的专业设计，完美的考量避免人力浪费，节省工时，符合一贯作业的流程，让人事人员得心应手，产生高效率、高品质的完美作品。
Bar bending machine NKGJ-100: horizontal curved plate tool, separated operation,
It can work with all kinds of pump operation;
The maximum size of row bent copper and aluminum is 10mm * 150mm;
This machine is equipped with adjustable balance rod, convenient use and small copper;
Graduations are marked on the machine base, to the operator to control the bending angle;
This machine tonnage, bending radian, good electrical conductivity, minimum bending angle is 90°.
The latest 20TON type horizontal output copper bar width 150mm maximum thickness of 10mm
