Single stainless steel Armoured Optical Fiber Jumper patch cords
Doube Armoured Optical Fiber Jumper patch cords

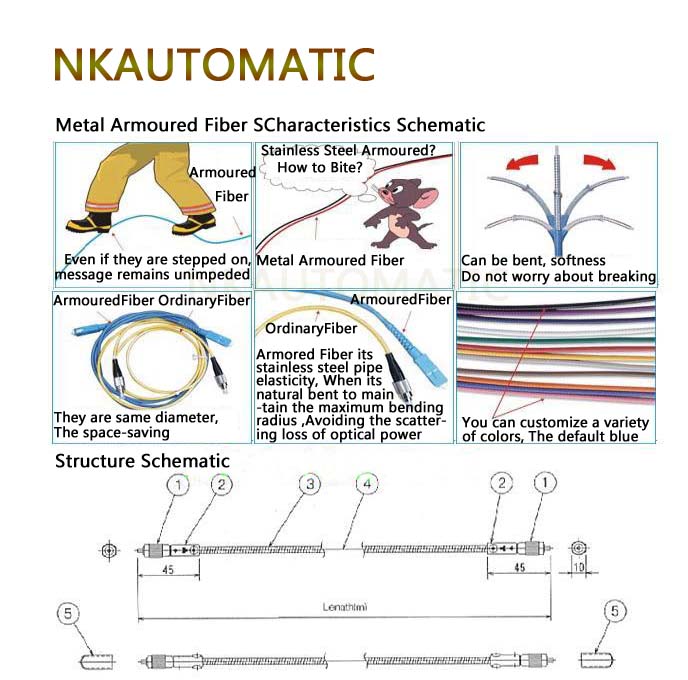

Metal Armoured and stainless steel Armoured Optical Fiber Jumper use in Telecommunication Webcamera,Can be bent, softness, Not easy to break and bite and do not worry about breaking,

ArmouredFiber and OrdinaryFiber ,They are same diameter, the space-saving
Armored Fiber Jumper its stainless steel pipe elasticity,When its natural bent to maintain the maximum bending radius
 Thus avoiding the scattering loss of optical power,You can customize a variety of colors, the default blue
D4 DIN E2000 FC LC MTRJ MU SC SMA ST LC Fiber optic patch cords

Note: IF You Want Customized ,contact usFiber optic patchcords

• Low insertion loss and back reflection
• Easy handling, good exchangeability
• Compliant with Telcordia standards

• Connector type: FC, SC, LC, MU, MTRJ, E2000, MPO, hybrid
• Simplex, duplex
• Single-mode: Default PC,     (CustomizedUPC, APC; multi-mode: PC)
• Fiber outer diameter (mm):Default3.0        (Customizedorder 0.6, 0.9, 1.6, 1.8, 2.0, 2.4, 2.8, 2.9, 3.0, Mid ZIP 2.0, ZIP 3.0)
• Fiber length (m): 3m       (customized the other)

The design concept of armored fiber jumper is committed to "optical fiber jumper like a wire like ease of use". Its biggest area with traditional optical fiber jumper don't is it aiming at the shortcomings of the fiber is easy to break and is easy to be damaged, a specially designed production a small flexible stainless steel casing to protect the fiber, thus obtaining the zhanglijiang resistance, side pressure resistance, bending resistance, resistant to repeated bending, anti rat Jiao and other good characteristics; and on the external casing flame retardant PVC coating, moisture-proof and fireproof functions to achieve. This soft and rigid double protection, so that information smoothly. In addition, the unique design makes the fiber cloth construction mode become more convenient, reduce the loss in the process of construction, and improve the service life of the optical fiber connector.



characteristic
1) stainless steel door stolen armor, with anti Zhang Liqiang resistance, pressure, bending resistance, resistance to repeated bending, anti rat Jiao advantages.
2) good softness, and the diameter and the ordinary jumper, save space.
3) when the external force acts on the metal clad fiber jumper can avoid fiber stress, ensure the stable operation of the system of optical path.
4) as the wire like ease of use, make the wiring work easier.

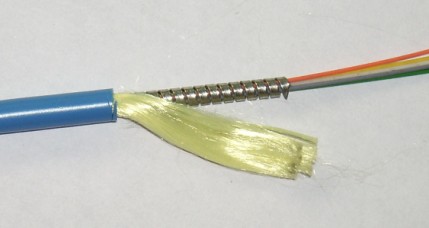

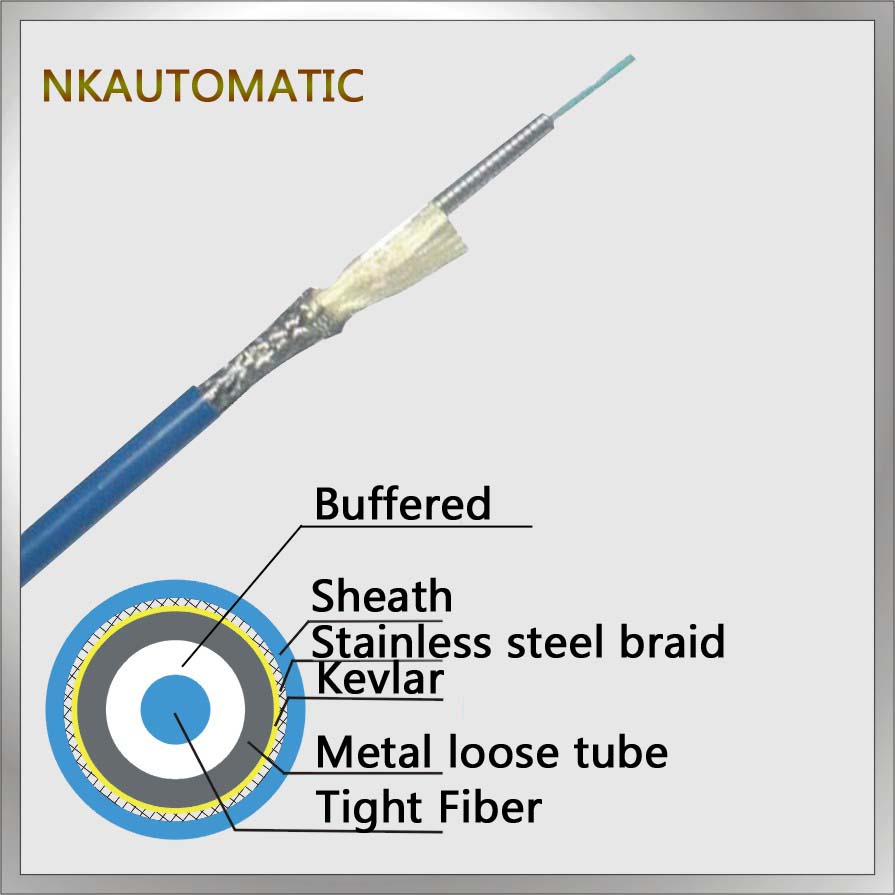

Cable structure:
High strength aramid reinforcement, to ensure that there is no tensile strain of the fiber, the cable standard by applicable to various connector parts of the application, the use of combustion, environmental protection, high temperature cable cladding material, the small, light weight, bending performance with high flexibility.

The scope of application:
1, applicable to the outer edge of the indoor walls, top, sandwich and catheter connected directly distributed optical cable, with standard and solid structure design and production of communication equipment pigtail and connecting wire can be directly used for the connection between devices.
2, the level of indoor wiring, building vertical wiring, LAN net, which is suitable for the information connection, recommend the use of in and end users directly connected to the occasion.
3, Between the  buildings, outdoor area, backbone cabling; outdoor wiring directly into the room, reduce the cost.
4, as the tail cable backbone, directly from the backbone network access to the device in the building, the isolation

lightning, improve system reliability.
5, the minimum bending with small wiring for large capacity, multi client interior laying, unit, and independent branch of use, can be conveniently with the end device.
6, recommended for high density wiring, installation space and installation occasions with small curvature.





Double armoured pigtail Trinidad and Tobago core fiber patchcord waterproof 10G fiber
Various kinds of optical fiber connector
Characteristic
Threaded connection
Low insertion loss, high return loss
- single or dual core
Single mode or multimode
Meet 3D requirements
According to the requirements of making transfer jumper -
- multi core connecting head according to the demand of production
- can be used as a pigtail use
Meet GR-326-CORE requirements
- Application
-ODF transmission system
Optical communication equipment connection
A telecommunications network
- LAN
Cable television
High speed, large capacity SDH optical fiber transmission system
