Solar LED Underground & Street Lamp

Product Name	LED solar underground lamp	LED solar underground lamp
Model	NKDT-210×55L	NKDT-180×55L
Specification	Φ210×55mm	Φ180×55mm
Material	Stainless steel , Cast aluminum	Stainless steel , Cast aluminum
Solar cell power	1.3Wp	1.0Wp
Light source	LED	LED
Light source Color	White	White
	(red, yellow, blue, green, multi-color and so on)	(red, yellow, blue, green, multi-color and so on)
Control mode	Light control	Light control
Work time	Continuously for 3-4 rainy days	Continuously for 3-4 rainy days
Work temperature	-20℃－＋60℃	-20℃－＋60℃
Battery	Ni-Cd or Ni-MH	Ni-Cd or Ni-MH
Protection level	IP67	IP67
Net weight	1.6kg	1.2kg
Unit packing size	215×215×60mm	185×185×60mm
Packing QTY	10pcs/box	10pcs/box

Product Name	LED solar underground lamp	LED solar underground lamp

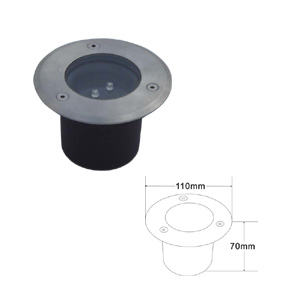

Model	NKDT-160×55L	NKDT-110×70L
Specification	Φ160×55mm	Φ110×70mm
Material	Stainless steel , Cast aluminum	Stainless steel , Cast aluminum
Solar cell power	0.8Wp	0.3Wp
Light source	LED	LED
Light source Color	White	White
	(red, yellow, blue, green, multi-color and so on)	(red, yellow, blue, green, multi-color and so on)
Control mode	Light control	Light control
Work time	Continuously for 3-4 rainy days	Continuously for 3-4 rainy days
Work temperature	-20℃－＋60℃	-20℃－＋60℃
Battery	Ni-Cd or Ni-MH	Ni-Cd or Ni-MH
Protection level	IP67	IP67
Net weight	0.9kg	0.5kg
Unit packing size	165×165×60mm	115×115×75mm
Packing QTY	10pcs/box	10pcs/box

Product Name	LED solar underground lamp
Model	NKDT-105×105×60L
Specification	105×105×60mm
Material	Stainless steel , Cast aluminum
Solar cell power	0.5Wp
Light source	LED
Light source Color	White
	(red, yellow, blue, green, multi-color and so on)
Control mode	Light control
Work time	Continuously for 3-4 rainy days
Work temperature	-20℃－＋60℃
Battery	Ni-Cd or Ni-MH
Protection level	IP67
Net weight	0.5kg
Unit packing size	110×110×65mm
Packing QTY	10pcs/box

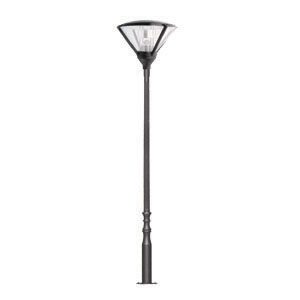

Product Name	LED solar street light	LED solar street light
Model	NKLT-420L01	NKLT-150L01
Operation voltage	DC12V	DC12V
Mounting height	4-8m	4-8m
Light source	LED	LED
Light source power	42W	15W(5W,7.5W,10W)
Solar cell power	160Wp	60Wp
Battery	150AH/12V	65AH/12V
Center illuminance	3.5M:42LUX  4M:26LUX	8M:3LUX  6M:6LUX
	5M:18LUX  6M:13LUX	5M:8LUX  4M:13LUX
Luminous flux	3200LM	1100LM
Control mode	Light control	Light control
Circuit protection	Overcurrent, overvoltage, temperature	Overcurrent, overvoltage, temperature
Battery assemble way	Underground	Underground
Color temperature	3200K/5600K	3200K/5600K
CRI	Ra>75	Ra>75
LED Irritation Angle	120°(90°)	120°(90°)
Working temperature	－30℃～50℃	－30℃～50℃
Working humidity	10％～90％	10％～90％
Storage temperature	－40℃～80℃	－40℃～80℃
LED Lifespan	>50000H	>50000H
Outline dimension	505×308×80mm	510×220×145mm
Protection level	IP65	IP65
Applied range	local road, local road and local road junction, shopping centre, dwelling district, villa, backroad, parks, square, industrial enterprise etc.	Shopping centre, dwelling district, villa, backroad, parks, square, industrial enterprise etc.
