PRYSMIAN non metallic pipeline flame-retardant cable GYFTY
PRYSMIAN (Bi Ruili) is one of the world's top manufacturer in the field of communication, its products include: optical fiber, optical cable, optical amplifier, optical submarine cable system and optical device. These ensure that PRYSMIAN provides not only the appropriate cable, and the whole optical communication system. PRYSMIAN provides comprehensive services from design, R & D and production and support for the operation of optical fiber network technology.
PRYSMIAN has more than 130 years of production experience, and has production plants in 4 continents, 12 countries in the world, the PRYSMIAN has become the backbone of the international market, but also to ensure that the persistence of the supply capacity and high-end service ability.
PRYSMIAN is the only global technology also has 3 kinds of manufacturing fiber: MCVD (modified chemical vapor deposition method), OVD (gas phase deposition method) and VAD (axial vapor deposition). PRYSMIAN has its unique status in the three major manufacturing process, so as to ensure that our products are suitable for optical fiber application environment of different.
The PRYSMIAN global optical fiber and optical cable, optical amplifier, optical submarine cable system and optical device manufacturing enterprises

PRYSMIAN非金属管道阻燃光缆GYFTY

PRYSMIAN(比瑞利)在通信领域也是世界上顶级的厂家之一，其产品包括：光纤、光缆、光放大器、海底光缆系统以及光器件。这些确保PRYSMIAN提供的不光是合适的光缆，还有整套光通信系统。PRYSMIAN提供的全面服务从设计、研发及生产以至对投运光缆网络的技术支持。

PRYSMIAN拥有130多年的生产经验，以及在全球4个大洲、12个国家拥有生产企业，使PRYSMIAN已成为国际市场的中坚力量，同时也确保了其供应能力以及高端服务能力的持续性。

PRYSMIAN是全球唯一同时拥有3种光纤制造工艺技术：MCVD（改进的化学气相沉积法）、OVD（外气相沉积法）和VAD（轴向气相沉积法）。PRYSMIAN在三大制造过程中有其独特的地位，从而确保我们的光纤产品适合于不同的环境应用。

PRYSMIAN遍布全球的光纤、光缆、光放大器、海底光缆系统以及光器件生产企业

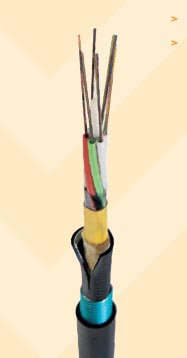

PRYSMIAN电力松套层绞式非金属管道阻燃光缆GYFTY

室外光缆

OUTDOOR OPTICAL FIBRE CABLES

松套层绞式非金属光缆

Loose Tube Stranded

Non-metallic Optical Fibre Cable

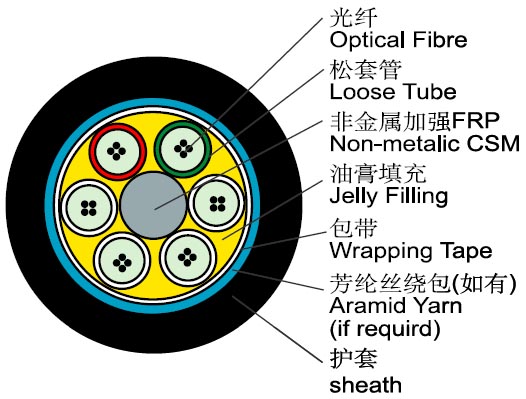

采用高强度玻璃纤维增强塑料FRP为非金属中心加强件，周围合理地SZ绞或螺旋绞合光纤松套管或填充绳，每根松套管内装有2~12根全色谱光纤，缆芯外挤制聚乙烯护套，根据需要在缆芯与护套间绕包芳纶纱束。缆内所有间隙充有触变型防水防潮油膏。光缆最大芯数可达216芯，还可选用阻燃、防蚁护套材料。

Non-metallic central strength member,Loose tubes or fillers SZ or helically stranded around the strength member.Each loose tube contains 2~12,fully colour coded fibres.Then a PE sheath.

Tubes and cable interstices are filled with water blocking jelly.According to requirements,aramid can be applied between the cable core and sheath for additional strength.Designs for up to 216 fibres are also available.Alternative sheath materials are also available.

管道-架空

	DUCT-AERIAL
型号- Type	GYFTY、GYFDTY
光纤数 Fibre count	最大216芯-up to 216
光纤保护-Fibre protection	松套管-loose tube
中心加强件-Central strength member	金属或非金属 - Metallic or non-metallic
阻水-Water blocking	填充油膏-Filling compoound
外围加强件-Peripheral strength member	芳纶丝或玻璃纱(如要求)-Aramid or glass yams(if required)
外护套-Outer sheath	PE

型号 Type	GYFTY
名称 Name	松套层绞填充式通信用非金属室外光缆：FRP非金属加强构件、松套层绞填充式、芳纶丝（如要求），聚乙烯护套通信用室外光缆。 FRP strength member,stranded loose tube,filled,Aramid yarn(if required)PE sheathed,outdoor optical fibre cable.
芯数 Fibre count	2~24	26~48	50~60	60~72	74~96	98~120	122~144
光缆外径(D) (mm) Cable weight	14.2	14.8	15.6	16.3	17	18.3	19.8
光缆重量(kg/km) Cable weight	216	235	254	272	312	350	396
允许拉伸力(N) Allowable tension	1500(3000)
允许压扁力(N/10cm)Allowable crush force	1000
最小弯曲半径(mm) Min.bending radius	12.5D
适用温度等级Applicable temperature	— 40^oC~+70^oC (温度附加衰减不大于0.05dB/km) Additiond attenuation is not more than 0.05dB/km
用途Application	适用于强电磁危害地区管道及架空敷设 For regions with strong electrical interference,duct and aerical applications。
