Infrared thermal imaging NKTEV6000 on-line monitoring system, including on-line infrared thermal imager, also including video monitoring module, the infrared image processing Information processing module and system maintenance management module, video monitoring processing module described including communication and control subsystem and infrared imaging and temperature measuring And control subsystem, communication subsystem implementation on site on-line infrared thermal imager, visible light CCD and yuntai servo control, and data  Link set up and control, infrared imaging and temperature measuring subsystem including temperature measurement, record, alarm and SMS platform system, realize the temperature measurement, alarm and   By SMS alarm message platform,




     红外热成像在线监测系统NKTEV6000，包括在线式红外热成像仪，还包括视屏监控处理模块、红外图像

信息处理模块和系统管理维护模块，所述的视屏监控处理模块包括通信及控制子系统和红外成像及测温

子系统，通信及控制子系统实施对现场在线式红外热成像仪、可见光ＣＣＤ和云台伺服的控制，和数据

链路的设置与控制，红外成像及测温子系统包括测温、记录、报警与短信平台系统，实现测温、报警及

通过短信平台传递警报信息，

Infrared image information processing module including the infrared image analysis system, the auxiliary fault diagnosis system , infrared and visible light video processing system, the system maintenance management module includes typical infrared image library management system, equipment heat failure  Query, statistic and report system and business system interface with existing systems.

其中红外图像信息处理模块包括红外图像分析系统、故障辅助诊断系统、红外和可见光视频处理系统，所述的系统管理维护模块包括设备热故障典型红外图像库管理系统，管理查询、统计和报表系统和与现存业务系统接口系统。



To overcome the deficiency of the portable infrared imaging, a manual check  Test and system test, the combination of do for real-time monitoring of power equipment, and to ensure that monitoring scope or specified target device of infrared thermal image monitoring,The temperature field of the edition, storage and analysis of data, with automatic checking, automatic warning, accurate, high speed, the characteristics of the remote monitoring.Far distance monitoring thermal imager

从而克服了便携式红外成像的不足，实行人工检

测与系统检测相结合，做到对电力设备实时监测，确保监测范围或指定的目标设备红外热图像的监控、

温度场的数据的采录、存储及分析，具有自动巡检、自动预警、准确化、高速化、远程监控的特点。

中远距监控热像仪

Widely used in

Airport security monitoring, aviation facilities, important administrative center, the vault of a bank, confidential room, the conflict, prisons, cultural relics, guns, ammunition, dangerous goods library and other important places, etc, in order to prevent theft, monitoring measures must be taken. And these places, due to fire, explosion, light resistant to corrosion of cultural relics or some other reasons, are not allowed to use lamplight illume, have to consider a night vision equipment, so especially suitable for the infrared thermal imager, you can running 24 hours a day.

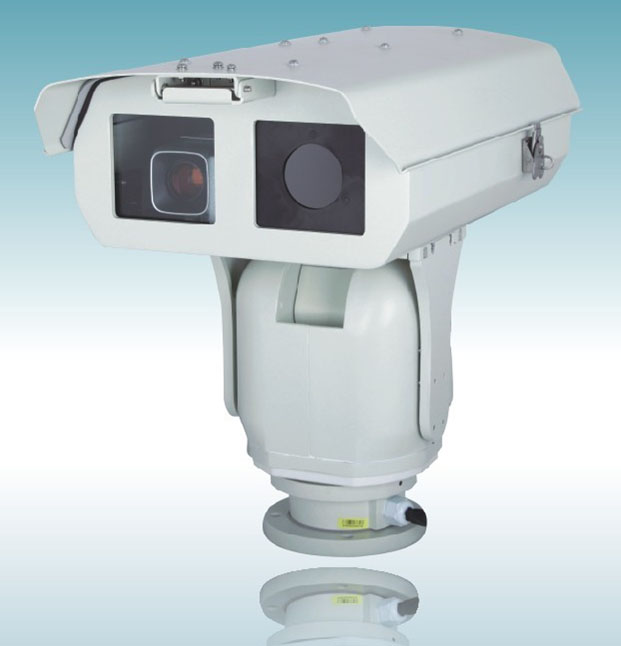

NK30A - 75 PTZ, uncooled focal plane array, 384 x28875mm electric field Angle (horizontal) 7.3 x5.5 (vertical), the spatial resolution of 0.33 mrad, thermal sensitivity < 80 mk @ 25 ℃, images shot frequency 50 hz (PAL) / 60 hz (NTSC), video output RS170 CCIR/PAL composite video, horizontal Angle 0 ° to 355 °; Speed is 0.1 ° ~ 60 ° S/S protection grade IP67 alarm output interface RS - 232/422 (optional), switch alarm output, the detection distance of 5.25 km

Long-distance infrared thermal imager




广泛应用于
机场安全监测、民航设施、重要的行政中心、银行的金库、机要室、军事要地、监狱、文物、枪支弹药库、危险物品库等重要场所等地，为了防止被盗，必须采取监控措施。而这些场所，由于消防、防爆，防光对文物的腐蚀或者其它一些原因，不允许用灯光照明，就得考虑采用夜视器材，所以特别适合红外热像仪，可以24小时处于运行状态。

NK30A-75 PTZ,非制冷焦平面阵列,384x28875mm 电动视场角7.3(水平)x5.5（垂直）,空间分辨率0.33mrad,热灵敏度＜80mk@25℃,图像祯频50Hz(PAL) / 60Hz(NTSC),视频输出RS170 CCIR/PAL 复合视频,水平角度0°-355°；速度 0.1°/S～60°/S防护等级　IP67接口RS-232/422　报警输出（可选）,开关量报警输出, 探测距离5.25km

远距离红外热像仪



NK30B - 100 PTZ mainly used in forest fire prevention, coastal defense, frontier defense, more wide area

Uncooled focal plane array 384 x288 lens viewing Angle (horizontal) x4 5.5 100 mm (vertical) the spatial resolution of 0.25 mrad, thermal sensitivity < 80 mk @ 25 ℃, images shot frequency 50 hz (PAL) / 60 hz (NTSC), video output RS170 CCIR/PAL composite video, horizontal Angle 0 ° to 355 °; Speed 0.1 ° ~ 60 ° / S/S, 22 x optical zoom in 16 x electronic amplification, protection grade IP66, alarm output (optional) the switch quantity alarm output. The detection range 8 km recognition from 2.5 km (of people)


NK30B-100 PTZ 主要用在森林防火，海防，边防，范围比较广的区域
非制冷焦平面阵列 384x288 镜头100mm 视场角5.5(水平)x4（垂直）空间分辨率0.25mrad ,热灵敏度＜80mk@25℃,图像祯频50Hz(PAL) / 60Hz(NTSC),视频输出RS170 CCIR/PAL 复合视频,水平角度0°-355°；速度 0.1°/S～60°/S ,22×光学放大  16×电子放大 ,防护等级IP66,报警输出（可选）开关量报警输出  .探测距离8km识别距离2.5km(对人)
