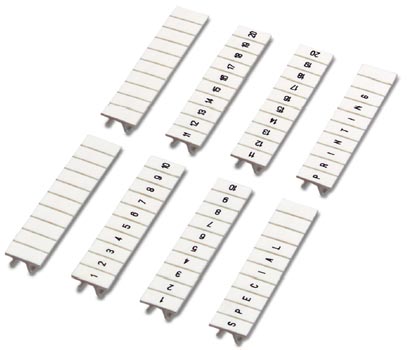

Marker for phoenix contact UK Terminal block Zackband ZB plastic tags Zack Marker Strip   ABCDEFGHIJKLMNOPQRSTUVWXYZ+-& 0123456789 10   label printing

ZB4  vertical or horizontal -for -UK1,5   (order  Number 1303241 ,1303242)

ZB5  vertical or horizontal -for -UK2,5 UK3N  (order  Number 1303251,1303252)

ZB6  vertical or horizontal -for -UK5N               (order  Number 1303261,1303262)

ZB8  vertical or horizontal -for -UK6N UK10    (order  Number 1303281,1303282)

ZB10  vertical or horizontal -for -UK16              (order  Number 1303211,1303212)

ZB15 vertical or horizontal -for -UK35               (order  Number 1303215,1303216)

Note: Before you order it ,Please confirm ZB? (use in UK?)  vertical or horizontal  display

If you want (Custom Made special letter ) ,you can contact us

We can according to your requirements with digital 0-9 and digital combination, 99 or 1000
The letter A-Z and letter combinations
Or the number of letters 1a, 2b, 3C mixed, all in accordance with your request to do!!!

No obvious color difference!  All it is new to make, when you order!

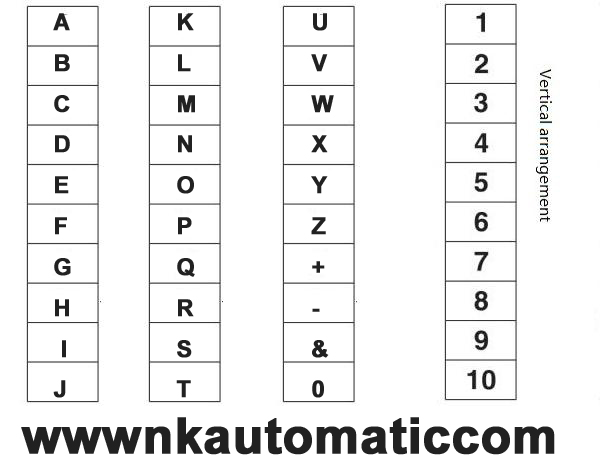

vertical display!

40 pieces=4 strips= 1 set



 Spot UK terminal ZB  plastic tags  ABCDEFGHIJKLMNOPQRSTUVWXYZ+-& 0123456789 10   label printing

UK   terminal Zack Marker Strip ZB

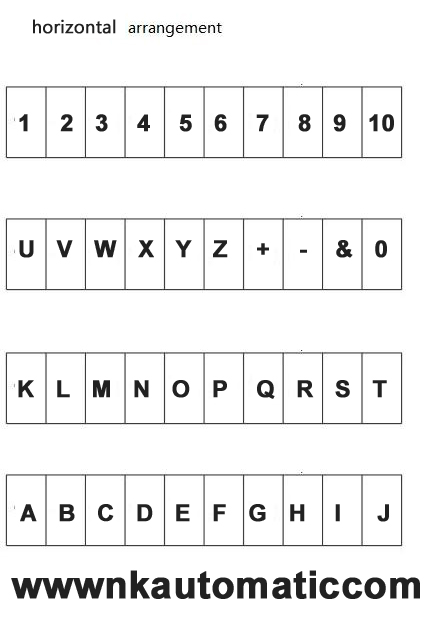

horizontal  display!

40 pieces=4 strips= 1 set



Spot UK terminal ZB plastic tags  A-Z mixed 0-9   label printing

UK terminal Zack Marker Strip

1a,2b,3c  XX YY ZZ  U V  W

 terminal signature ZB series special tips:
ZB4-UCT-TM4-UK1,5

Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter,

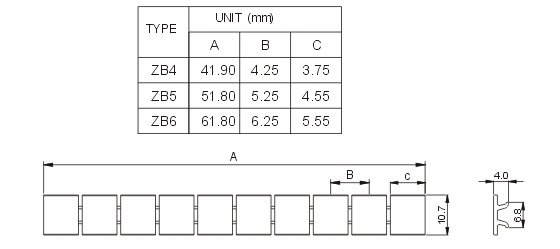

Mounting type: Snap into tall marker groove, for terminal block width: 4.2 mm, Lettering field: 4.2 x 10.5 mm



ZB5-UCT-TM5-UK2,5 UK3N

Zack marker strip, can be ordered: Strip, white, labeled according to customer specifications,

Mounting type: Snap into tall marker groove, for terminal block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm



ZB6-UCT-TM6-UK5N

Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100,

Mounting type: Snap into tall marker groove, for terminal block width: 6.6 mm, Lettering field: 6.6 x 10.5 mm



ZB8-UCT-TM8-UK6N UK10

Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: L1, L2, L3, N, PE, L1, L2, L3, N, PE,

Mounting type: Snap into tall marker groove, for terminal block width: 8.2 mm, Lettering field: 10.5 x 8.15 mm



ZB10-UCT-TM10-UK16

Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: U, V, W, N, GND, U, V, W, N, GND,

Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm



ZB15-UCT-TM15-UK35

Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter,

Mounting type: Snap into tall marker groove, for terminal block width: 15.2 mm, Lettering field: 10.5 x 15.1 mm



Different terminals with different width,
Take this link must note for any terminal,
By blow up!

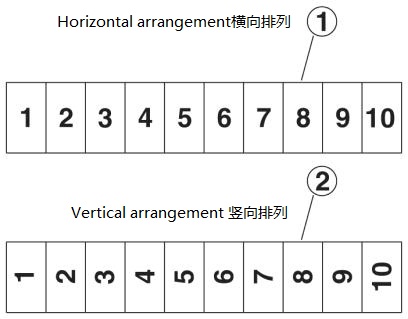

Guide for horizontal horizontal, 123456789
The rail vertical vertical display!
1
2
3
4
5
6
7
8
9

We can according to your requirements with digital 0-9 and digital combination, 99 or 1000
The letter A-Z and letter combinations
Or the number of letters 1a, 2b, 3C mixed, all in accordance with your request to do!!!

No obvious color difference!  All it is new to make, when you order!

1 piece=10 letter

10 piece=1 pack     length 16cm   width 16cm height 5cm

weight   0.1kg



端子标记条zb系列特别提示：
ZB4-UCT-TM4-UK1,5
ZB5-UCT-TM5-UK2,5 UK3N
ZB6-UCT-TM6-UK5N
ZB8-UCT-TM8-UK6N  UK10
ZB10-UCT-TM10-UK16
ZB15-UCT-TM15-UK35

不同端子的宽度不同，

拍下此链接一定要备注用于何端子，

横打竖打！

导轨横放为横打，123456789

导轨竖放为竖打！
1
2
3
4
5
6
7
8
9

我们可以按您的要求打出数字，0-9及数字组合99或1000

字母A-Z及字母组合

或数字字母1a,2b,3c的混合，一切按照您的要求来做！！！
