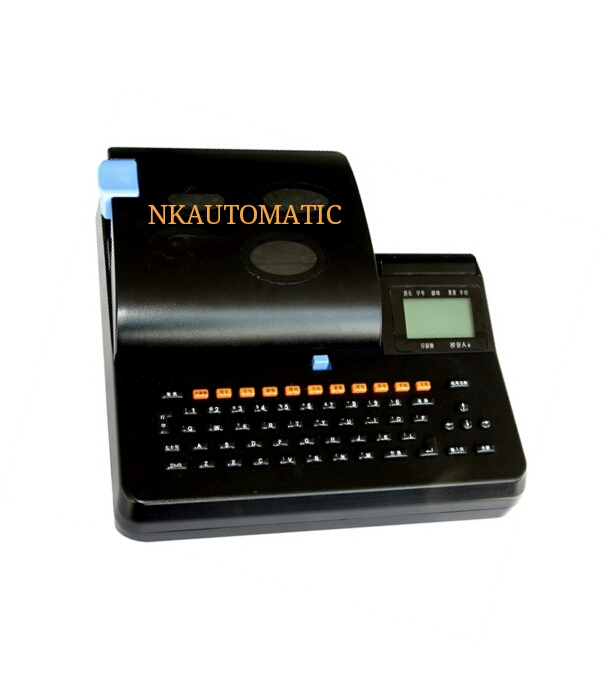

NS788E TUBE PRINTER FOR NUMBER LETTER SYMBOLS

Data

1.    The tube printer serves several purposes: print PVC tube, shrinkable tube and label;
2.    White backlight LCD display screen; the screen language can be customized from English or Chinese; the screen can display 2 lines content with each have 14 letters or symbols at the same time.

3.    Printing precision is 300dpi with thermal transfer print method;

4.    The printer can auto half-cutting or 2 lines not half-cutting, and can be adjusted the half cutting depth with Depth adjustment lever
5.    High printing speed 25mm/second in the normal situation;  35 sections  of 20mm length PRV tube or 40 sections of 20mm length label in the half cut situation;

6.    Large memory—the machine has a 1G memory and can store 128 files at the same time.

7.    With simple 64-key computer keyboard, the machine can be operated easily.
8.   High performance import ribbon make handwriting clear and not fade for a long time

9.    The machine is durable. With the wearing course be added on the printer’s head, the use life of which can be prolonged.

10.   High cost performance: the machine is good in quality and low in price, the consumable material is cost-effective in quantities, which reduce the customer’s total cost.
11  With a carrying case, the machine can readily be brought anywhere.



Function summary

1 The machine can print Φ2 to Φ8mm PVC, Shrinkable tube and width 6/ 9 /12mm label
2 The machine have powerful function human-based design and white backlight LCD display screen, all those make it convenient to inquire.
3 Auto half cut and manual full cut
4 The machine can input 1000 characters continuously and simultaneously, and can print high efficiency in quantities;
5 Can set each paragraph independently;
6 Six type sizes of character is offered to select, the letter is clear and artistic, and the deepness of print can be seted too.
7 You can enframe or underline letter, and can set the alignment method and array direction;

8 Repeatable and can put in serial-number at will which can save a lot of input time for the user. 9  Several special symbols can select.
10 The half-cutting knife’s depth can be adjusted freely to prevent be damaged prematurely;11 The machine can print double lines;
12 With cursor printing, you can set the print range freely.
13 The machine has overlarge memory, which can store 128 files at the same time.

Printing method	thermal transfer
Printing precision	300dpi
Printing material	print PVC tube(Φ2 to Φ8), Heat shrinkable tube (Φ2 to Φ12)and label(6,9,12mm)
Printing speed	25mm/s
mm/minute by half-cutting	35 pvc tube of 20mm
LED	White backlight,  2 lines display
Printting letter	character letter number and symbols
Type of character	six
Keyboard	64-key computer keyboard
memory	1 G memory,128 files as maximum
Cutting method	Half-cut, manual cut
ribbon	Black and white
Power	DC 12V 3.5A
size	length×width×high 290×270×110mm
weight	2.5kg
Operating temperature	15℃ —35 ℃



Consumable products(Optional)

Consumable products		Type	name
Ribbon	Black	12mmx80m/box,Black	NR80B
	White	12mmx80m/Box,white	NR80W
Lable	6mmWhiteLable	6mmx8m/Box,white	NL06W
	6mmyellowLable	6mmx8m/Box,yellow	NL06Y
	9mmwhiteLable	9mmx8m/Box,white	NL09W
	9mmyellowLable	9mmx8m/Box,yellow	NL09Y
	12mmwhiteLable	12mmx8m/Box,white	NL12W
	12mmyellowLable	12mmx8m/Box,yellow	NL12Y
Tube	PVC tube	Φ2-Φ10
	Shrinkable tube	Φ2-Φ16
Half-cutting knife		NK01
