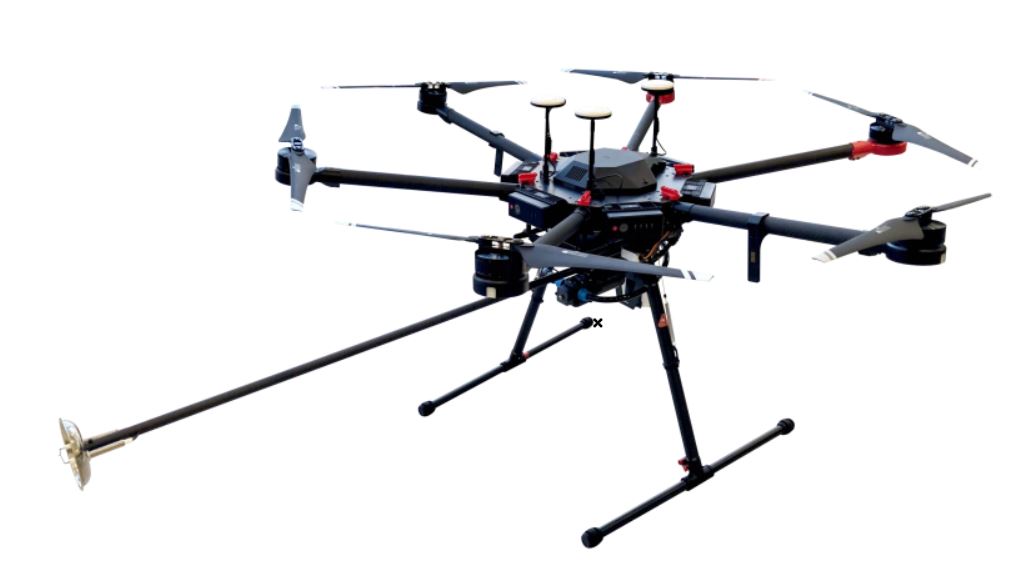

NKPHM600 UAV fire-breathing device Large capacity, long distance and light weight

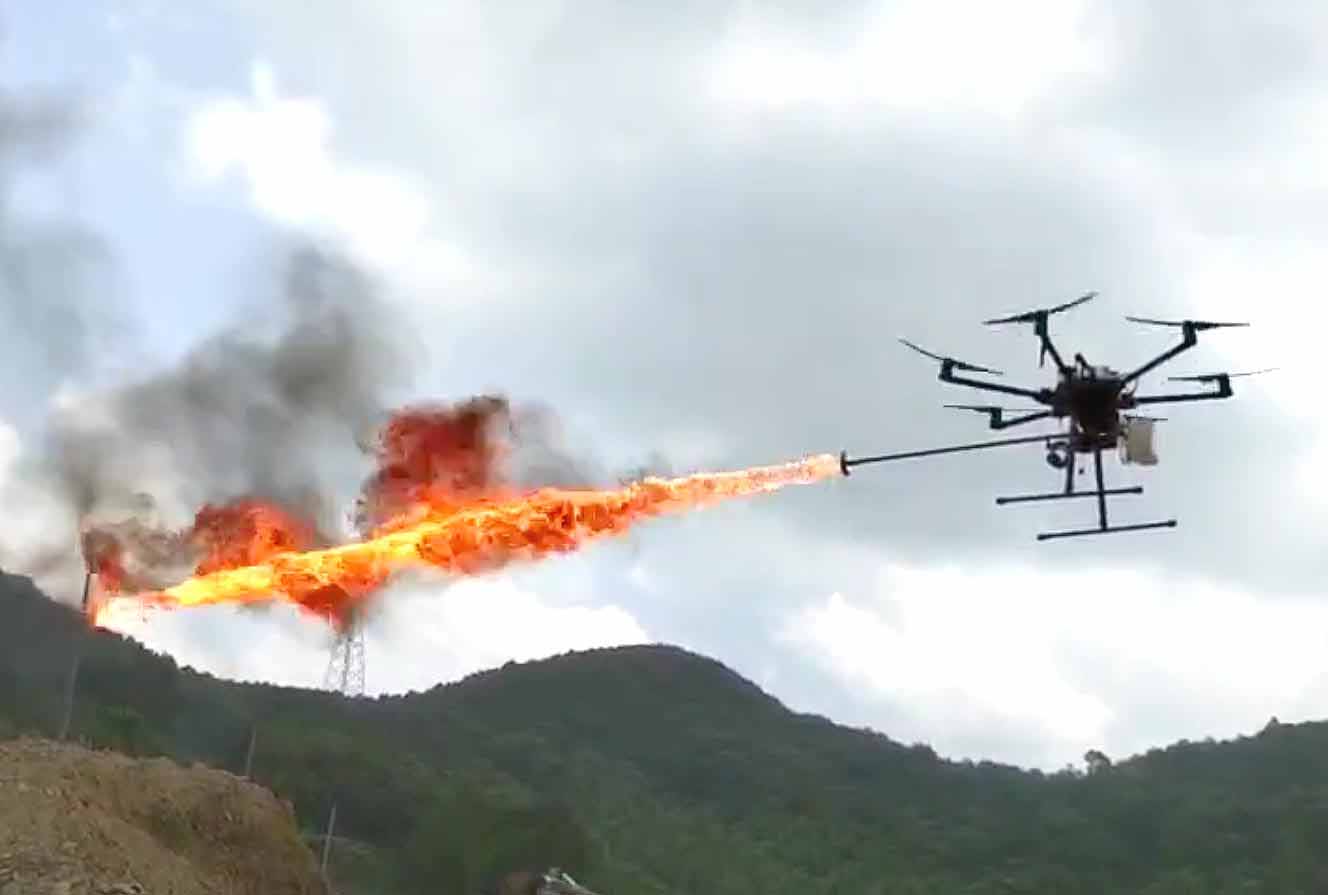

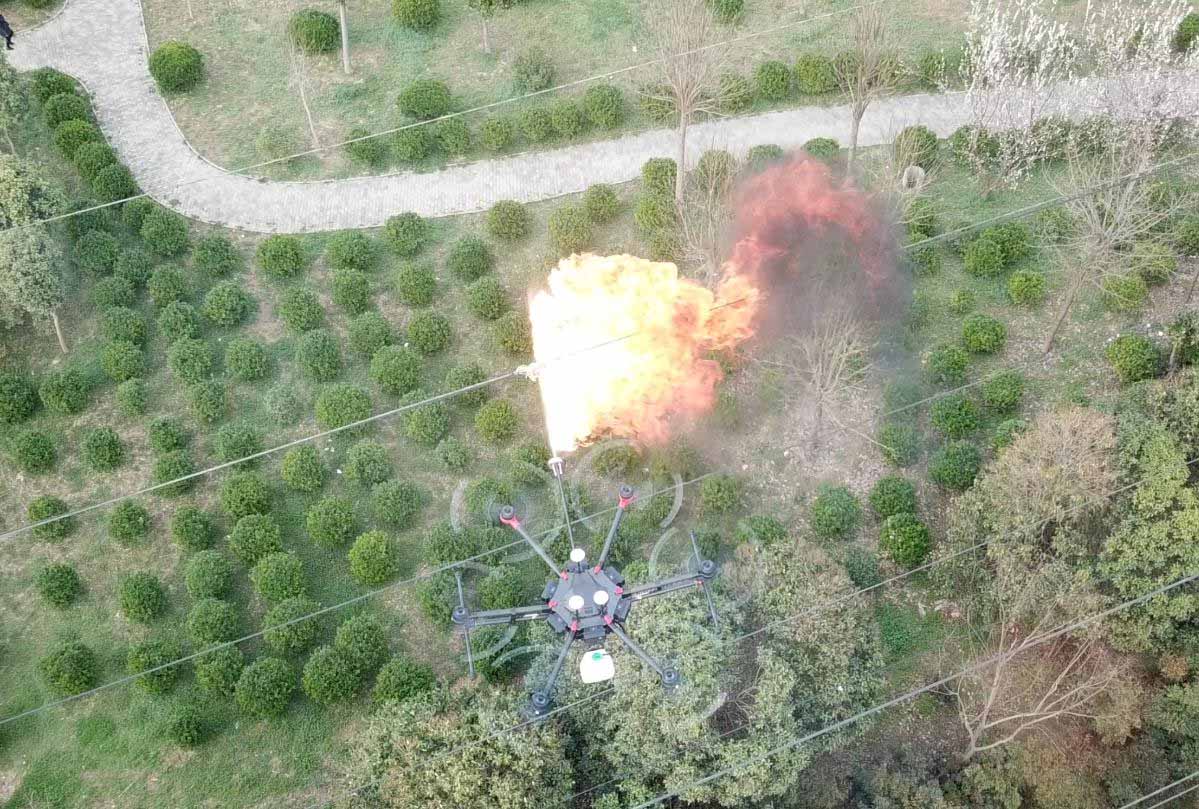

UAV fire-breathing device to clear the transmission and distribution line floating material NKPHM600
product description
This product has changed the past, relying on labor and time-consuming obstacles
Improve the mobility of the obstacles and achieve high altitude electrification
Industry, solves the trouble of power-off operations in the past, and effectively saves
Barrier operation cost, reduce work intensity and difficulty, greatly improve
Work efficiency.

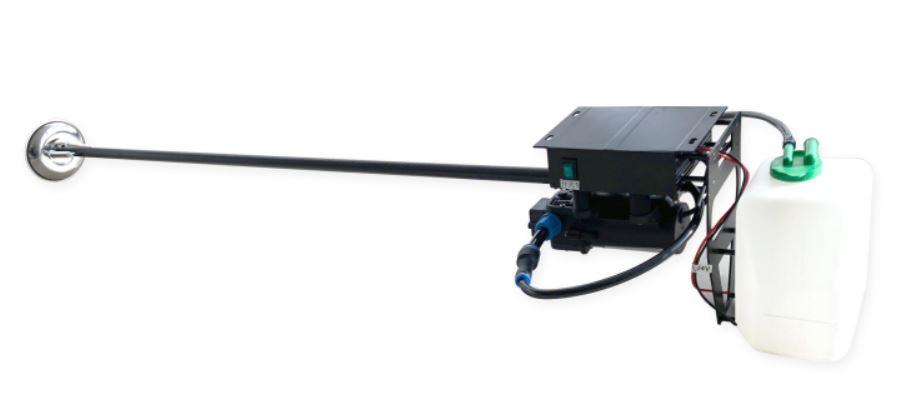

High performance oil pump
Equipped with high-performance and high-quality miniature diaphragm oil pump, the part of the pump is made of membrane
Sheet structure, except for the valve spring, in contact with the liquid
For plastics, the possibility of sparks in the pump is eliminated, the motor department
Separate structure and external air to prevent motor spark
The dangers brought about by danger.
High-performance motor with 6 liters of ultra-high flow per minute, improving fire-breathing
Distance, the maximum fire distance can reach 3-5 meters.

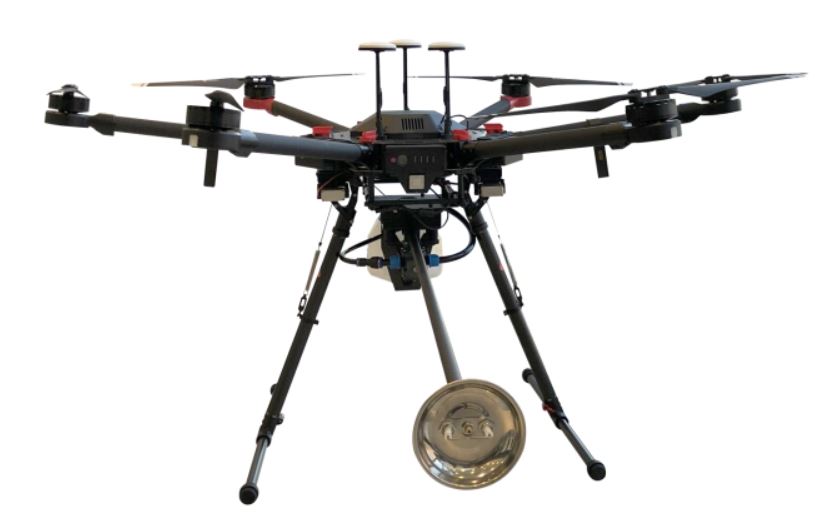

Ignition system
High-performance high-pressure pulse ignition system to ensure the phenomenon of fire breakage
Safety of work, carbon fiber aluminum alloy lightweight construction
High strength and aesthetics, lightweight fuel tank maximum
It can reach 1 liter in volume and can be equipped with 4~8 axis multi-rotor.
The aircraft has no interference

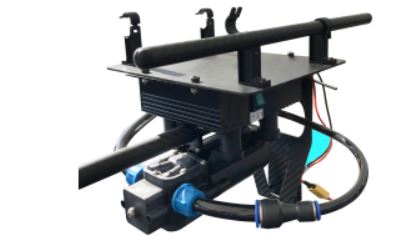

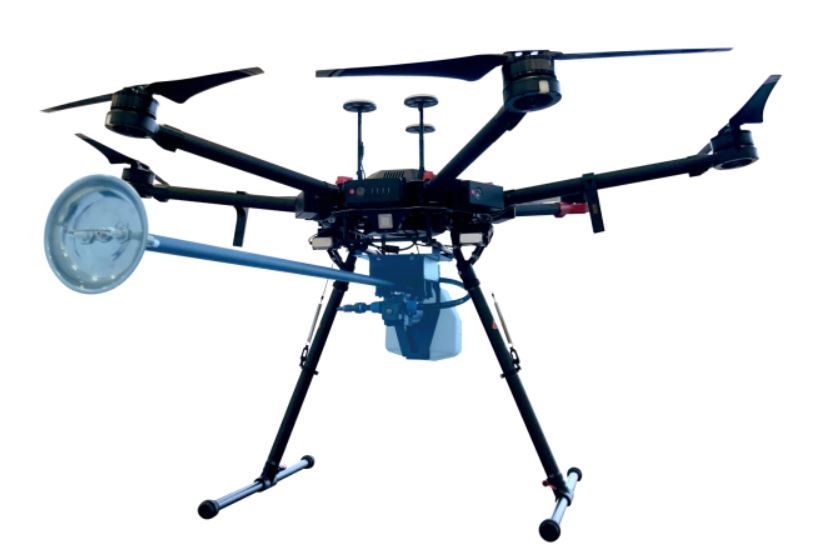

Quick release design
This module is equipped with quick-change structural parts and four mounted on the carrier board.
Reversible structural parts, fastened by crimping and screw fastening
Quickly replace the mounting device for 2 minutes.

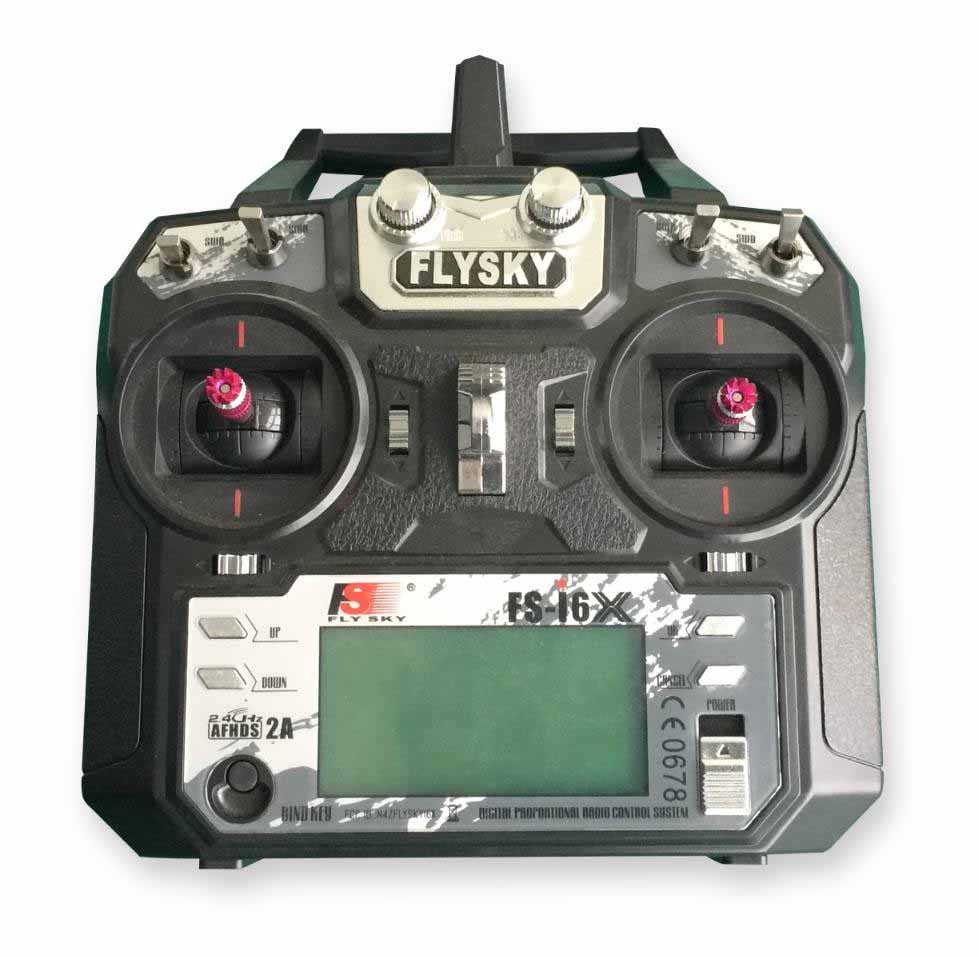

remote control
Equipped with a separate remote control, the unobstructed remote control distance is 1.5 kilometers.
Throttle rocker controls ignition and fuel injection, and the remote control power supply uses 4 sections.
AA5 dry battery can be used.
Technical Parameters
Product size 116mm × 14mm × 18mm (27mm at the widest part of the tubing)
Rated voltage DC 24V
Rated power 75W
Maximum flow 6L
Spray distance 3-5M
Spray oil 90# and above
Use environment -30~40°C
Power interface XT30
Maximum volume 1L
Ignition form high voltage pulse ignition
The overall weight is about 1.5Kg

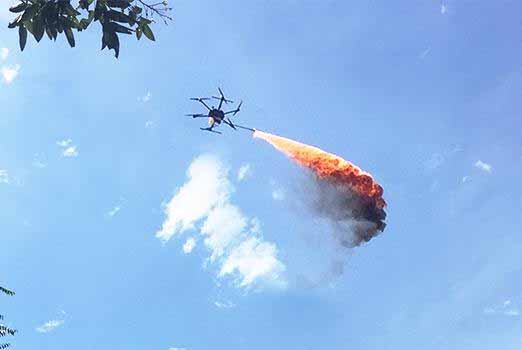

The super-large flow of 6 liters per minute increases the distance of the fire, and the maximum fire-breathing distance can reach 3-5 meters.
