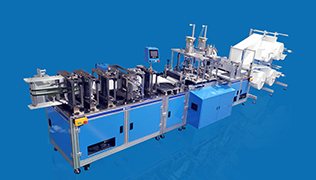

Automatic N95 respirator mask machine production line

Автоматическая линия по производству респираторной маски N95

Línea de producción de máquina de mascarilla de respiración N95 automática

Linea di produzione automatica della maschera per respiratore N95

Otomatik N95 solunum maskesi makine üretim hattı

Equipment introduction

This production line realizes the fully automated production of flat respirator masks, mainly including coil feeding, folding and pressing, nose bridge feeding,respirator mask forming, respirator mask cutting, ear strap feeding and welding, finished Cutting and other processes complete the entire production process from coil raw materials to respirator masks. The respirator masks produced are comfortable to wear, have no sense of pressure, and have a good filtering effect. They fit the human face and can be used in medical, electronics, mining, and construction industries.

Equipment characteristics

Inverter stepless speed regulation, one-time welding molding, anti-wear, equipped with power increaser in the chassis;

Integrated production, only need one person to operate, frequency conversion speed regulation;

High-speed production, more than 70,000 respirator masks per day (24h production);

Production of many different products, replacement of abrasive tools can produce products of different shapes and specifications.

Basic parameters

Connecting part machine size	4500 (L) X3300 (W) X2100 (H) MM
Overall size	4500 (L) X3300 (W) X2100 (H) MM
Electric Pressure	AC220V, 50HZ / 60HZ, 1P
Production volume	3 0-40 tablets / minute
Consumption of electricity	8.5KW

N95 respirator Machine production line Equipment Characteristics

Intelligent detection, reducing error rate, stable performance and easy operation

High-speed production, more than 40,000 respirators per day (24H production)

Integrated production, only one person to operate, frequency conversion speed regulation

Production of a variety of different products, replacement of abrasive tools can produce products of different shapes and specifications

Frequency converter stepless speed regulation, one-time welding and forming, anti-wear, and power increaser in the chassis

More accurate feed positioning, which can minimize the width of raw materials and save costs

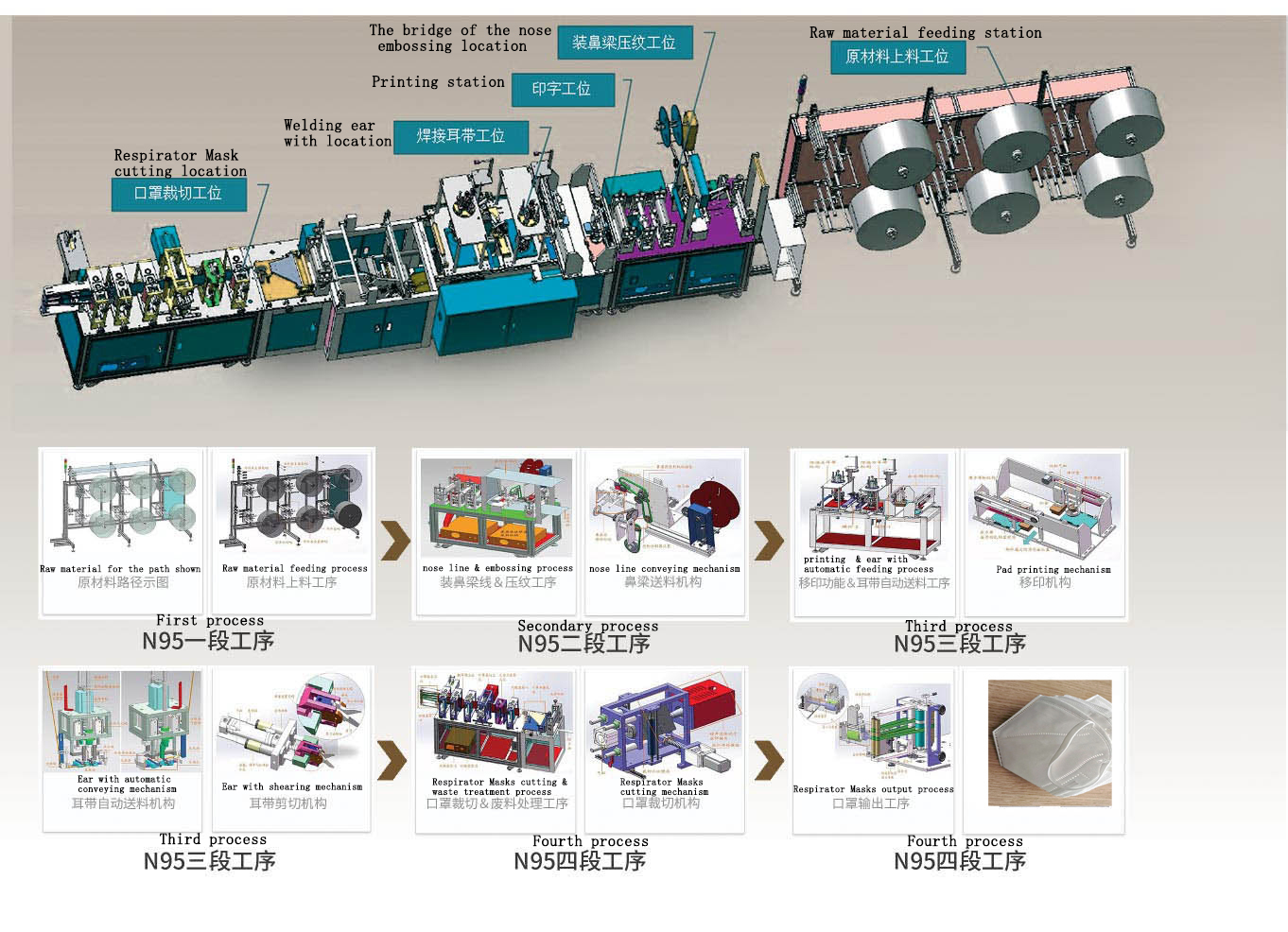

N95 respirator machine production process

Automatic N95 respirator machine power and epidemic prevention disease resistance

Through technical innovation, the 3 d simulation software simulation, further study of the face mask machine from feeding, make a piece of the ear, welding forming, to the packaging of each production process.

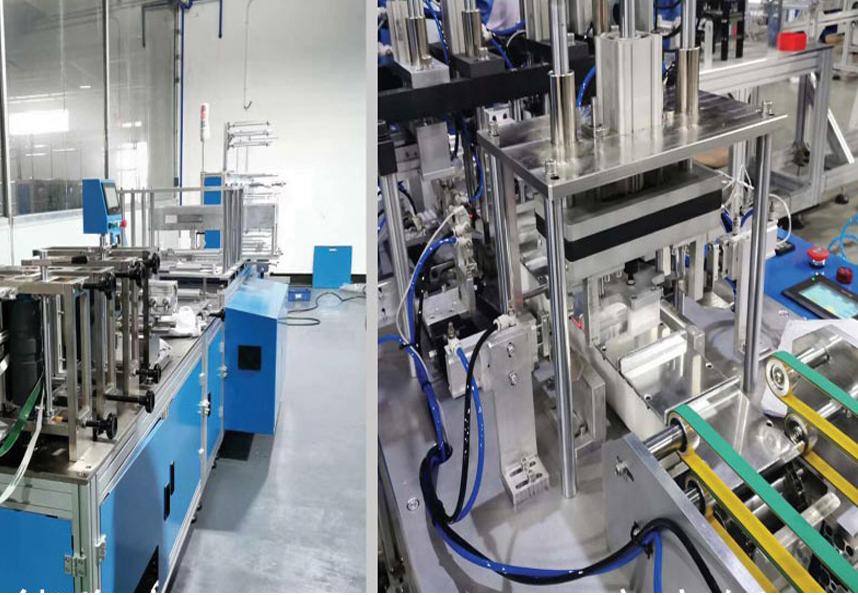

N95 production process: the N95 respirator machine production line overall view

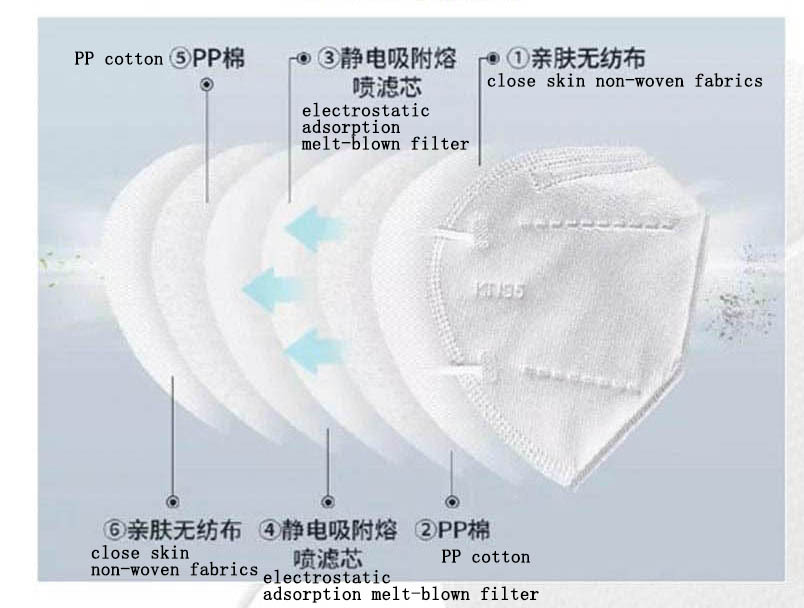

N95 respirator decomposition

1 close skin non-woven fabrics

2 PP cotton

3 electrostatic adsorption melt-blown filter

4 electrostatic adsorption melt-blown filter

5 PP cotton

6 close skin non-woven

Type N95 respirator aerodynamic diameter 0.075 um ± 0.02 um particle filtering efficiency of 95% or more.

Air bacterial and fungal spores of aerodynamic diameter of main changes between 0.7-10 um, also an N95 respirator protection range. Therefore type N95 mask can be used to some particulate respirators, such as grinding, cleaning and processing minerals, in the process of flour and some other materials such as dust, also suitable for fluid produced by spraying or non oily does not produce harmful volatile gas particles. Can effectively filter and purify the abnormal odor inhaled (with the exception of toxic gases), and help reduce some microbial particles can be inhaled, such as mold, bacillus anthracis, n/med tuberculosis bacili, etc.) of exposure levels.

Equipment is introduced

Equipment; >

The production line the fully automated production of planar masks, mainly including coil feeding, folding, pressing, the bridge of the nose bar feeding, masks, masks and the ears cut off

Take and welding, finished product blanking process, from coil raw materials to mask the whole production process. Production of mask have to wear comfortable, no pressure forced feeling, mask filtering effect is good, fit people's face, can be used in medical, electronics, mining, construction and other industries.

Equipment features

The Overview of the Device over >

Inverter stepless speed regulation, one-time welding forming, resistance to abrasion, configuration power amplifier gain inside the case; The integration of production, only one person operation, frequency control of motor speed;

High-speed production, nissan more than 40000 only masks (24 h);

Production of a variety of different products, change the mold to produce different specifications of the products in different shapes.

The basic parameters

The Main Parameters >

Connecting part machine size	4500 (L) X3300 (W) X2100 (H) MM
Overall size	4500 (L) X3300 (W) X2100 (H) MM
Electric Pressure	AC220V, 50HZ / 60HZ, 1P
Production volume	3 0-40 tablets / minute
Consumption of electricity	8.5KW
