316L stainless steel Serrated Washer & Slotted Nut

 316L stainless steel Serrated Washer & Slotted Nut

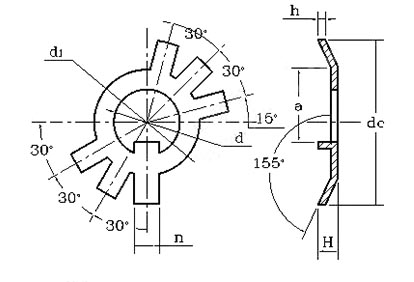

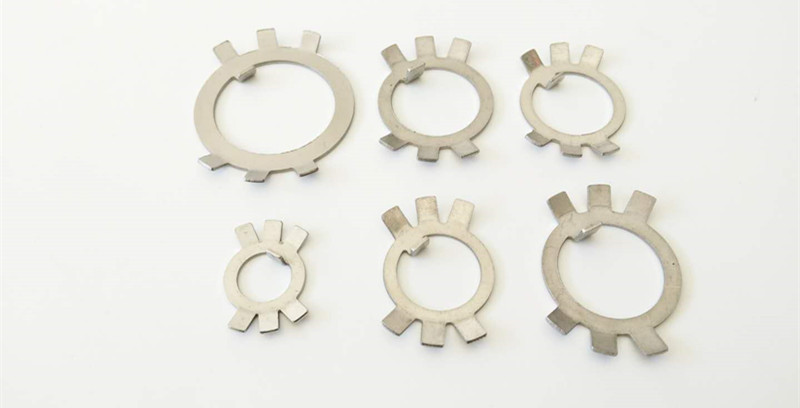

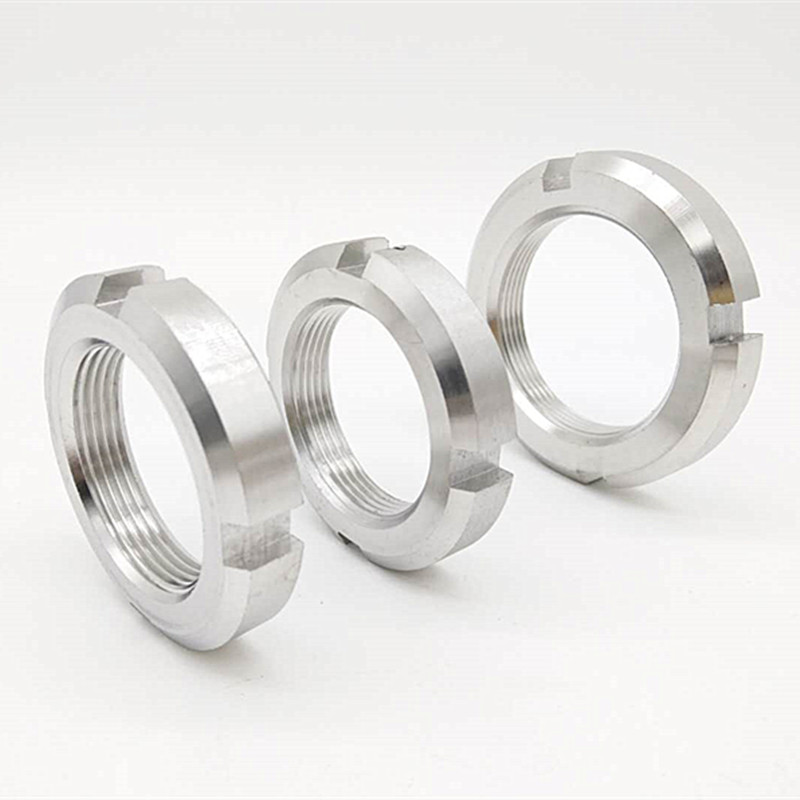

316L stainless steel （Prevent back/Prevent loose） Serrated  Washer  & Slotted Nut

unit  mm
specifications d dc d1 h H n a  kg /1000 items
M10 10.5 25 16 1 3 3.8 8 1.91
M12 12.5 28 19 9 2.3
M14 14.5 32 20 11 2.5
M16 16.5 34 22 4.8 13 2.99
M18 18.5 35 24 4 15 3.04
M20 20.5 38 27 1 17 3.5
M22 22.5 42 30 19 4.14
M24 24.5 45 34 21 5.01
M25 25.5 45 34 56 22 4.7
M27 27.5 48 37 24 5.4
M30 30.5 52 40 27 5.87
M33 33.5 56 43 1.5 5.7 30 10.01
M35 35.5 32 8.75
M36 36.5 60 46 33 10.76
M39 39.5 62 49 36 11.06
M40 40.5 37 10.33
M42 42.5 66 53 39 12.55
M45 45.5 72 59 42 16.3
M48 48.5 76 61 7.7 45 17.68
M50 50.5 47 15.86
M52 52.5 82 67 49 21.12
M55 56 52 17.67
M56 57 90 74 53 26
M60 61 94 79 57 28.4

specifications d dc d1 h H n a  kg /1000 items
M64 65 100 84 1.5 6 7.7 61 31.55
M65 66 62 30.35
M68 69 105 88 9.6 65 34.69
M72 73 110 93 7 69 37.9
M75 76 71 33.9
M76 77 115 98 72 41.27
M80 81 120 103 76 44.7
M85 86 125 108 81 46.72
M90 91 130 112 2 11.6 86 64.82
M95 96 135 117 91 67.4
M100 101 140 122 96 69.97
M105 106 145 127 101 72.54
M110 111 156 135 13.5 106 89.08
M115 116 160 140 111 91.33
M120 121 166 145 116 94.96
M125 126 170 150 121 97.21
M130 131 176 155 7 13.5 126 100.8
M140 141 186 165 136 106.7
M150 151 206 180 2.5 15.5 146 175.9
M160 161 216 190 g 156 185.1
M170 171 226 200 166 194
M180 181 236 210 176 202.9
M190 191 246 220 186 211.7
M200 201 256 230 196 220.6

specifications screw thread M*P(thread  pitch)



unit  mm
specifications screw thread M*P(thread  pitch) dk m n t  kg /1000 items
max min max min
M10*1 22 8 4.3 4 2.6 2 16.82
M12*1.25 25 21.58
M14*1.5 28 26.82
M16*1.5 30 5.3 5 3.1 2.5 28.44
M18*1.5 32 31.19
M20*1.5 35 37.31
M22*1.5 38 10 54.91
M24*1.5 42 68.88
M25*1.5 42 68.88
M27*1.5 45 75.49
M30*1.5 48 82.11
M33*1.5 52 6.3 6 3.6 3 93.32
M35*1.5 52 84.99
M36*1.5 55 100.3
M39*1.5 58 107.3
M40*1.5 58
M42*1.5 62 109.5
M45*1.5 68 121.8
153.6
M48*1.5 72 12 8.36 8 4.25 3.5 201.2
M50*1.5 72 186.8
M52*1.5 78 238
M55*1.5 78 214.4
M56*2 85
M60*2 90 290.1
320.3


specifications screw thread M*P(thread  pitch) dk m n t  kg /1000 items
max min max min
M64*2 95 12 8.36 8 4.25 3.5 351.9
M65*2 95 342.4
M68*2 100 10.36 10 4.75 4 380.2
M72*2 105 15 518
M75*2 105 477.5
M76*2 110 562.4
M80*2 115 608.4
M85*2 120 640.6
M90*2 125 18 12.43 12 5.75 5 796.1
M95*2 130 834.7
M100*2 135 873.3
M105*2 140 895
M110*2 150 14.43 14 6.75 6 1076
M115*2 155 22 1369
1423
M120*2 160 1477
M125*2 165 1531
M130*2 170 1937
M140*2 180 26
M150*2 200 16.43 16 7.9 7 2651
M160*3 210 2810
M170*3 220 2970
3610
M180*3 230 30 3794
M190*3 240 3978
M200*3 250
