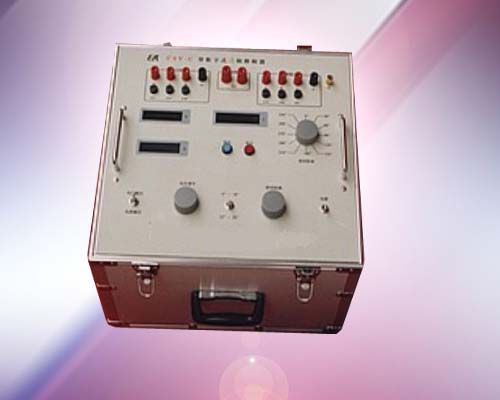

ACSY-C integrated phase shifter
The phase shifter by combining phase-shifting technique and digital transformer measurement technology, phase adjustment of high precision, accurate and visual reading. Voltage, current adjustable output, good output waveform, reliable operation, convenient operation. To meet the high accuracy measurement calibration of single-phase and three-phase AC power, phase meter. Can also be used for the verification device for watt hour meter.
Technical parameters:
* the input voltage of the three-phase four wire: 3 * 380V, 50HZ
The output voltage of the three-phase four wire: * 3 * (0~380V) / (~220 0) V three and a half digital display, accuracy class 1
* output current: select the current output can be the output current of AC0~20A, three and a half digital display, accuracy class 1
* the maximum output capacity: 1000VA phase shift range: error: plus or minus 3.6 degrees 0~360 degrees
* voltage fluctuation: coarse <1.5% and fine <2.0%
* waveform distortion: distortion of the output < input waveform distortion
* temperature: <60 degrees
Insulation resistance: >2M *
* the withstand voltage test: 1.0KV/min
* use of the environment: temperature: the temperature of -10 DEG ~+40 DEG humidity: <85%RH

综合移相器ACSY-C型

本移相器将变压器移相技术与数字测量技术有机结合，移相调节精度高，读数准确直观。电压、电流输出可调，输出波形好、运行可靠，操作方便。能满足较高精度单相及三相交流功率、相位等仪表的测量校验。也能用于电度表的检定装置之中。

技术参数:

* 输入电压：三相四线3×380V，50HZ
* 输出电压：三相四线3×(0~380V)/(0 ~220)V 三位半数字显示，精度1.0级
* 输出电流：选择电流输出功能可输出AC0~20A 电流、三位半数字显示、精度1.0级
* 最大输出容量：1000VA 移相范围：0~360°误差：±3.6°
* 电压波动：粗调<1.5%，细调<2.0%
* 波形失真：输出波形失真度<输入波形失真度
* 温升：<60°
* 绝缘电阻：>2MΩ
* 耐压试验：1.0KV/min
* 使用环境：温度：温-10℃~+40℃ 湿度：<85%RH
