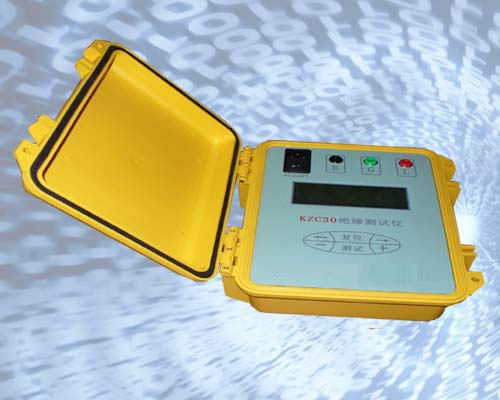

Digital insulation resistance tester AKZC30
One, the function and the characteristic of
1, good load characteristic. The instrument has an internal stable DC 500V / 1000V / 2500V / 5000V high voltage generator.
2, the measurement is not subject to zero. The use of simple, convenient.
3, timing accuracy. At the same time generate high voltage and measuring instruments in the start time, so read 15S and 60S, 10min insulation resistance value is accurate.
4, large capacity (large short-circuit current). The absorption current and charging current decreased rapidly, the measured value of insulation resistance and reliable.
5, strong anti-interference ability. The instrument adopts SCM as the core, to eliminate the error caused by the magnetic coupling; another instrument internal take filter circuit, eliminates the charged device and the measured capacitance coupling between devices. Therefore, the measurement accuracy.
6, improve safety measures. Automatic stop high-voltage output after the end of the measurement, and long beep take notice.
Two, the technical conditions and indexes
1, the power supply voltage: AC220V + 10%
2, the output voltage: DC500V / 1000V / 2500V / 5000V + 10%
3, the short circuit current: >2mA
4, the range: l00K Omega Omega -100000M
5, the environment temperature: -10 degrees ~+40 degrees
6, the humidity of the environment: less than 75%RH
7, the measurement accuracy: 100K Omega Omega -3000M (500V) 5% 500K Omega Omega -5000M (1000V) 5% 3M Omega Omega -50000M (2500V) 5% 10M Omega Omega -100000M (5000V) 5%
8, voltage ripple: test voltage ripple content of not more than 3%
9, measurement methods: real time measurement, from 15 seconds to every 5 seconds a measurement display; automatic calculation of absorption ratio, polarization index.
10, display mode: 6 1/2 liquid crystal display measured resistance values and absorption ratio, polarization index. Automatic display year, month, day, hour, minute and second.
11, insulation: insulation resistance between the instrument body and the AC power supply primary lead value is more than 200000 M.

数字式绝缘电阻测试仪AKZC30

一、功能及特点

1、负载特性好。本仪器内部有一个稳定的直流500V／1000V／2500V／5000V高压发生器。
2、测量时不须调零。使用简单、方便。
3、计时准确。仪器在产生高压并进行测量的同时开始计时，所以读取的15S和60S、10min绝缘电阻值准确。
4、容量大（短路电流大）。使吸收电流和充电电流迅速减少，测得可靠的绝缘电阻值。
5、抗干扰能力强。由于仪器采用单片机为核心，消除了磁耦合引起的误差；再有仪器内部采取滤波电路，消除了带电设备和被测设备之间的电容耦合。因而测量比较准确。
6、完善的安全措施。测量结束后自动停止高压输出，并长时间蜂鸣提起注意。

 二、技术条件及指标

1、电源电压：AC220V±10％
2、输出电压：DC500V／1000V／2500V／5000V±10％
3、短路电流：>2mA
4、量 程：l00KΩ-100000MΩ
5、环境温度：-10℃~+40℃
6、环境湿度：≤75％RH
7、测量精度：100KΩ-3000MΩ(500V)5％ 500KΩ-5000MΩ(1000V)5％ 3MΩ-50000M Ω(2500V)5％ 10MΩ-100000M Ω(5000V)5％
8、电压纹波：测试电压纹波含量不大于3％
9、测量方式：实时测量，从15秒开始每5秒进行一次测量显示；自动计算吸收比、极化指数。
10、显示方式：6 1/2位液晶显示被测电阻值、吸收比、极化指数。自动显示年、月、日、时、分、秒。
11、 绝缘：仪表本体与交流电源初级引线之间的绝缘电阻值≥20万M Ω。
