Three in one lightning surge protector ABY-SV video power control
ABY-SV series video surveillance camera surge protector

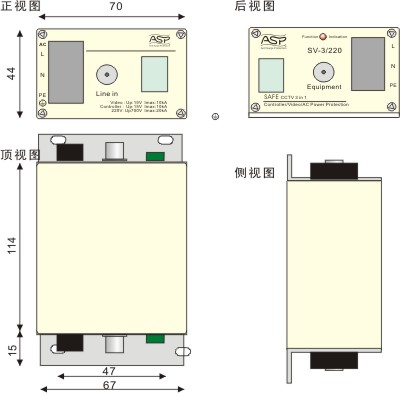

Naming rules applicable | product performance parameters | product range | product size | installation diagram 930

三合一防雷器视频电源控制电涌保护器ABY-SV

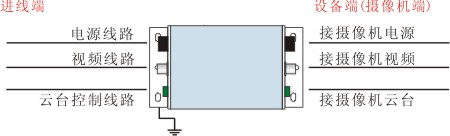

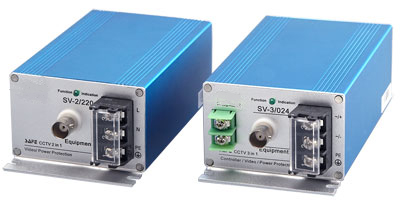

SV series of multifunctional CCTV lightning protection device is designed according to the specific application of IEC lightning protection requirements and CCTV surveillance camera, suitable for AC / DC power supply, with (or not have) Yuntai surveillance camera lightning protection control port, multi-functional integration design, reduce the cost and difficulty of installation, protection and reduce the occupied space of installation and principle to maximize the use of equipotential protection that greatly improved protection effect. All the protection function of SV series according to the maximum flow capacity of 10kA design, and the use of linkage type protection class two series, can make the comprehensive protection of CCTV monitoring device. SV-3/220 3 1 CCTV lightning protection device: protection of 220VAC AC power supply, monitor video / audio signal / tilt control circuit SV-2/220 2 1 CCTV lightning protection device: protection of 220VAC AC power supply, monitor video / audio signal SV-3/024 3 1 CCTV lightning protection device: the protection of 6-24V DC power supply, monitor video / audio signal / tilt control circuit SV-2/024 2 1 CCTV lightning protection device: the protection of 6-24V DC power supply, monitor video / audio signal Multifunctional surge protection The discharge current 10kA 2 1 or 3 1 Design Low loss High speed reaction (10-12seconds) Power lightning protection failure of LED instructions          SV系列多功能CCTV防雷器是依据IEC防雷要求和CCTV监视摄像机的具体应用而设计，适用于交/直流 供电、具备（或不具备）云台控制端口的监视摄像机防雷保护，多功能一体化设计，降低了保护成本 和安装难度、减少安装的占用空间并最大限度的利用等电位保护原理使保护效果大为改善。 　　SV 系列的所有保护功能均按 最大通流容量10kA设计，并采用两级串联式联动式保护，可以充分 全面保护CCTV监视设备。 　　SV-3/220 3合1 CCTV防雷器： 保护220VAC交流供电、监视器视频/音频信号/云台控制线路 　　SV-2/220 2合1 CCTV防雷器： 保护220VAC交流供电、监视器视频/音频信号 　　SV-3/024 3合1 CCTV防雷器： 保护6-24V直流供电、监视器视频/音频信号/云台控制线路 　　SV-2/024 2合1 CCTV防雷器： 保护6-24V直流供电、监视器视频/音频信号 　　Through the European CE certification.  通过欧洲CE认证。 多功能浪涌过电压保护     放电电流10kA     2合1 或 3合1 设计 低损耗 高速反应（10-12秒） 电源防雷失效LED指示 . Naming rules  命名规则 . Product performance parameters  产品性能参数 Model型号 SV-3/220 SV-2/220 SV-3/024 SV-2/024 Function功能   Video / power / control 视频/电源/控制 Video / power 视频/电源 Video / power / control视频/电源/控制 Video / power / 视频/电源 Failure indication失效指示 When the panel (LINE IN the Function Indication) the indication lamp is extinguished, that has lost the function of lightning protection.  当面板(LINE IN 面的Function Indication)指示灯熄灭时，表示已失去防雷功能。 Power supply protection parameters   电源保护参数 Maximum continuous operating voltage 最大持续运行电压 Uc 320V 40V Limit voltage限制电压 700V 75V Maximum discharge current最大放电电流 Imax(8/20μs) 10kA 10kA Video / audio protection parameters  视频/音频保护参数 Maximum continuous operating voltage 最大持续运行电压 Uc 8V Limit voltage限制电压 15V Maximum discharge current最大放电电流       Imax(8/20μs)   10kA The maximum transmission rate 最大传输速率 10MHz Insertion Loss插入损耗 <0.2dB PTZ control parameter signal system protection (only SV-3 with) 云台控制信号系统保护参数(仅SV-3具备) Maximum continuous operating voltage         最大持续运行电压 Uc   8V - 8V - Limit voltage限制电压       15V   Maximum discharge current最大放电电流     Imax(8/20μs)   10kA - 10kA - The maximum transmission rate       最大传输速率   10MHz Insertion Loss插入损耗       <0.2dB .The scope of products With PTZ camera protection (SV-3/***) Protective belt not PTZ camera (SV-2/***) Other similar signal processing equipment protection 产品适用范围 带云台摄像机防护(SV-3/***) 不带云台摄像机防护(SV-2/***) 其它类似信号处理设备防护 . Size 产品尺寸 . Schematic diagram of the installation   安装示意图
